10 Watt 3 Inch Dimmable LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 36°/60° wide beam angle
  • 90-95mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor36 degree beam angleled beam angle 60 degreeip40 rating

APPLICATION AREAS

supermarket led lightingclassroom lightingretail store lighting designoffice lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

3 inch 10w photometric data

DIMENSION

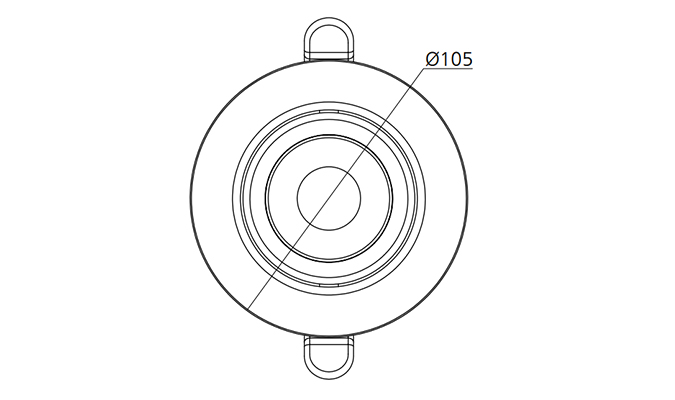

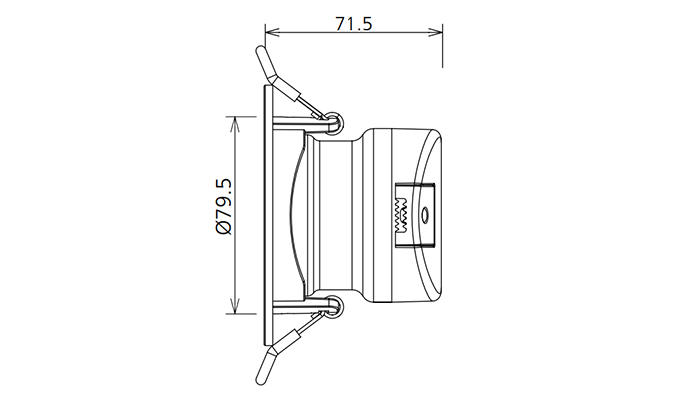

10w Down light 90mm cut out sizesDimensions 95mm cut out

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC230V ≥0.9 880 36°/60° 3000K 40000h ≥80 Yes Ø105*71.5mm cutout 90-95mm
10W AC230V ≥0.9 920 36°/60° 4000K 40000h ≥80 Yes Ø105*71.5mm cutout 90-95mm
10W AC230V ≥0.9 930 36°/60° 5000K 40000h ≥80 Yes Ø105*71.5mm cutout 90-95mm
10W AC230V ≥0.9 950 36°/60° 5700K 40000h ≥80 Yes Ø105*71.5mm cutout 90-95mm
