13W 100MM Cut Out Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim, 0-10V dim, DALI dim
  • 90°wide beam angle
  • 95-100mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip20 rating easy installation

APPLICATION AREAS

office lightingclassroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

90°wide beam angle led downlight

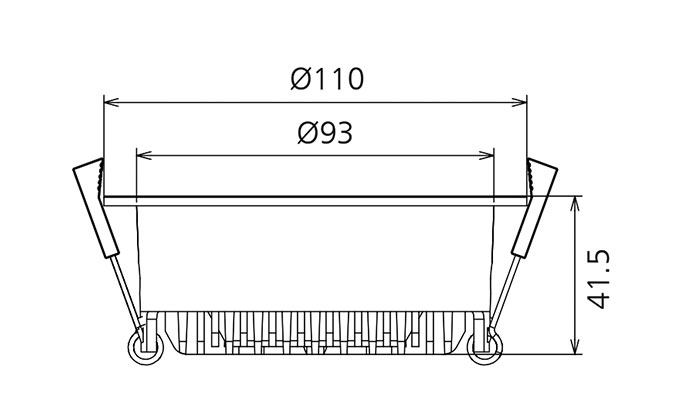

DIMENSION

13w adjustable recessed downlight100mm cut out led downlight

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
13W AC100-240V ≥0.9 760 90° 3000K 40000h ≥80 No Ø110*41.5mm cutout 95-100mm
13W AC100-240V ≥0.9 790 90° 4000K 40000h ≥80 No Ø110*41.5mm cutout 95-100mm
13W AC100-240V ≥0.9 900 90° 5000K 40000h ≥80 No Ø110*41.5mm cutout 95-100mm
13W AC100-240V ≥0.9 800 90° 5700K 40000h ≥80 No Ø110*41.5mm cutout 95-100mm
13W AC230V ≥0.9 700 90° 3000K 40000h ≥80 Yes Ø110*41.5mm cutout 95-100mm
13W AC230V ≥0.9 730 90° 4000K 40000h ≥80 Yes Ø110*41.5mm cutout 95-100mm
13W AC230V ≥0.9 830 90° 5000K 40000h ≥80 Yes Ø110*41.5mm cutout 95-100mm
13W AC230V ≥0.9 740 90° 5700K 40000h ≥80 Yes Ø110*41.5mm cutout 95-100mm
