13W 3000K CCT Round Surface Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 90° wide beam angle
  • 90mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofeasy installation

APPLICATION AREAS

bathroomrestaurant lightingclassroom lightingsupermarket led lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

13w polar luminous intensity graph

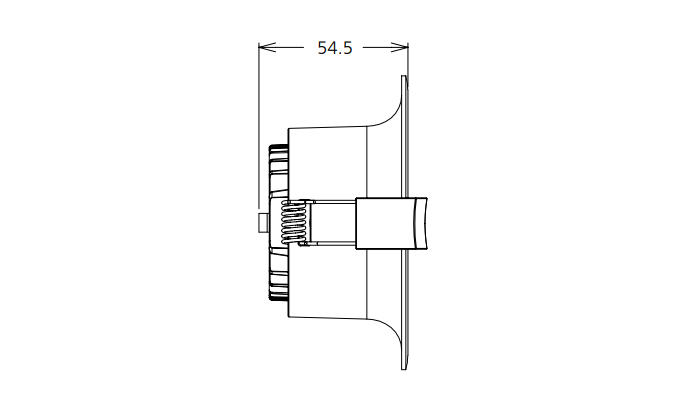

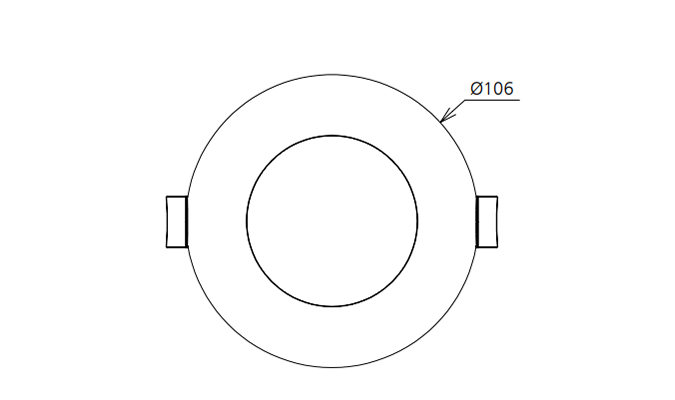

DIMENSION

13 watts led downlight sizes3 inch lamp size guide

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
13W 230V ≥0.9 935 90° 3000K 40000h ≥80 No Ø106*54.5mm cutout 90mm
13W 230V ≥0.9 1000 90° 4000K 40000h ≥80 No Ø106*54.5mm cutout 90mm
13W 230V ≥0.9 1040 90° 5000K 40000h ≥80 No Ø106*54.5mm cutout 90mm
13W 230V ≥0.9 1050 90° 5700K 40000h ≥80 No Ø106*54.5mm cutout 90mm
13W 230V ≥0.9 885 90° 3000K 40000h ≥80 Yes Ø106*54.5mm cutout 90mm
13W 230V ≥0.9 990 90° 4000K 40000h ≥80 Yes Ø106*54.5mm cutout 90mm
13W 230V ≥0.9 935 90° 5000K 40000h ≥80 Yes Ø106*54.5mm cutout 90mm
13W 230V ≥0.9 935 90° 5700K 40000h ≥80 Yes Ø106*54.5mm cutout 90mm
