16W LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 120° wide beam angle
  • 160-170mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor120 degree beam angleip40 ratingeasy installation

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

wide beam angle recessed downlight

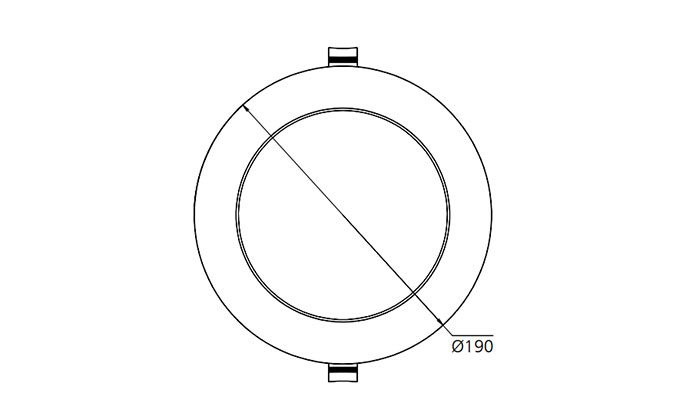

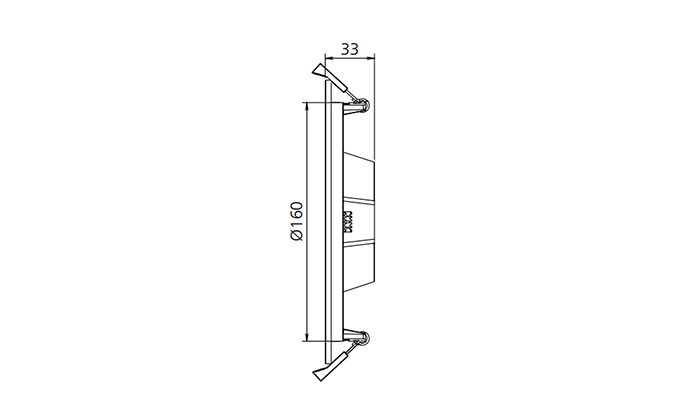

DIMENSION

16watts led downlight Dimensions170mm cutout led downlight

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
16W 100-240V ≥0.9 1580 120° 3000K 40000h ≥80 No Ø190*33mm cutout 160-170mm
16W 100-240V ≥0.9 1700 120° 4000K 40000h ≥80 No Ø190*33mm cutout 160-170mm
16W 100-240V ≥0.9 1720 120° 5000K 40000h ≥80 No Ø190*33mm cutout 160-170mm
16W 100-240V ≥0.9 1730 120° 5700K 40000h ≥80 No Ø190*33mm cutout 160-170mm
16W 230V ≥0.9 1470 120° 3000K 40000h ≥80 Yes Ø190*33mm cutout 160-170mm
16W 230V ≥0.9 1590 120° 4000K 40000h ≥80 Yes Ø190*33mm cutout 160-170mm
16W 230V ≥0.9 1600 120° 5000K 40000h ≥80 Yes Ø190*33mm cutout 160-170mm
16W 230V ≥0.9 1610 120° 5700K 40000h ≥80 Yes Ø190*33mm cutout 160-170mm
