18 Watts SMD LED Downlighting

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degree ip54 waterproofeasy installationDimmable

APPLICATION AREAS

retail store lightingrestaurant lightingoffice lightingclassroom lightingbathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

100 degree beam angle downlight polar chart

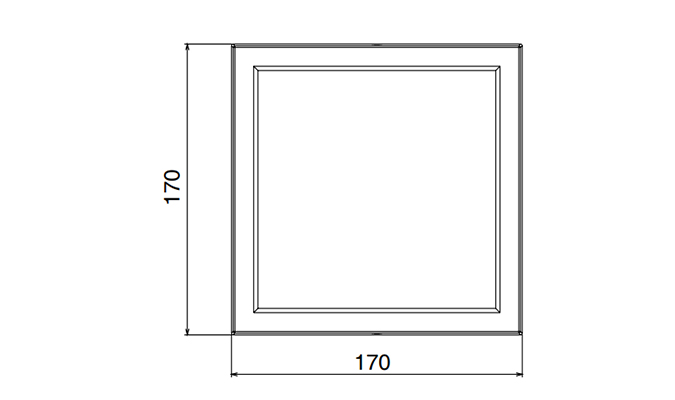

DIMENSION

recessed dimmable led downlightsip54 waterproof down light Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
18W AC230V ≥0.9 1512 90° 3000K 40000h ≥80 Yes 170*170*59mm
18W AC230V ≥0.9 1692 90° 4000K 40000h ≥80 Yes 170*170*59mm
18W AC230V ≥0.9 1602 90° 5000K 40000h ≥80 Yes 170*170*59mm
18W AC230V ≥0.9 1584 90° 5700K 40000h ≥80 Yes 170*170*59mm
