20W Double Recessed Downlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 38° 60° wide beam angle
  • L180*W90mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • Adjustable and rotary
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor38 beam angleled beam angle 60 degreeip20 ratingeasy installation

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

20w double heads downlight polar chart

DIMENSION

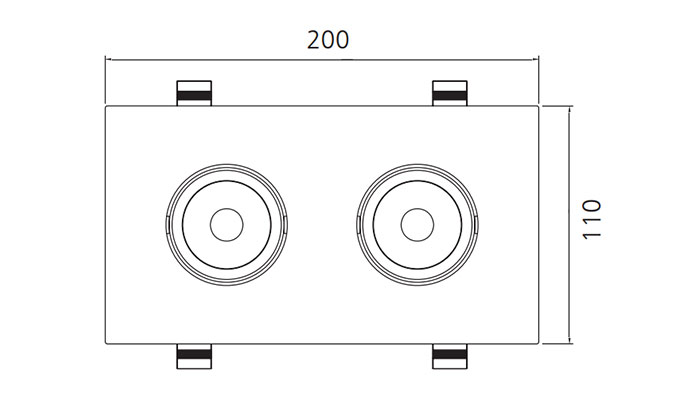

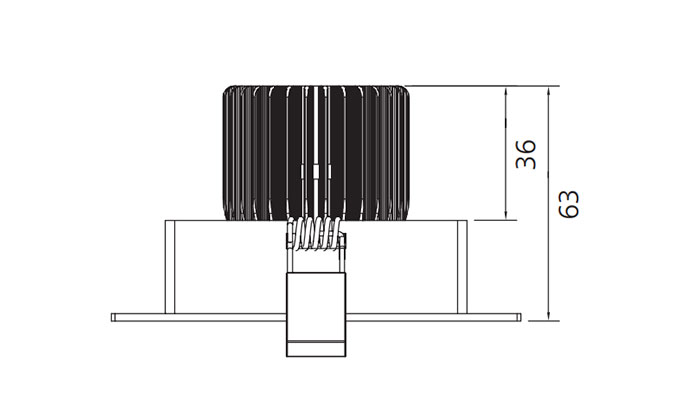

90mm cutout double heads downlight sizesAdjustable recessed downlight sizes chart

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimension
20W AC100-240V ≥0.9 1500 38°60° 3000K 40000h ≥80 L200*W110*H63mm cutout L180*W90mm
20W AC100-240V ≥0.9 1560 38°60° 4000K 40000h ≥80 L200*W110*H63mm cutout L180*W90mm
20W AC100-240V ≥0.9 1600 38°60° 5000K 40000h ≥80 L200*W110*H63mm cutout L180*W90mm
20W AC100-240V ≥0.9 1650 38°60° 5700K 40000h ≥80 L200*W110*H63mm cutout L180*W90mm
