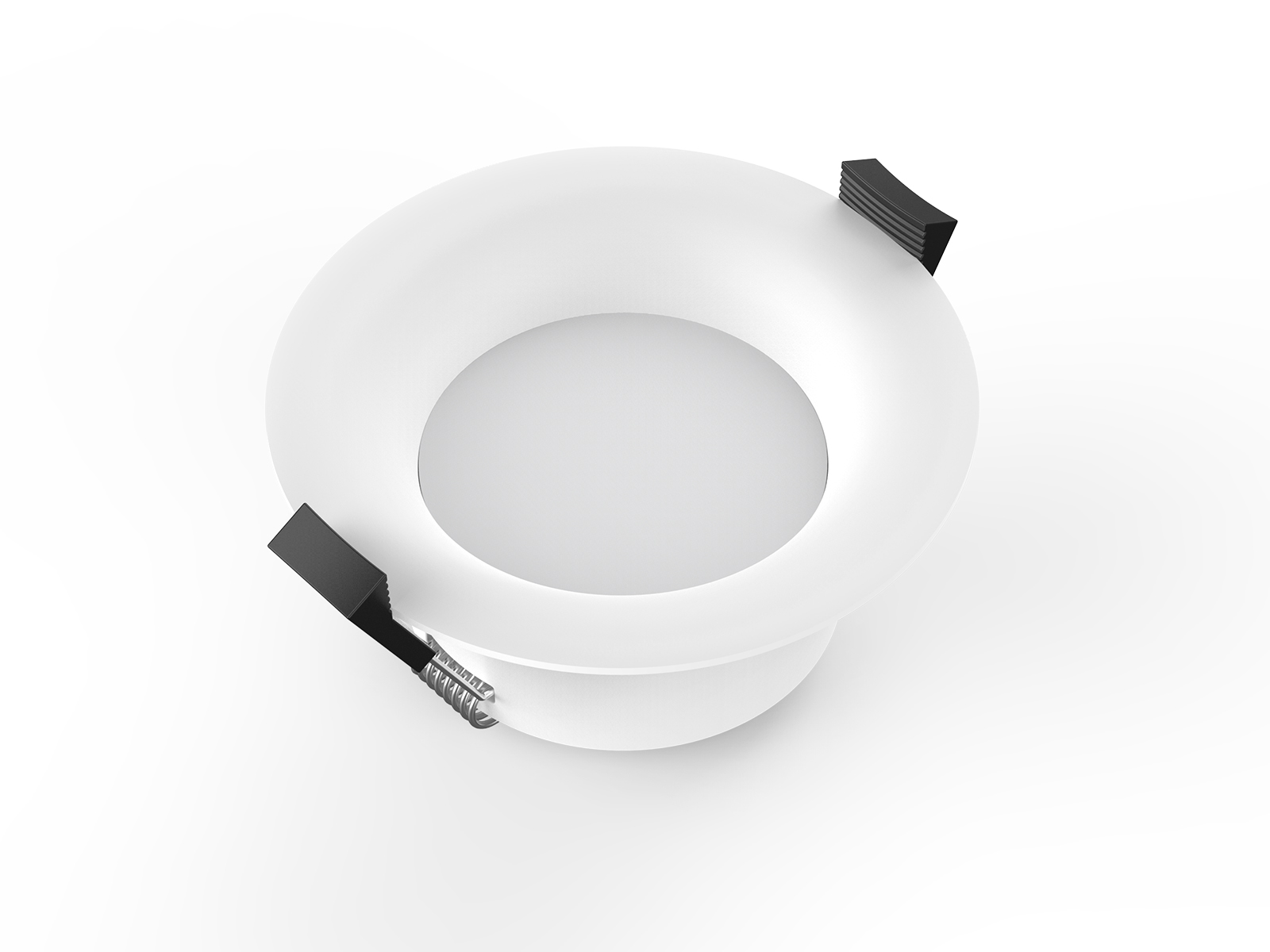

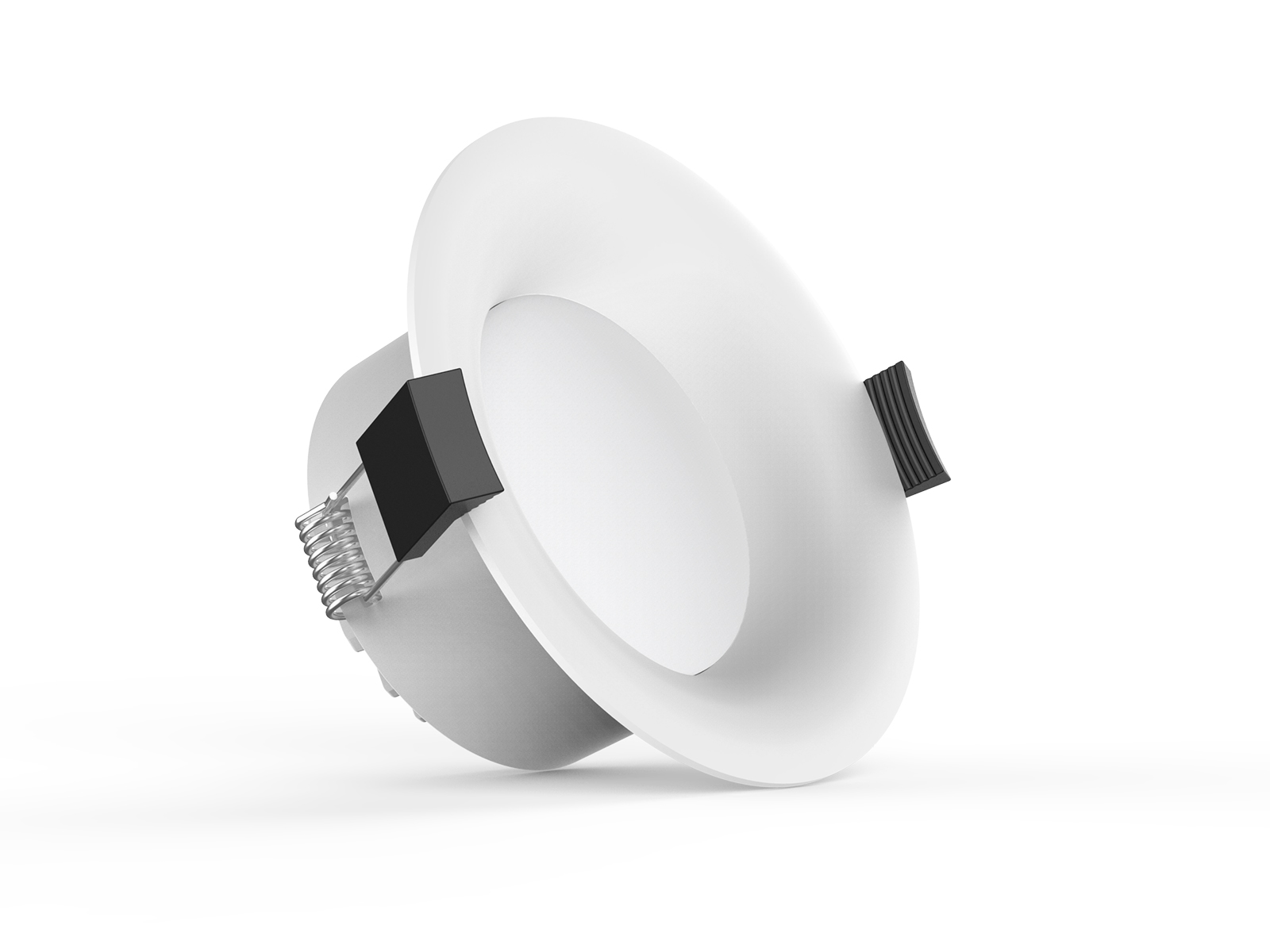

3 Inch 10W Recessed Bathroom Downlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 90° wide beam angle
  • 90mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofeasy installation

APPLICATION AREAS

bathroomretail store lightingrestaurant lightingsupermarket led lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

polar curve in 10w illumination

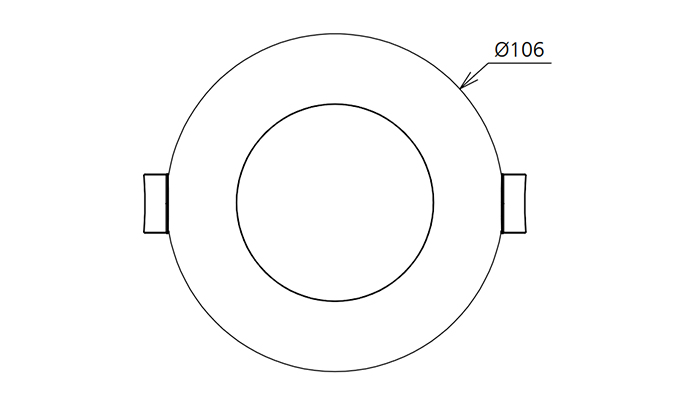

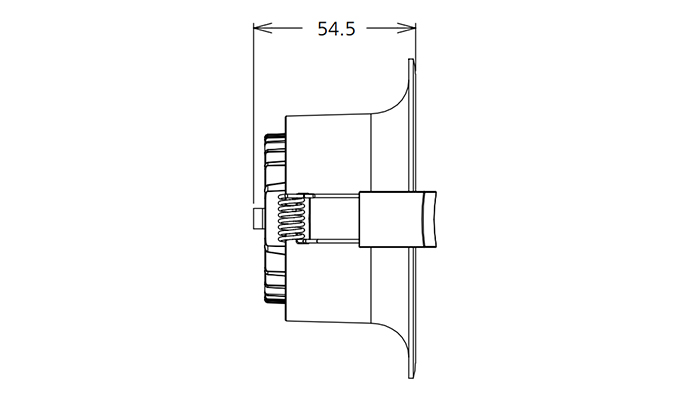

DIMENSION

Dimensions 90mm cut out3 inch led downlight sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W 230V ≥0.9 750 90° 3000K 40000h ≥80 No Ø106*54.5mm cutout 90mm
10W 230V ≥0.9 820 90° 4000K 40000h ≥80 No Ø106*54.5mm cutout 90mm
10W 230V ≥0.9 830 90° 5000K 40000h ≥80 No Ø106*54.5mm cutout 90mm
10W 230V ≥0.9 840 90° 5700K 40000h ≥80 No Ø106*54.5mm cutout 90mm
10W 230V ≥0.9 740 90° 3000K 40000h ≥80 Yes Ø106*54.5mm cutout 90mm
10W 230V ≥0.9 810 90° 4000K 40000h ≥80 Yes Ø106*54.5mm cutout 90mm
10W 230V ≥0.9 820 90° 5000K 40000h ≥80 Yes Ø106*54.5mm cutout 90mm
10W 230V ≥0.9 830 90° 5700K 40000h ≥80 Yes Ø106*54.5mm cutout 90mm
