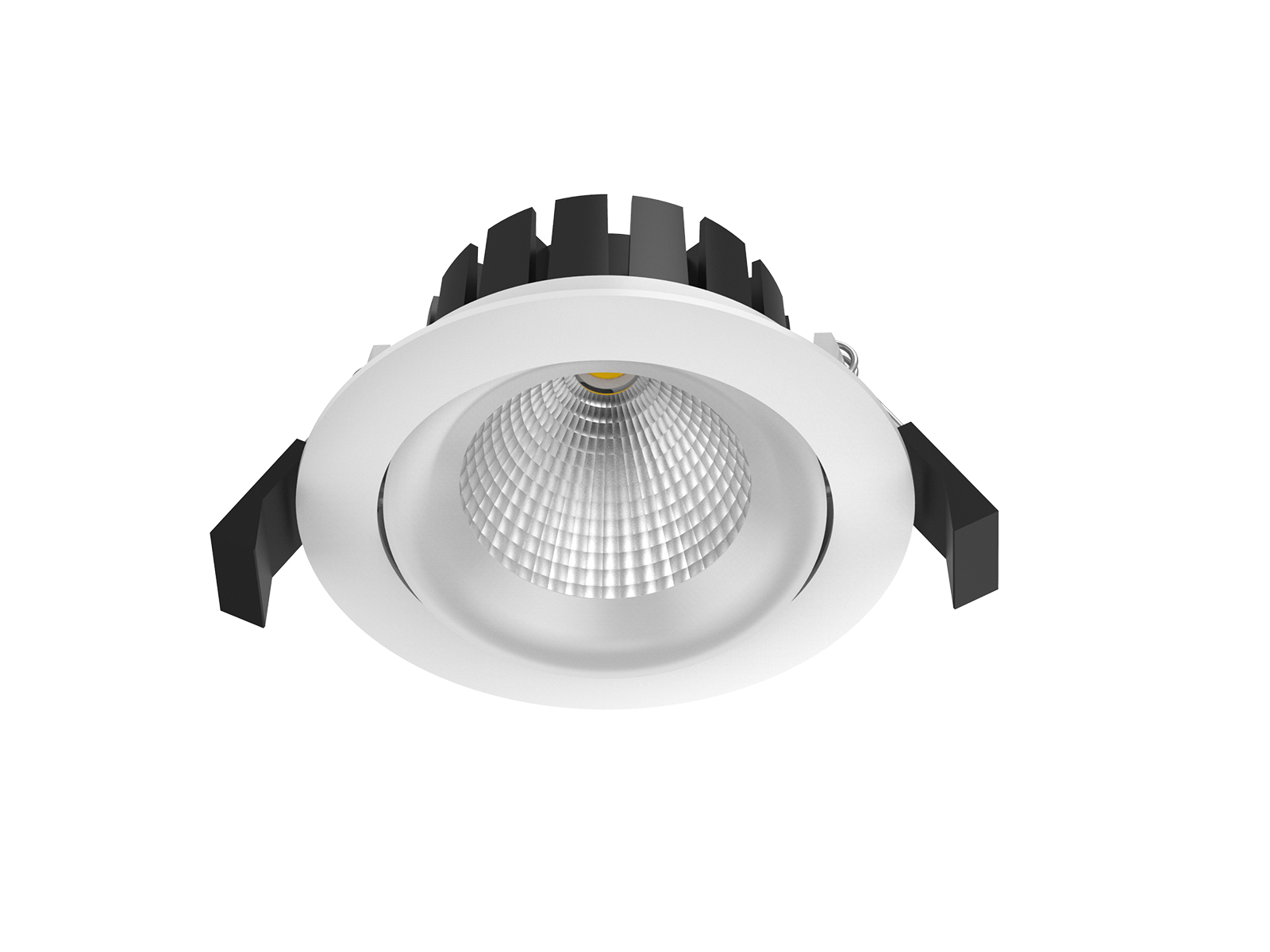

3 Inch 80MM LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 15°/24°/36°/60° wide beam angle
  • 82-88mm cutout
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled 15 degree beam angleled beam angle 24 degree36 degree beam angleled beam angle 60 degreeip54 waterproof easy installation

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

3 inch 10w recessed ceiling light

DIMENSION

led downlight with 82mm cut out3 inch led recessed downlighting

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W 230V ≥0.85 650 15°/24°/36°/60° 2700K 40000h ≥80 No Ø95*55mm cutout 82-88mm
10W 230V ≥0.85 700 15°/24°/36°/60° 3000K 40000h ≥80 No Ø95*55mm cutout 82-88mm
10W 230V ≥0.85 750 15°/24°/36°/60° 4000K 40000h ≥80 No Ø95*55mm cutout 82-88mm
10W 230V ≥0.85 770 15°/24°/36°/60° 5000K 40000h ≥80 No Ø95*55mm cutout 82-88mm
10W 230V ≥0.9 610 15°/24°/36°/60° 2700K 40000h ≥80 Yes Ø95*55mm cutout 82-88mm
10W 230V ≥0.9 650 15°/24°/36°/60° 3000K 40000h ≥80 Yes Ø95*55mm cutout 82-88mm
10W 230V ≥0.9 700 15°/24°/36°/60° 4000K 40000h ≥80 Yes Ø95*55mm cutout 82-88mm
10W 230V ≥0.9 720 15°/24°/36°/60° 5000K 40000h ≥80 Yes Ø95*55mm cutout 82-88mm
