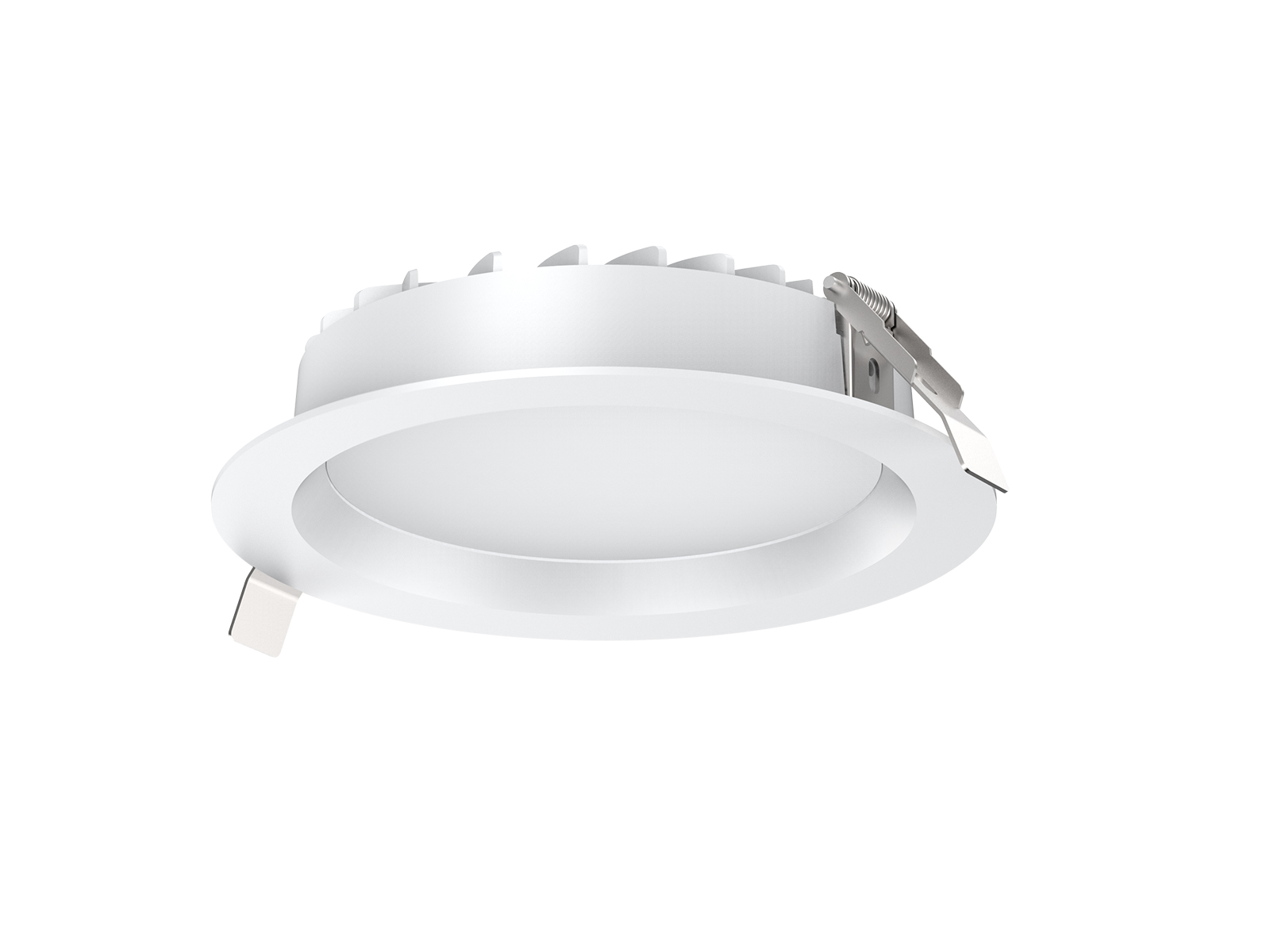

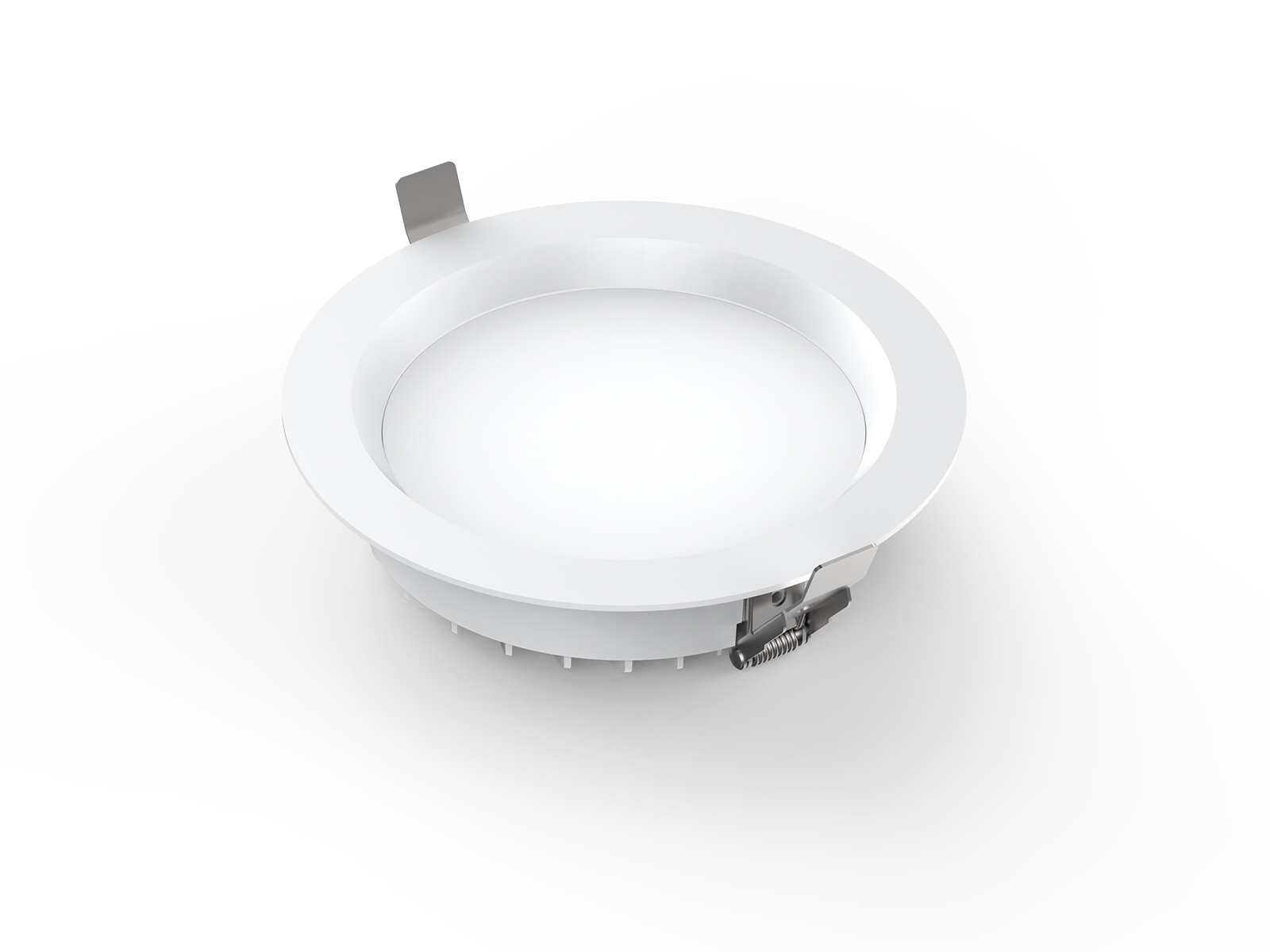

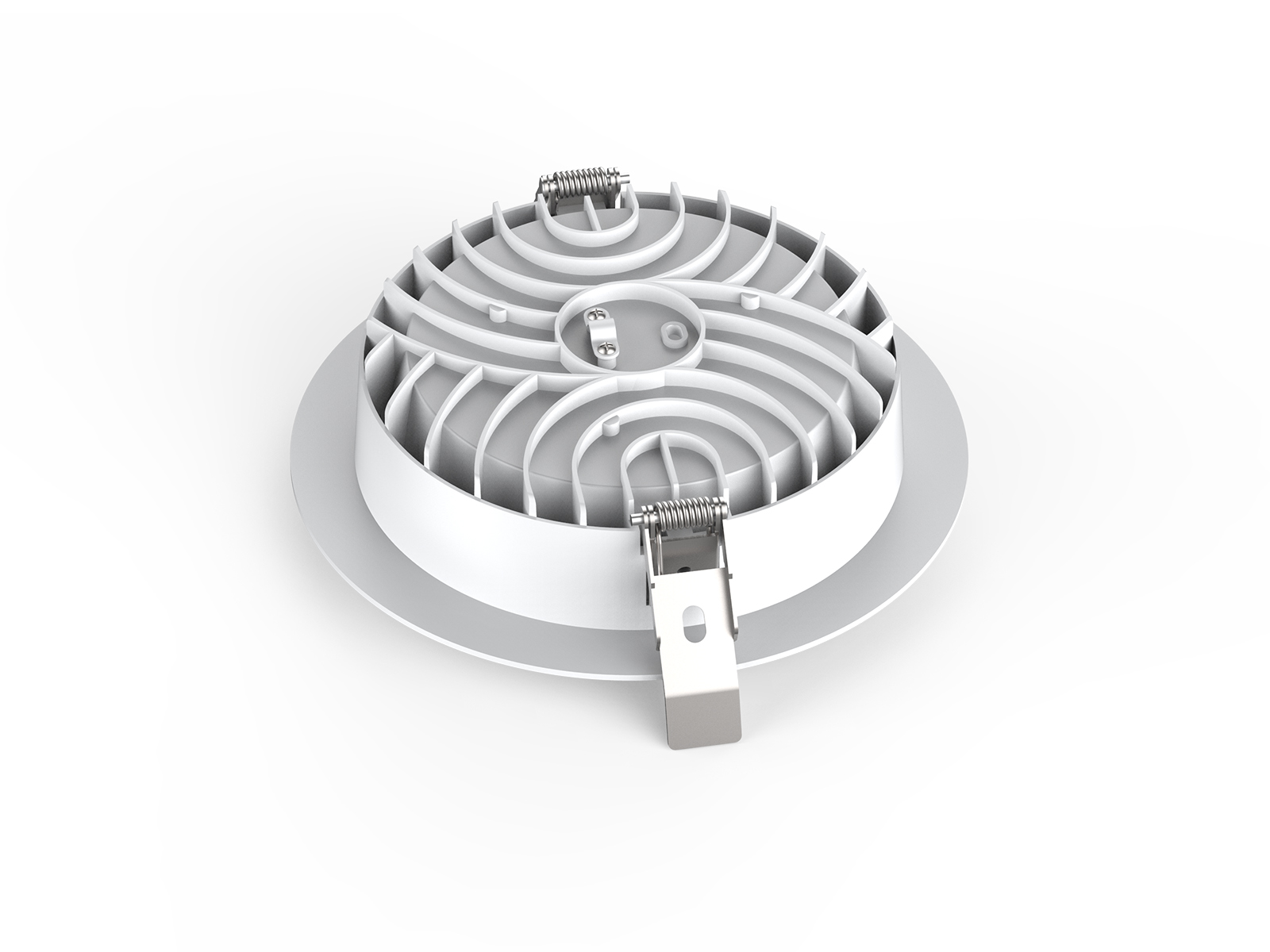

3000K Warm White LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 50,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø160-170mm cutout
  • CCT: 3000K-4000K-5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofDimmableeasy installation

APPLICATION AREAS

living roombathroomclassroom lightingretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

6 inch 18Watts isolux diagram explanation

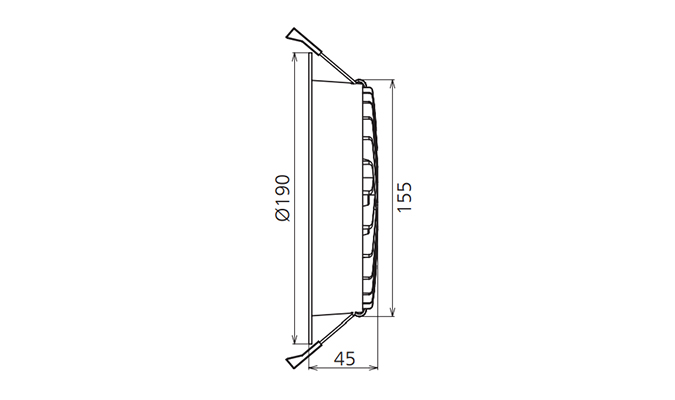

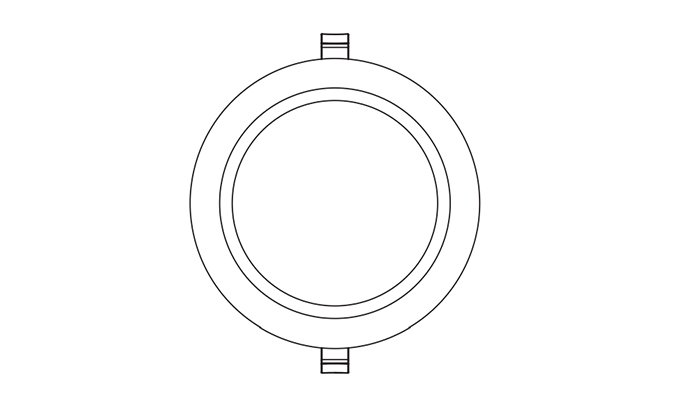

DIMENSION

Dimensions Diagram 160mm160mm Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimension Dimmable
18W AC230V ≥0.9 1460 90° 3000K 50000h ≥80 Ø190*45mm cutout 160-170mm No
18W AC230V ≥0.9 1850 90° 4000K 50000h ≥80 Ø190*45mm cutout 160-170mm No
18W AC230V ≥0.9 1730 90° 5700K 50000h ≥80 Ø190*45mm cutout 160-170mm No
18W AC230V ≥0.9 1410 90° 3000K 50000h ≥80 Ø190*45mm cutout 160-170mm Yes
18W AC230V ≥0.9 1800 90° 4000K 50000h ≥80 Ø190*45mm cutout 160-170mm Yes
18W AC230V ≥0.9 1710 90° 5700K 50000h ≥80 Ø190*45mm cutout 160-170mm Yes
