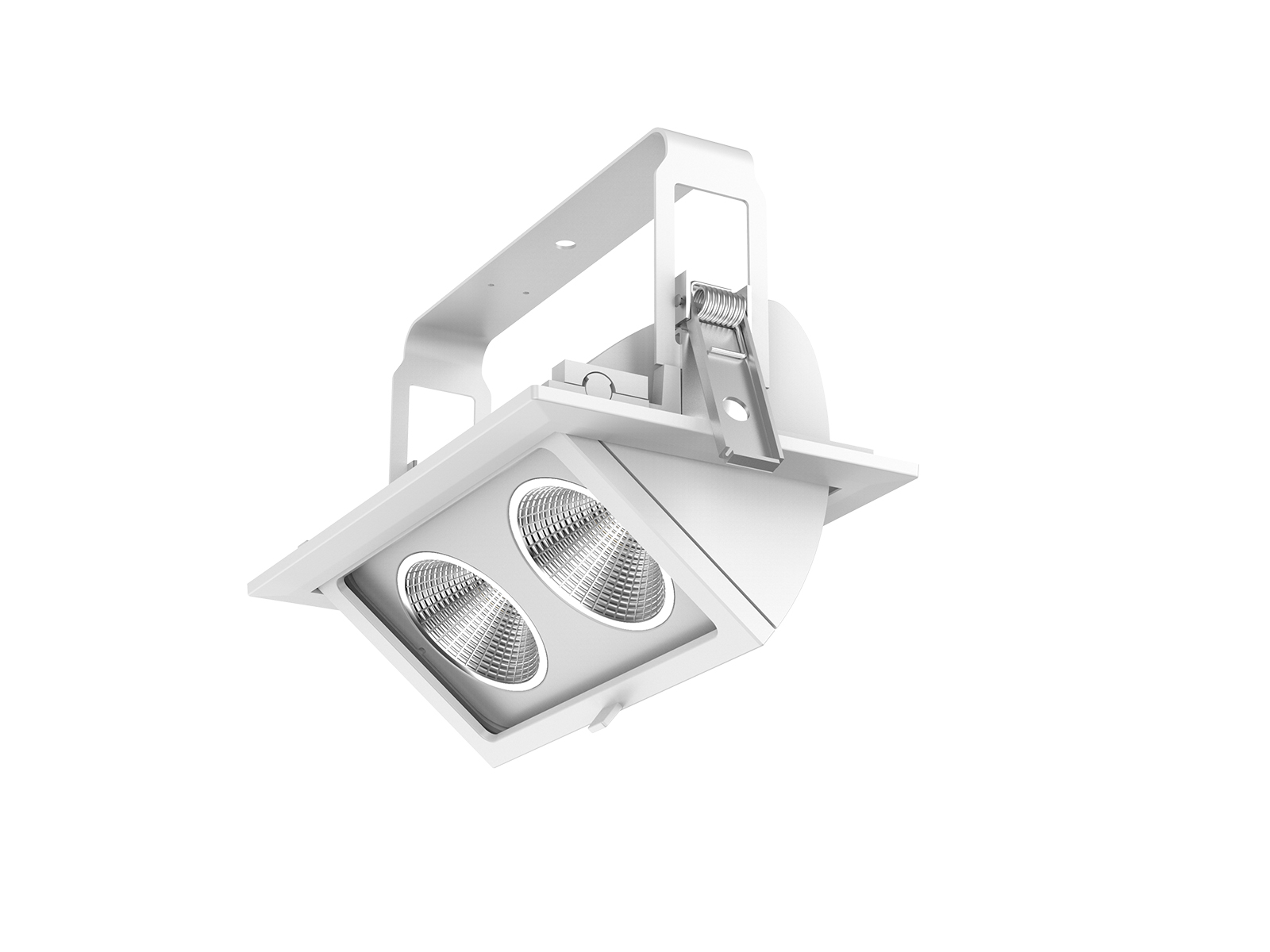

35 Watts Recessed Rectangular Downlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 45° wide beam angle
  • L220XW130mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor45 degree beam angle ip20 ratingip65 waterproofeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideasbathroom

CERTIFICATIONS

ce certification

POLAR DIAGRAM COMPARISON

35w waterproof rectangular downlight polar chart

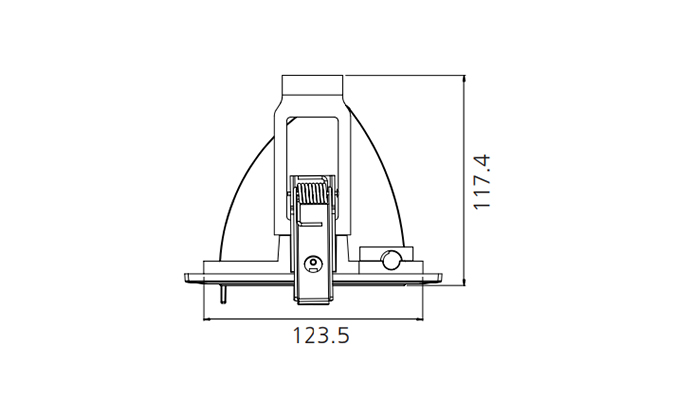

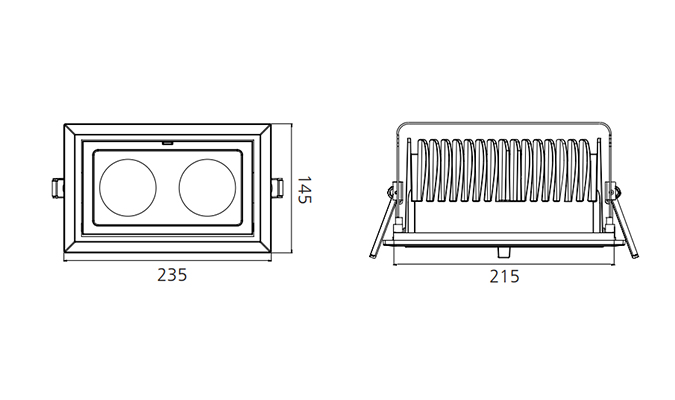

DIMENSION

COB square downlight sizes130mm cutout recessed downlight Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
35W AC100-240V ≥0.9 2500 45° 3000K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
35W AC100-240V ≥0.9 2700 45° 4000K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
35W AC100-240V ≥0.9 2970 45° 5000K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
35W AC100-240V ≥0.9 2950 45° 5700K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
