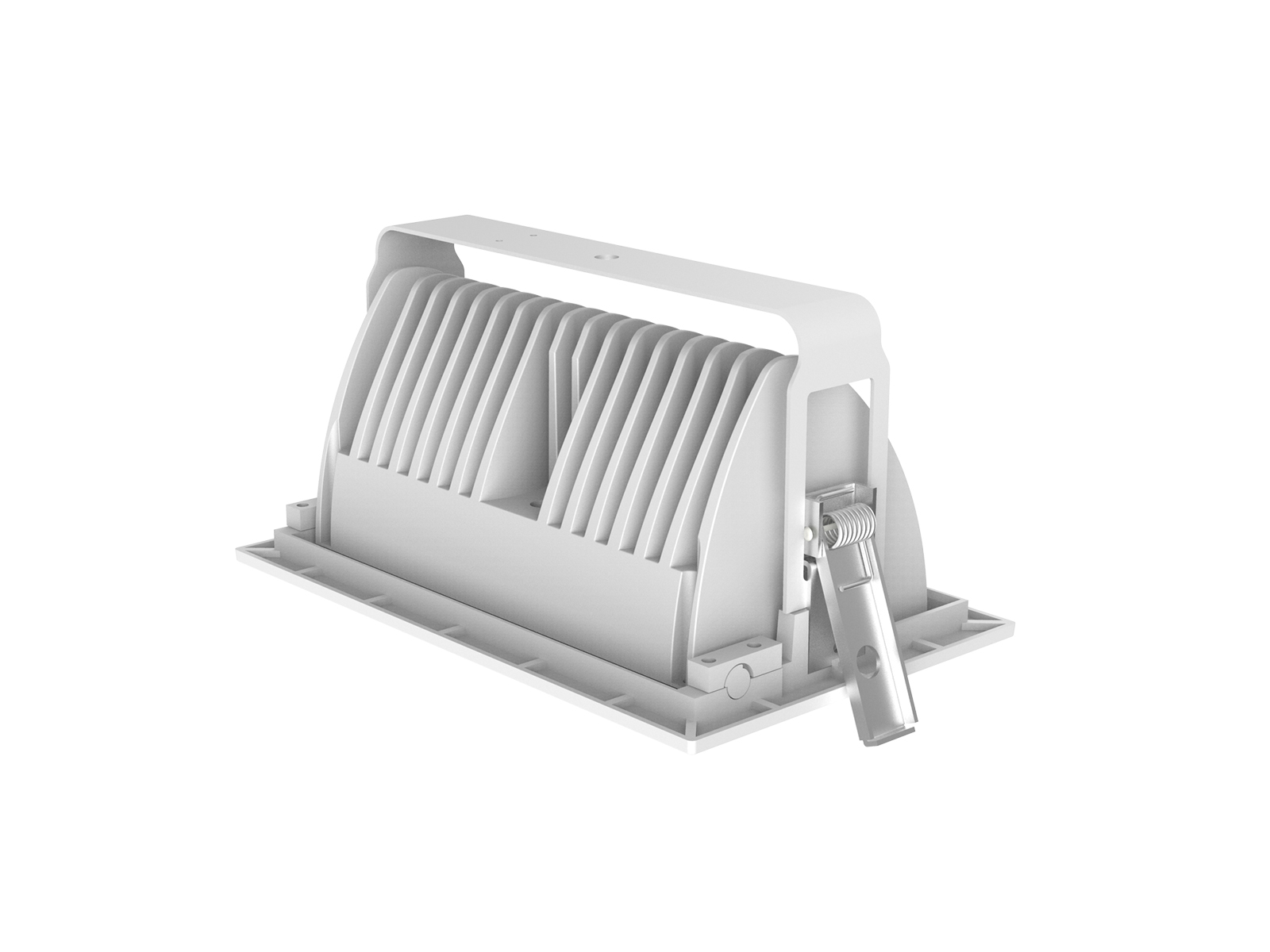

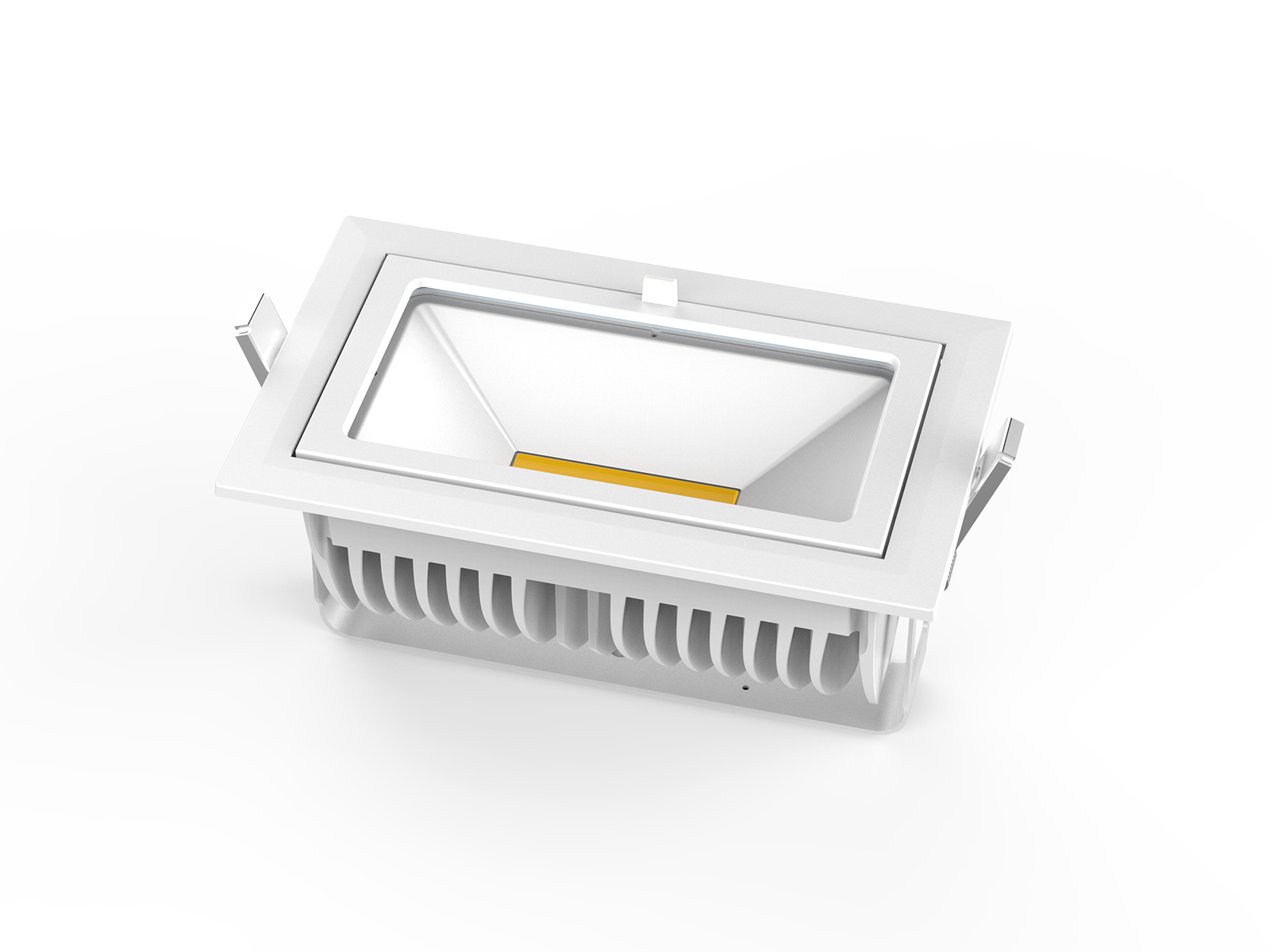

35W Rectangular LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 120° wide beam angle
  • L220XW130mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor120 degree beam angle ip20 ratingip65 waterproofeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideasbathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

35w cob led downlight polar chart

DIMENSION

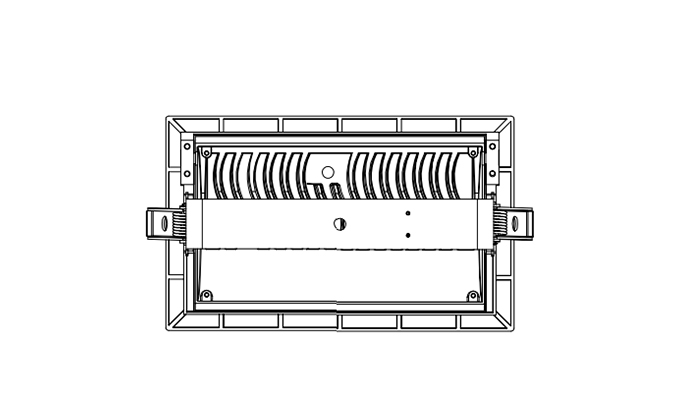

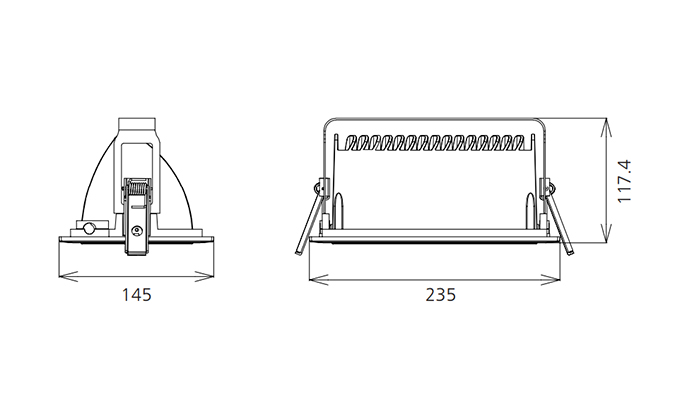

IP65 waterproof downlight Dimensions DiagramDown light 130mm cut out sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
35W AC100-240V ≥0.9 2800 120° 3000K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
35W AC100-240V ≥0.9 3000 120° 4000K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
35W AC100-240V ≥0.9 3050 120° 5000K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
35W AC100-240V ≥0.9 2950 120° 5700K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
