4000 Kelvin 3inch Downlight

FEATURES

  • Integrated SMD LED down lights with Faceted / Specula Reflector.
  • No external driver required which facilitates easy installation.
  • A perfect alternative to traditional ceiling mounted luminaries.
  • Looping from luminaries to luminaries with mains through-wiring.
  • IP54 protection at room side, suitable for bathrooms, kitchens.
  • Triac Dimmable version available.
  • Good heat dissipating to ensure long life.
  • Internal Driver

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofDimmableeasy installation

APPLICATION AREAS

supermarket led lightingretail store lightingoffice lightingbathroom

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

3 inch photometric diagram

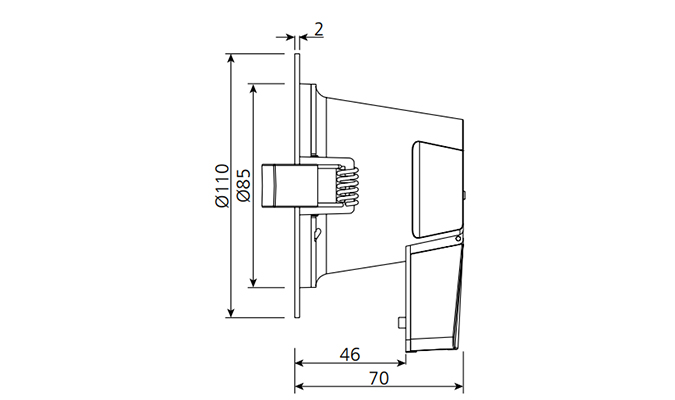

DIMENSION

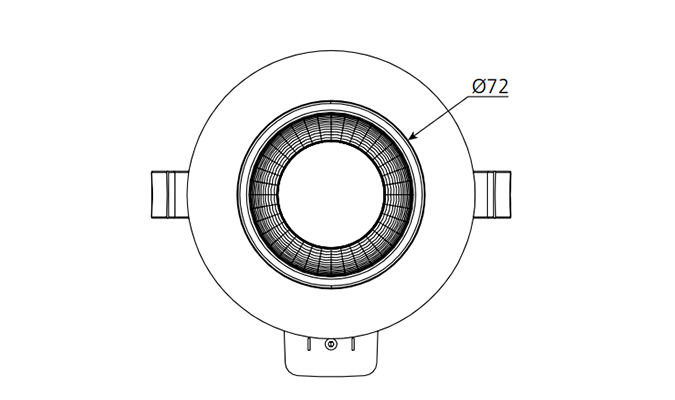

6w Commercial Downlight Dimensionsrecessed led downlight sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
6W AC100-277V ≥0.9 500 90° 3000K 50,000h ≥80 No Ø110*70mm cutout 90-95mm
6W AC100-277V ≥0.9 600 90° 4000K 50,000h ≥80 No Ø110*70mm cutout 90-95mm
6W AC100-277V ≥0.9 580 90° 5000K 50,000h ≥80 No Ø110*70mm cutout 90-95mm
6W AC100-277V ≥0.9 590 90° 5700K 50,000h ≥80 No Ø110*70mm cutout 90-95mm
6W AC200-240V ≥0.9 490 90° 3000K 50,000h ≥80 Yes Ø110*70mm cutout 90-95mm
6W AC200-240V ≥0.9 590 90° 4000K 50,000h ≥80 Yes Ø110*70mm cutout 90-95mm
6W AC200-240V ≥0.9 560 90° 5000K 50,000h ≥80 Yes Ø110*70mm cutout 90-95mm
6W AC200-240V ≥0.9 580 90° 5700K 50,000h ≥80 Yes Ø110*70mm cutout 90-95mm
6W AC100-277V ≥0.9 560 90° 3000K 50,000h ≥80 No Ø110*70mm cutout 90-95mm
6W AC100-277V ≥0.9 610 90° 4000K 50,000h ≥80 No Ø110*70mm cutout 90-95mm
6W AC100-277V ≥0.9 580 90° 5000K 50,000h ≥80 No Ø110*70mm cutout 90-95mm
6W AC100-277V ≥0.9 600 90° 5700K 50,000h ≥80 No Ø110*70mm cutout 90-95mm
6W AC200-240V ≥0.9 550 90° 3000K 50,000h ≥80 Yes Ø110*70mm cutout 90-95mm
6W AC200-240V ≥0.9 590 90° 4000K 50,000h ≥80 Yes Ø110*70mm cutout 90-95mm
6W AC200-240V ≥0.9 560 90° 5000K 50,000h ≥80 Yes Ø110*70mm cutout 90-95mm
6W AC200-240V ≥0.9 580 90° 5700K 50,000h ≥80 Yes Ø110*70mm cutout 90-95mm
