6 Inch LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable with triac dimmer
  • 100° wide beam angle
  • 160-170mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor100 degree beam angleip54 waterproofeasy installationDimmable

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lightingbathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certificationIC Rating

POLAR DIAGRAM COMPARISON

100 wide beam angle downlight polar chart

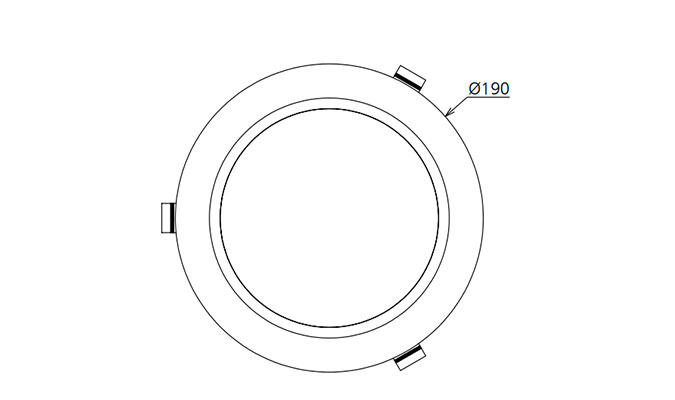

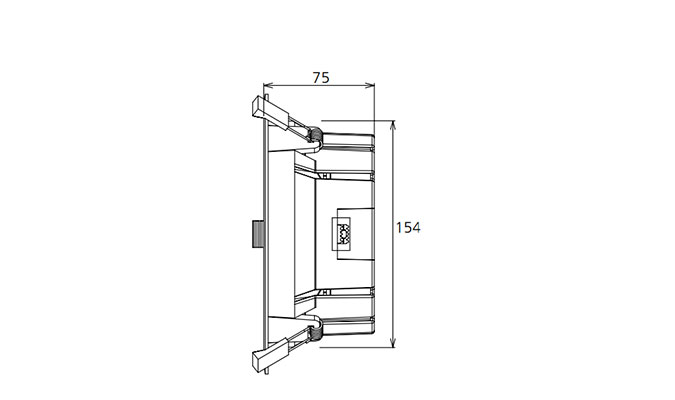

DIMENSION

6 inch round led downlight6 inch led downlight fixtures

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
20W AC230V ≥0.9 1900 100° 3000K 40000h ≥80 Yes Ø190*75mm cutout 160-170mm
20W AC230V ≥0.9 2100 100° 4000K 40000h ≥80 Yes Ø190*75mm cutout 160-170mm
20W AC230V ≥0.9 1860 100° 5000K 40000h ≥80 Yes Ø190*75mm cutout 160-170mm
20W AC230V ≥0.9 2120 100° 5700K 40000h ≥80 Yes Ø190*75mm cutout 160-170mm
