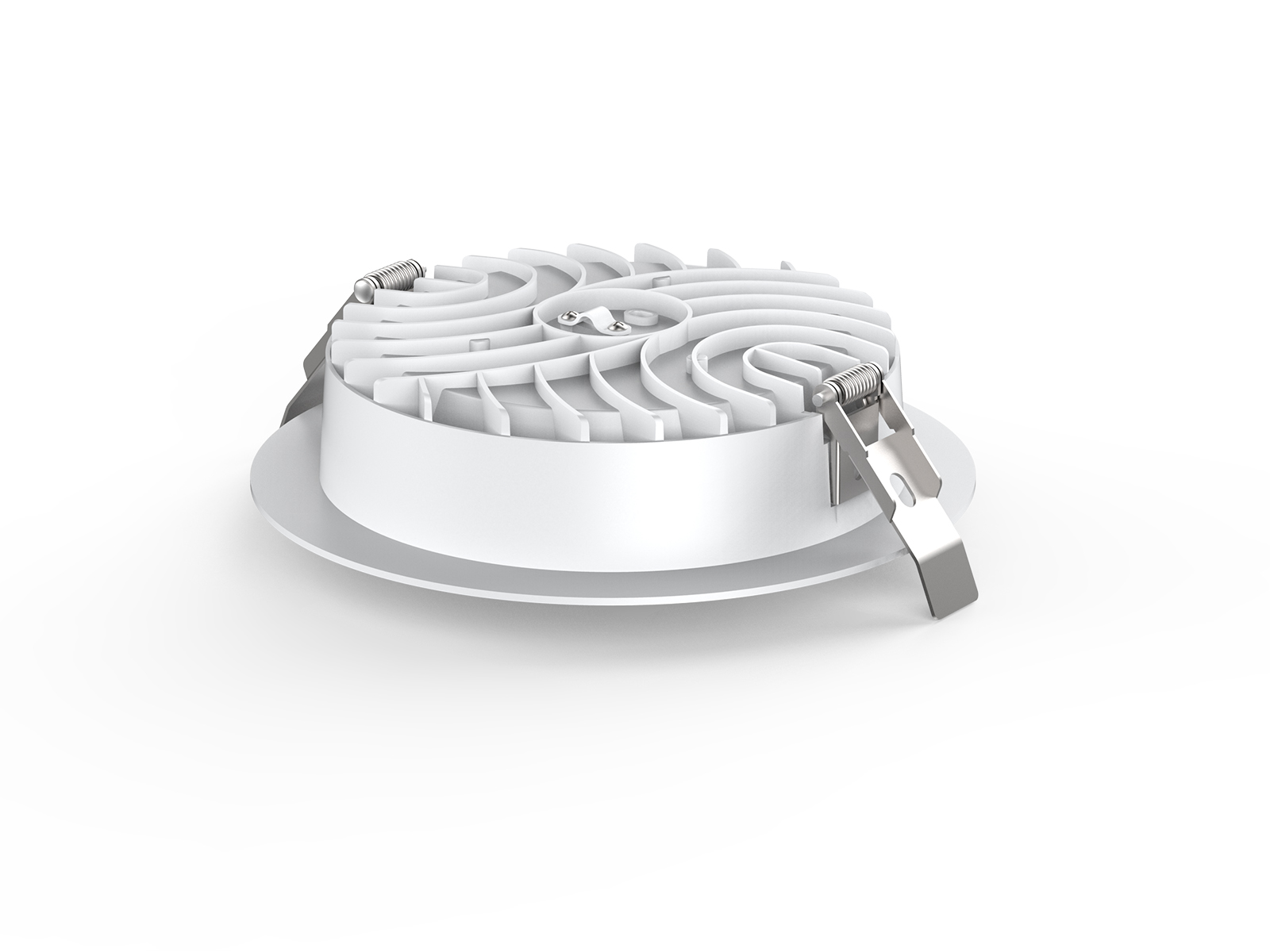

6 Inch LED Downlights 18W

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø160-170mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorip54 waterproofled beam angle 90 degreeeasy installation

APPLICATION AREAS

bathroomclassroom lightingoffice lightingrestaurant lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

18w polar comparison chart

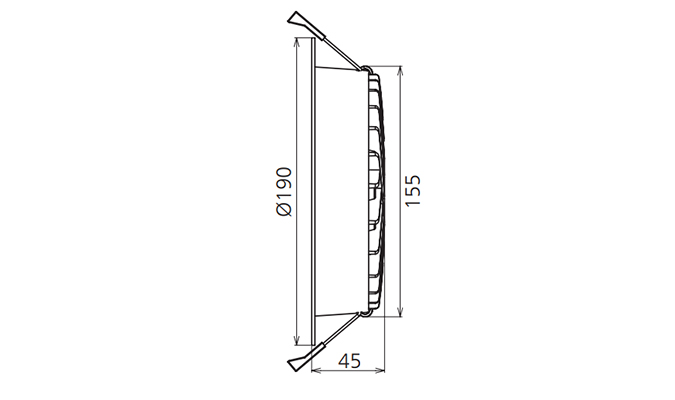

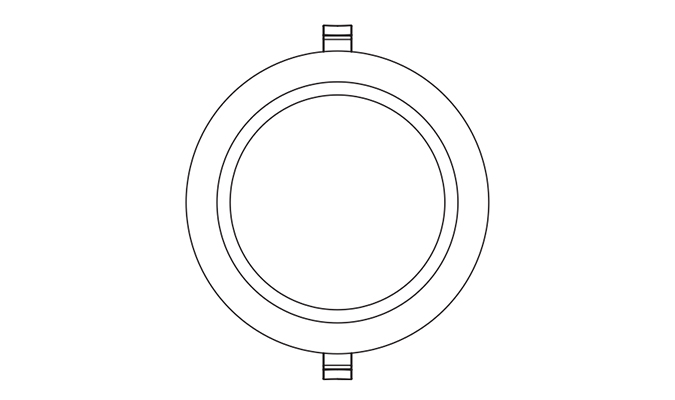

DIMENSION

170mm cutout Dimensions Diagram6 inch led downlight sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimension Dimmable
18W AC230V ≥0.9 1740 90° 3000K 40000h ≥80 Ø190*45mm cutout 160-170mm No
18W AC230V ≥0.9 1800 90° 4000K 40000h ≥80 Ø190*45mm cutout 160-170mm No
18W AC230V ≥0.9 1830 90° 5000K 40000h ≥80 Ø190*45mm cutout 160-170mm No
18W AC230V ≥0.9 1870 90° 5700K 40000h ≥80 Ø190*45mm cutout 160-170mm No
18W AC230V ≥0.9 1710 90° 3000K 40000h ≥80 Ø190*45mm cutout 160-170mm Yes
18W AC230V ≥0.9 1760 90° 4000K 40000h ≥80 Ø190*45mm cutout 160-170mm Yes
18W AC230V ≥0.9 1800 90° 5000K 40000h ≥80 Ø190*45mm cutout 160-170mm Yes
18W AC230V ≥0.9 1830 90° 5700K 40000h ≥80 Ø190*45mm cutout 160-170mm Yes
