60W Dimmable LED Downlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 90° wide beam angle
  • L225XW130mm cutout
  • CCT: 3000K 4000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degree ip20 ratingeasy installation

APPLICATION AREAS

retail store lightingrestaurant lightingoffice lightingclassroom lightinginterior lighting ideasliving room

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

60w rectangular downlight polar chart

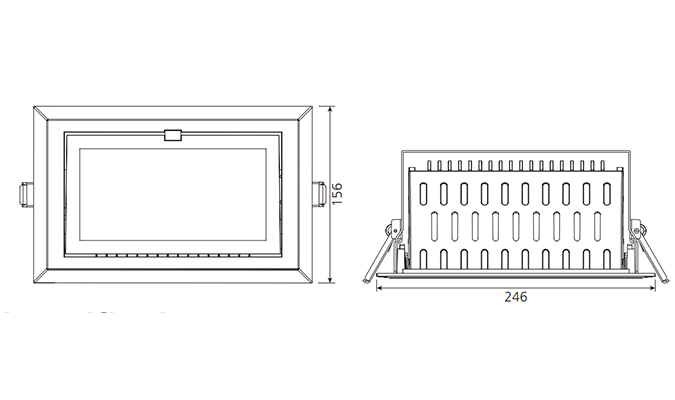

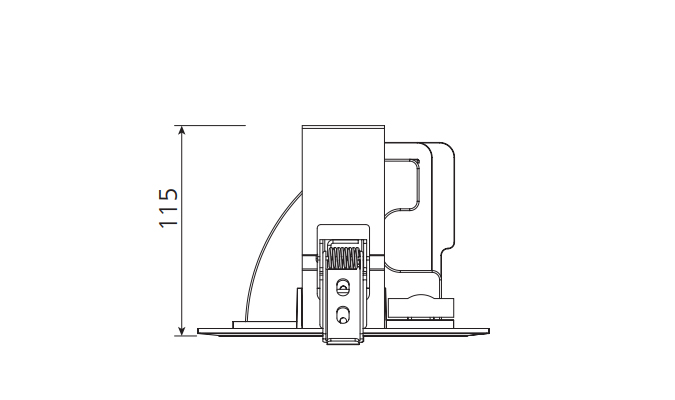

DIMENSION

adjustable led downlight fixtures sizesled downlight 130mm cutout

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
60W AC230V ≥0.9 6000 90° 3000K 40000h ≥80 No L246*W156*H155mm cutout L225*W130mm
60W AC230V ≥0.9 6900 90° 4000K 40000h ≥80 No L246*W156*H155mm cutout L225*W130mm
60W AC230V ≥0.9 6300 90° 5700K 40000h ≥80 No L246*W156*H115mm cutout L225*W130mm
