7W LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 120° wide beam angle
  • 90-95mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor120 degree beam angleip40 ratingeasy installation

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting



CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

wide beam angle recessed downlight

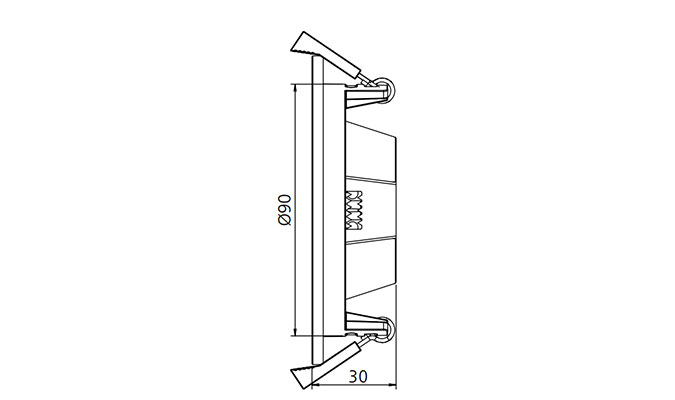

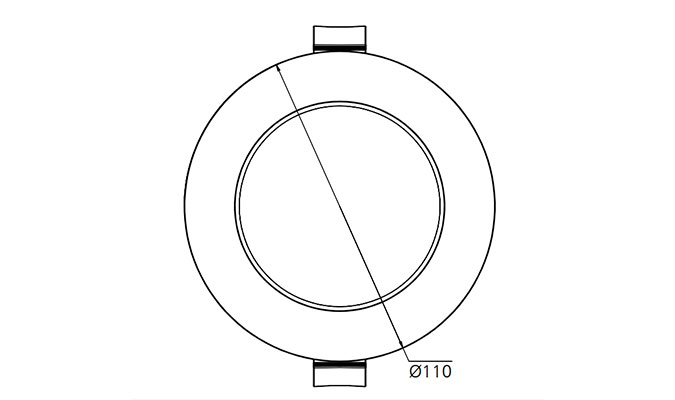

DIMENSION

led downlight 95mm cut out230V LED downlight sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
7W 100-240V ≥0.9 510 120° 3000K 40000h ≥80 No Ø110*30mm cutout 90-95mm
7W 100-240V ≥0.9 530 120° 4000K 40000h ≥80 No Ø110*30mm cutout 90-95mm
7W 100-240V ≥0.9 530 120° 5000K 40000h ≥80 No Ø110*30mm cutout 90-95mm
7W 100-240V ≥0.9 580 120° 5700K 40000h ≥80 No Ø110*30mm cutout 90-95mm
7W 230V ≥0.9 490 120° 3000K 40000h ≥80 Yes Ø110*30mm cutout 90-95mm
7W 230V ≥0.9 500 120° 4000K 40000h ≥80 Yes Ø110*30mm cutout 90-95mm
7W 230V ≥0.9 500 120° 5000K 40000h ≥80 Yes Ø110*30mm cutout 90-95mm
7W 230V ≥0.9 560 120° 5700K 40000h ≥80 Yes Ø110*30mm cutout 90-95mm
