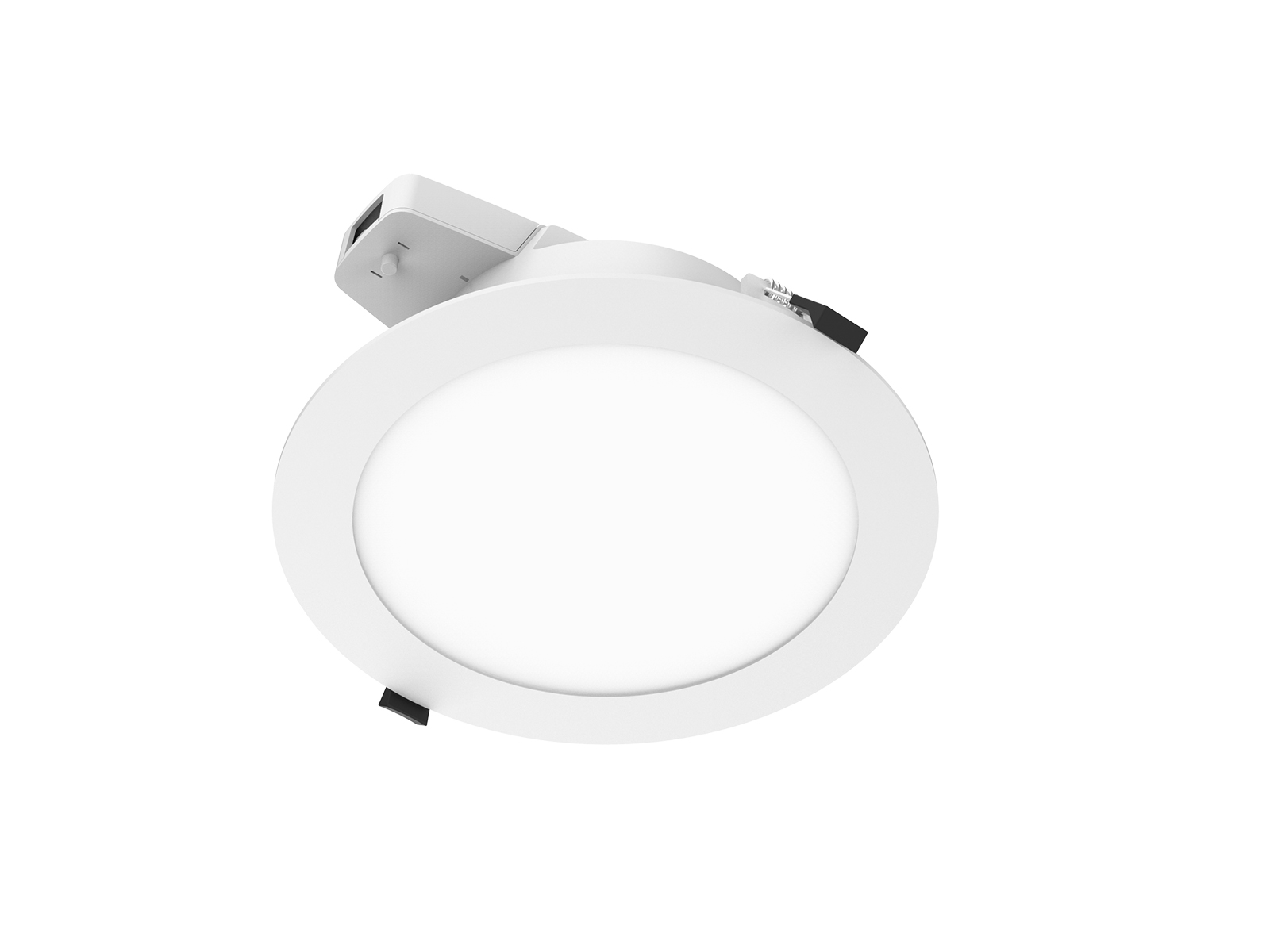

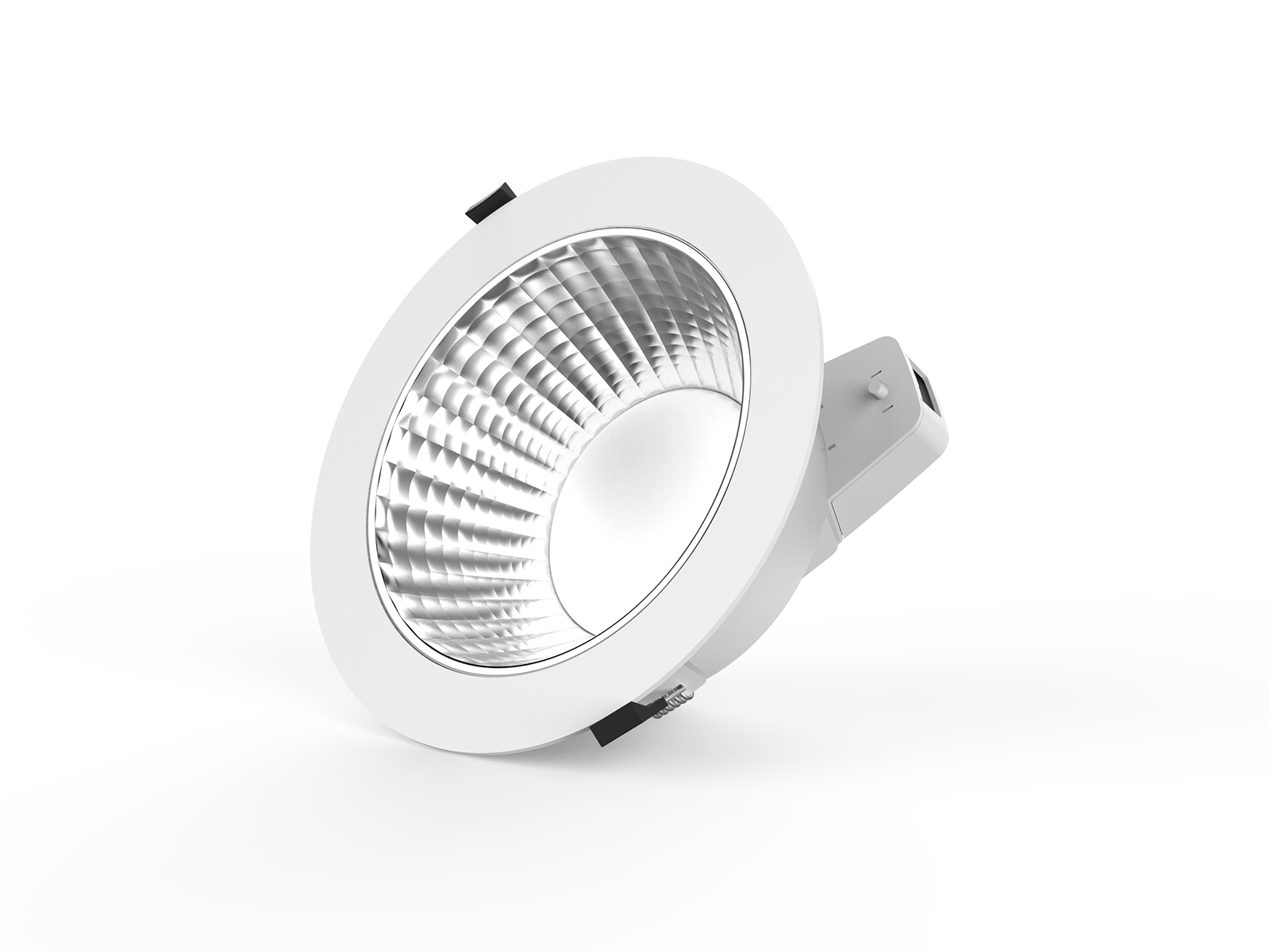

8 Inch LED Downlight Built In Driver

FEATURES

  • Integrated SMD LED down lights with Faceted / Specula Reflector.
  • No external driver required which facilitates easy installation.
  • A perfect alternative to traditional ceiling mounted luminaries.
  • Looping from luminaries to luminaries with mains through-wiring.
  • IP54 protection at room side, suitable for bathrooms, kitchens.
  • Triac Dimmable version available.
  • Good heat dissipating to ensure long life.
  • Internal Driver

CHARACTERISTIC

power factorled beam angle 90 degreeled beam angle 60 degreeip54 waterproofDimmableeasy installation

APPLICATION AREAS

bathroomliving roomrestaurant lightingoffice lightingsupermarket led lighting

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

8 inch polar chart

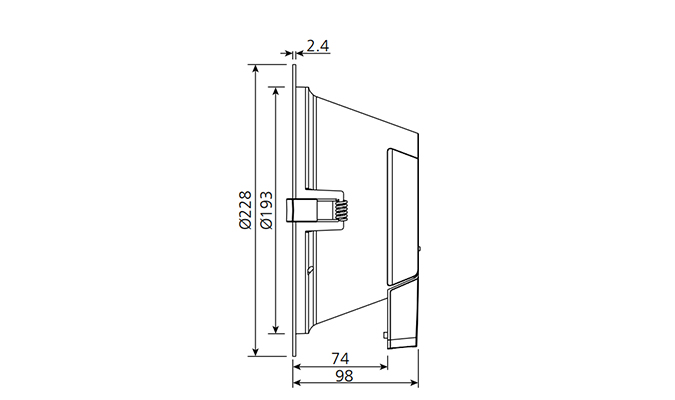

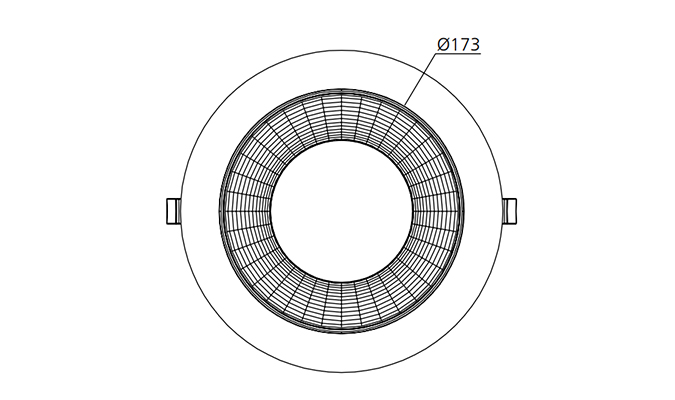

DIMENSION

25 watts Dimensions Diagram25w dimmable Technical Specification

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimension
25W AC100-277V ≥0.9 2450 90° 3000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC100-277V ≥0.9 2930 90° 4000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC100-277V ≥0.9 2850 90° 5000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC100-277V ≥0.9 2880 90° 5700K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC200-240V ≥0.9 2330 90° 3000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC200-240V ≥0.9 2800 90° 4000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC200-240V ≥0.9 2700 90° 5000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC200-240V ≥0.9 2730 90° 5700K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC100-277V ≥0.9 2500 60° 3000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC100-277V ≥0.9 2850 60° 4000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC100-277V ≥0.9 2800 60° 5000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC100-277V ≥0.9 2750 60° 5700K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC200-240V ≥0.9 2450 60° 3000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC200-240V ≥0.9 2780 60° 4000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC200-240V ≥0.9 2680 60° 5000K 50,000h ≥80 Ø228*98mm cutout 200-210mm
25W AC200-240V ≥0.9 2630 60° 5700K 50,000h ≥80 Ø228*98mm cutout 200-210mm
