8 Inch LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 120° wide beam angle
  • 200-210mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor120 degree beam angleip40 ratingeasy installation

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

20w slim led downlight

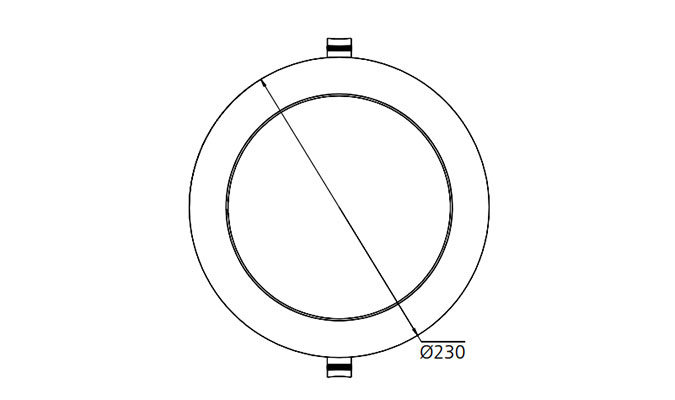

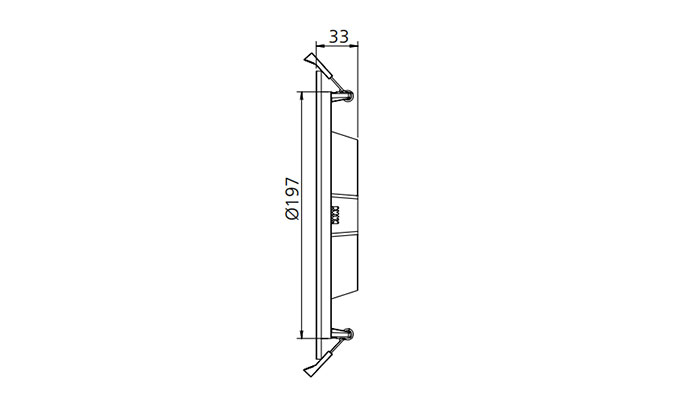

DIMENSION

8 inch recessed downlight210mm cutout led downlight

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
20W 100-240V ≥0.9 2150 120° 3000K 40000h ≥80 No Ø230*33mm cutout 200-210mm
20W 100-240V ≥0.9 2300 120° 4000K 40000h ≥80 No Ø230*33mm cutout 200-210mm
20W 100-240V ≥0.9 2310 120° 5000K 40000h ≥80 No Ø230*33mm cutout 200-210mm
20W 100-240V ≥0.9 2315 120° 5700K 40000h ≥80 No Ø230*33mm cutout 200-210mm
20W 230V ≥0.9 490 120° 3000K 40000h ≥80 Yes Ø230*33mm cutout 200-210mm
20W 230V ≥0.9 500 120° 4000K 40000h ≥80 Yes Ø230*33mm cutout 200-210mm
20W 230V ≥0.9 500 120° 5000K 40000h ≥80 Yes Ø230*33mm cutout 200-210mm
20W 230V ≥0.9 560 120° 5700K 40000h ≥80 Yes Ø230*33mm cutout 200-210mm
