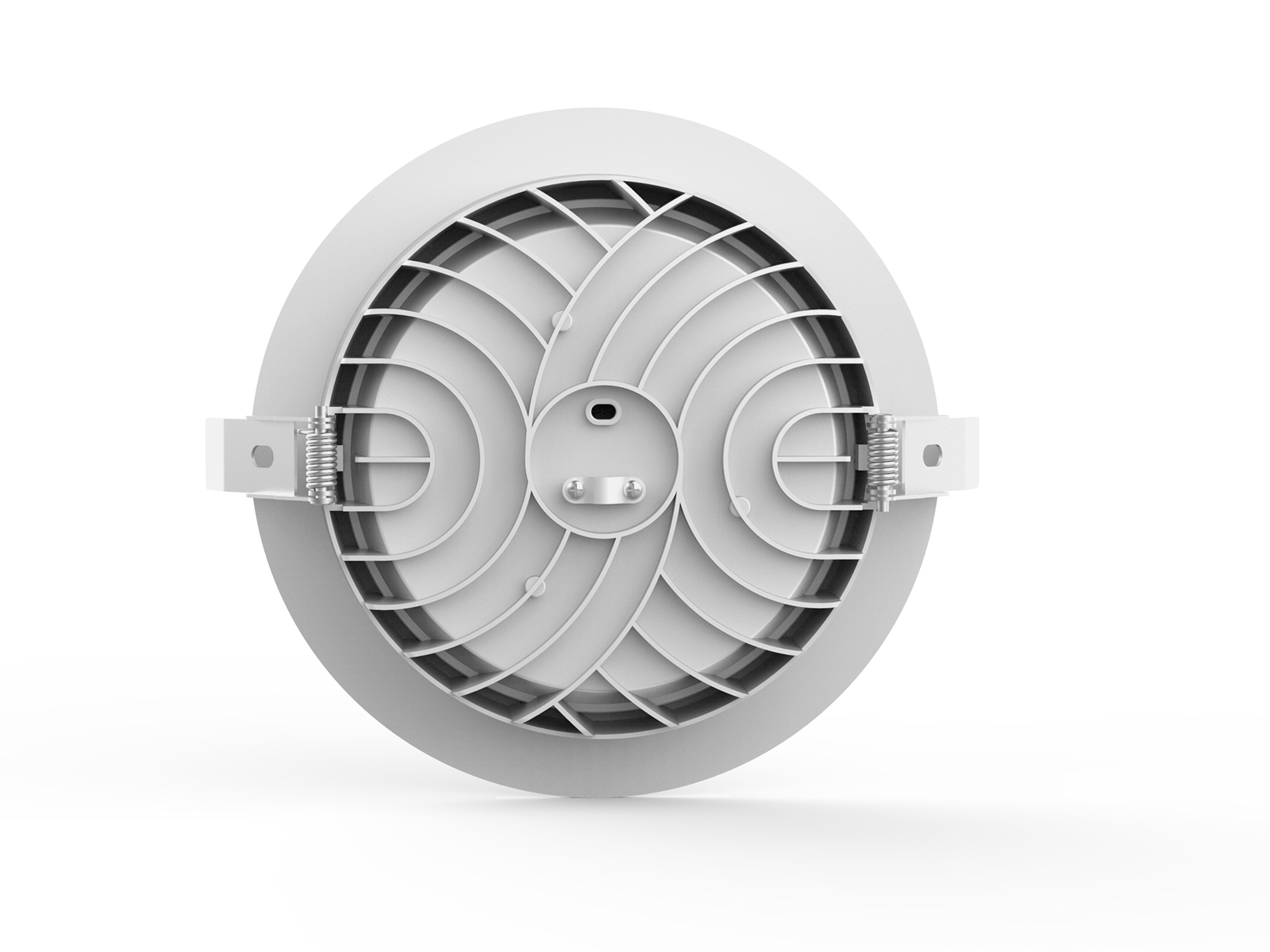

8 Inch LED Retrofit Recessed Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø200-210mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofeasy installation

APPLICATION AREAS

supermarket led lightingliving roomretail store lightingrestaurant lightingoffice lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

8 inch photometric diagram

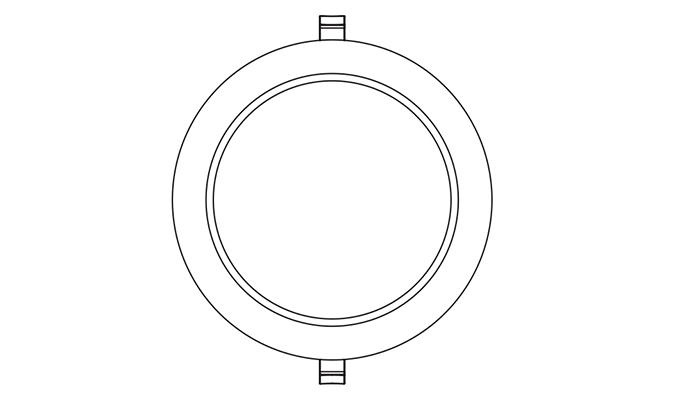

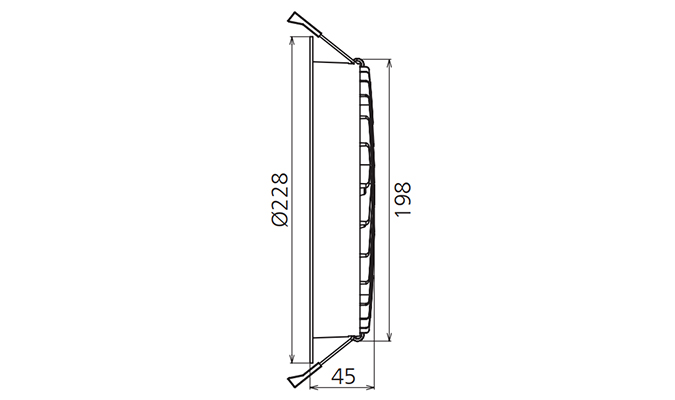

DIMENSION

8 inch downlight Technical Specification25w led downlight sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
25W AC230V ≥0.9 2420 90° 3000K 40000h ≥80 No Ø228*45mm cutout 200-210mm
25W AC230V ≥0.9 2500 90° 4000K 40000h ≥80 No Ø228*45mm cutout 200-210mm
25W AC230V ≥0.9 2550 90° 5000K 40000h ≥80 No Ø228*45mm cutout 200-210mm
25W AC230V ≥0.9 2600 90° 5700K 40000h ≥80 No Ø228*45mm cutout 200-210mm
25W AC230V ≥0.9 2370 90° 3000K 40000h ≥80 Yes Ø228*45mm cutout 200-210mm
25W AC230V ≥0.9 2450 90° 4000K 40000h ≥80 Yes Ø228*45mm cutout 200-210mm
25W AC230V ≥0.9 2500 90° 5000K 40000h ≥80 Yes Ø228*45mm cutout 200-210mm
25W AC230V ≥0.9 2550 90° 5700K 40000h ≥80 Yes Ø228*45mm cutout 200-210mm
