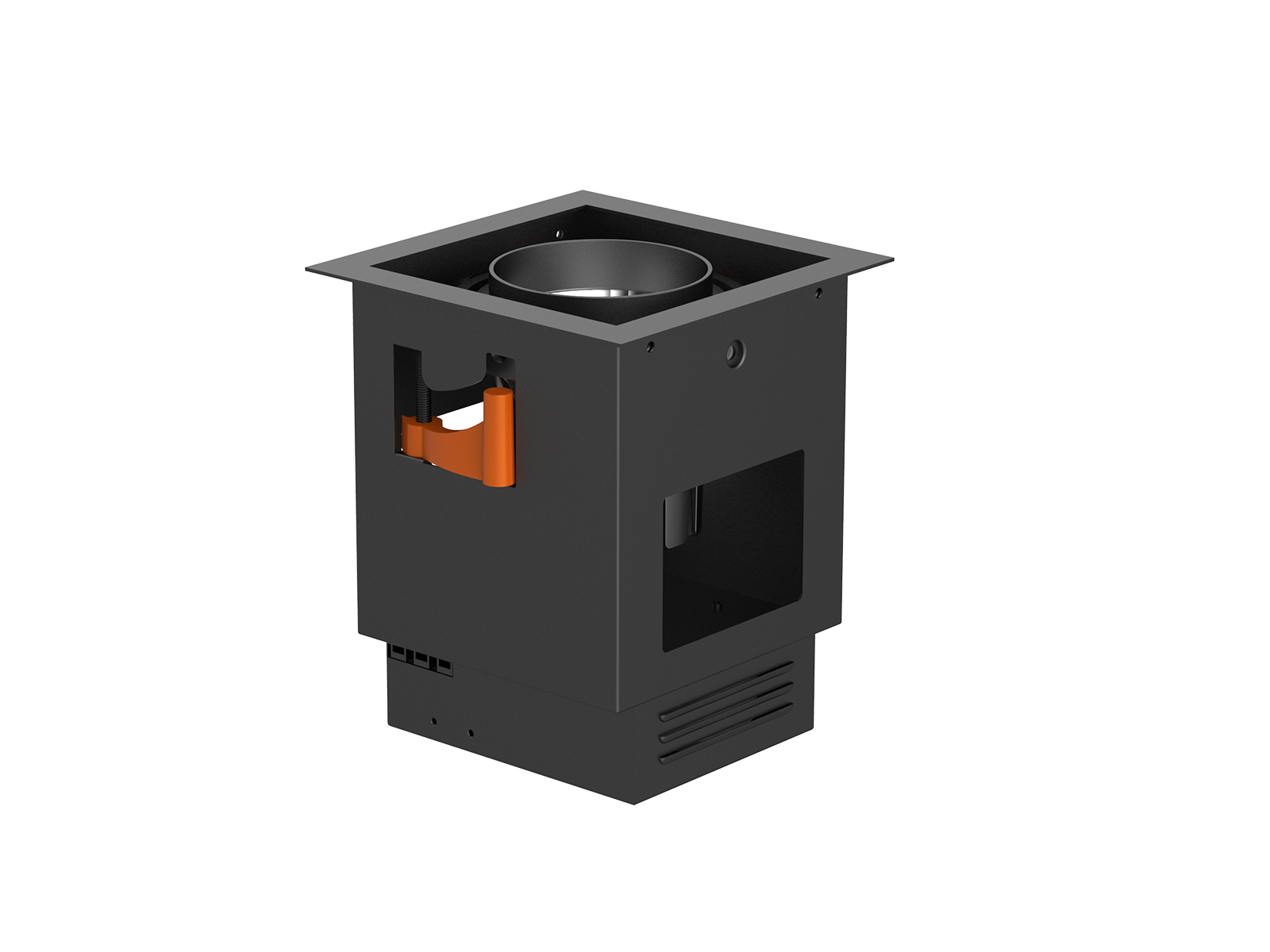

8W Rectangular LED Grille Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 24° wide beam angle
  • L85*W85mm cutout
  • CCT: 2700K 3000K 4000K 5000K
  • Adjustable and rotary
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 24 degreeip20 rating

APPLICATION AREAS

retail store lightingrestaurant lightingclassroom lightinginterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

8w polar diagram comparison

DIMENSION

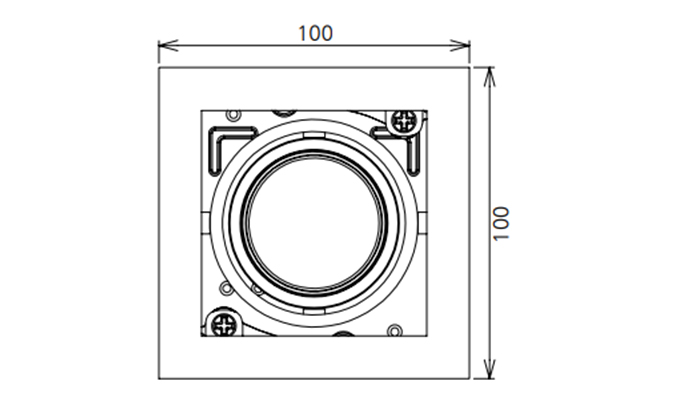

led grille light sizes

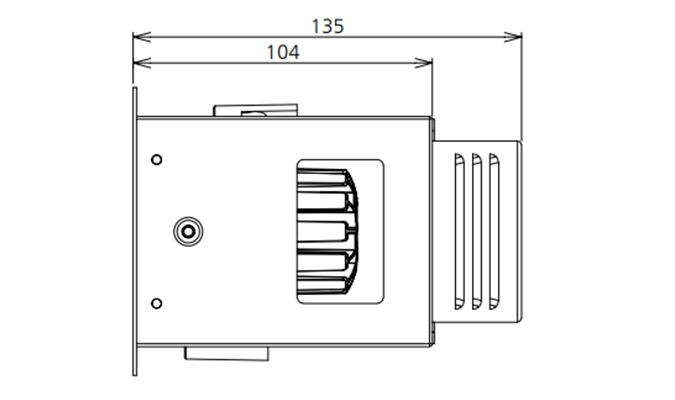

8watts lamp size guide

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimension
8W AC230V ≥0.9 460 24° 2700K 40000h ≥80 L100*W100*H135mm cutout L85*W85mm
8W AC230V ≥0.9 500 24° 3000K 40000h ≥80 L100*W100*H135mm cutout L85*W85mm
8W AC230V ≥0.9 550 24° 4000K 40000h ≥80 L100*W100*H135mm cutout L85*W85mm
8W AC230V ≥0.9 550 24° 5000K 40000h ≥80 L100*W100*H135mm cutout L85*W85mm
