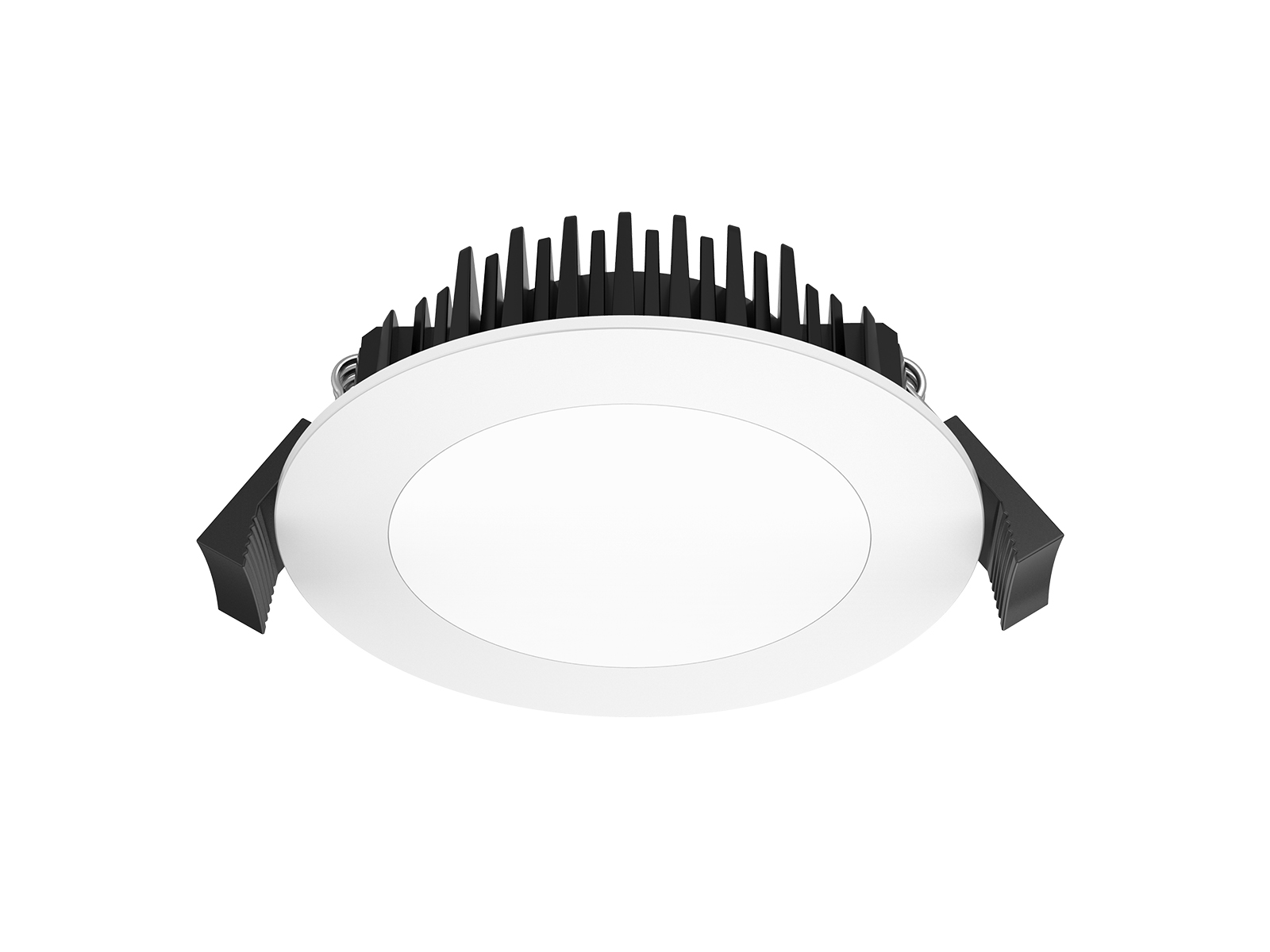

90MM 13W Downlight Kit

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim, 0-10V dim, DALI dim
  • 90° wide beam angle
  • 90-95mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degree ip20 ratingeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideasbedroombathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

bright white recessed downlight polar chart

DIMENSION

13w CCT LED Downlight

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
13W AC100-240V ≥0.9 1050 90° 3000K 40000h ≥80 No Ø104*31mm cutout 90-95mm
13W AC100-240V ≥0.9 1060 90° 4000K 40000h ≥80 No Ø104*31mm cutout 90-95mm
13W AC100-240V ≥0.9 1065 90° 5000K 40000h ≥80 No Ø104*31mm cutout 90-95mm
13W AC100-240V ≥0.9 1075 90° 5700K 40000h ≥80 No Ø104*31mm cutout 90-95mm
13W AC230V ≥0.9 960 90° 3000K 40000h ≥80 Yes Ø104*31mm cutout 90-95mm
13W AC230V ≥0.9 975 90° 4000K 40000h ≥80 Yes Ø104*31mm cutout 90-95mm
13W AC230V ≥0.9 980 90° 5000K 40000h ≥80 Yes Ø104*31mm cutout 90-95mm
13W AC230V ≥0.9 990 90° 5700K 40000h ≥80 Yes Ø104*31mm cutout 90-95mm
