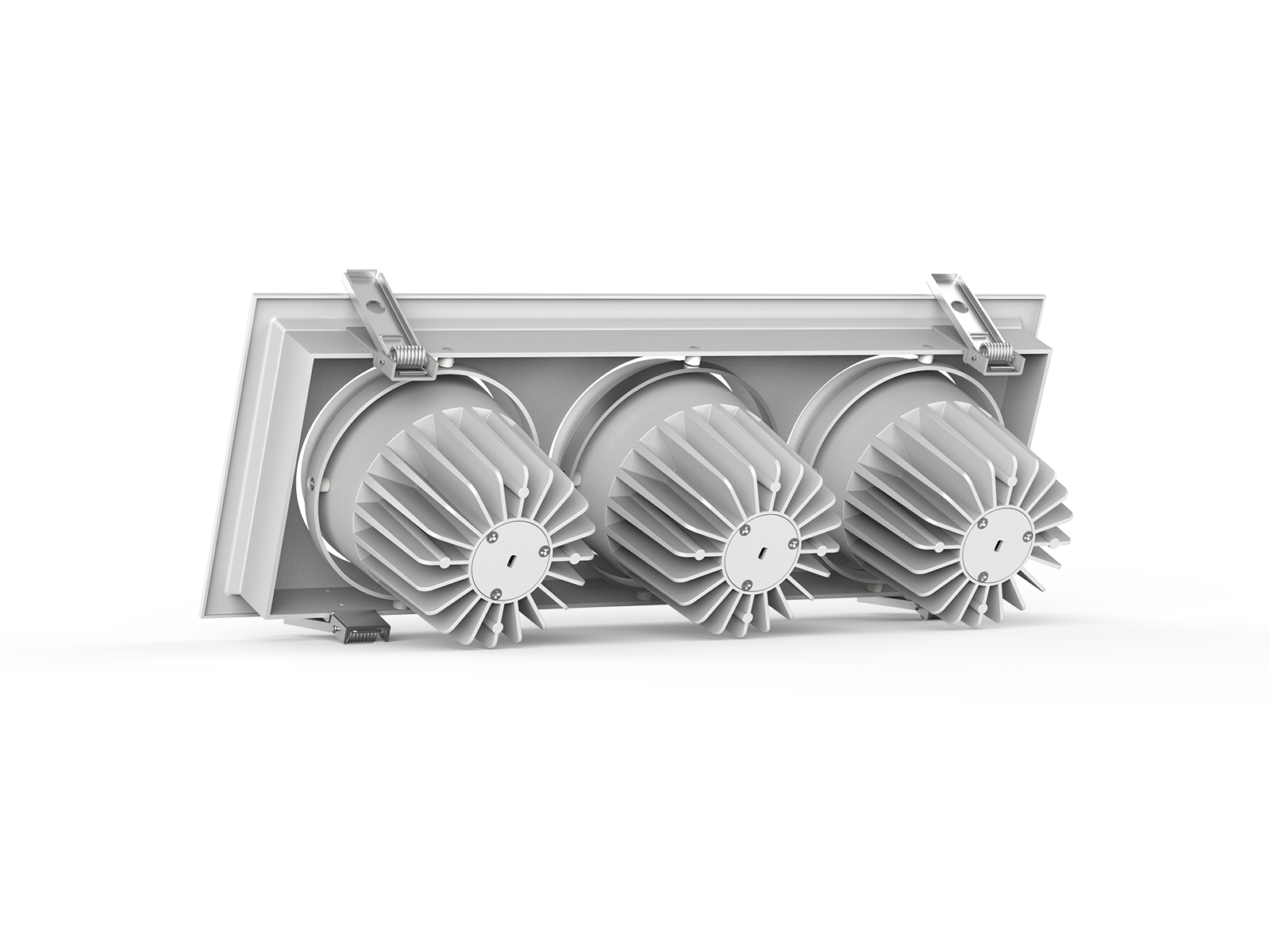

90W Triple Head LED Down Light

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 60° wide beam angle
  • L455*W160mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • Adjustable and rotary
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 60 degree ip20 ratingeasy installation

APPLICATION AREAS

retail store lightingrestaurant lightingoffice lightingclassroom lightinginterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

90w Grille Downlight photometric data

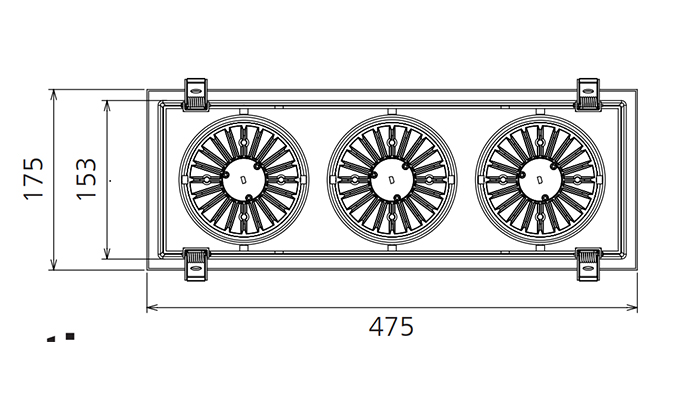

DIMENSION

Led Ceiling Grille Downlight Dimensionsrectangular led downlight Technical Specification

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimension
90W AC230V ≥0.9 8280 60° 3000K 40000h ≥80 L475*W175*H135mm cutout L455*W160mm
90W AC230V ≥0.9 8730 60° 4000K 40000h ≥80 L475*W175*H135mm cutout L455*W160mm
90W AC230V ≥0.9 9630 60° 5000K 40000h ≥80 L475*W175*H135mm cutout L455*W160mm
90W AC230V ≥0.9 9630 60° 5700K 40000h ≥80 L475*W175*H135mm cutout L455*W160mm
90W AC230V ≥0.9 7920 60° 3000K 40000h ≥80 L475*W175*H135mm cutout L455*W160mm
90W AC230V ≥0.9 8370 60° 4000K 40000h ≥80 L475*W175*H135mm cutout L455*W160mm
90W AC230V ≥0.9 9180 60° 5000K 40000h ≥80 L475*W175*H135mm cutout L455*W160mm
90W AC230V ≥0.9 9180 60° 5700K 40000h ≥80 L475*W175*H135mm cutout L455*W160mm
