2.5 Inch IP54 Chrome Surface Downlight 7W

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø70-75mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofeasy installation

APPLICATION AREAS

bathroomrestaurant lightingoffice lightingsupermarket led lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

2.5 inch 7w polar chart

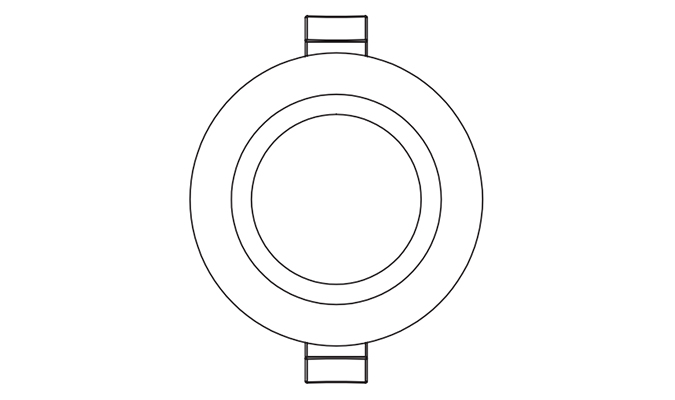

DIMENSION

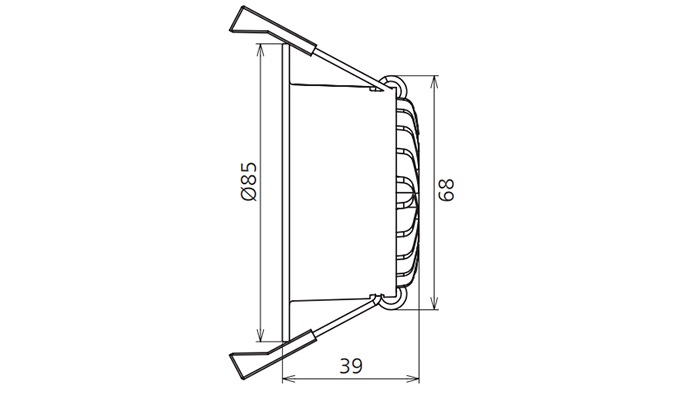

Dimensions 75mm cut outCommercial 2.5 inch Downlight Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
7W AC230V ≥0.9 510 90° 3000K 40000h ≥80 No Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 530 90° 4000K 40000h ≥80 No Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 560 90° 5000K 40000h ≥80 No Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 570 90° 5700K 40000h ≥80 No Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 500 90° 3000K 40000h ≥80 Yes Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 510 90° 4000K 40000h ≥80 Yes Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 540 90° 5000K 40000h ≥80 Yes Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 560 90° 5700K 40000h ≥80 Yes Ø85*39mm cutout 70-75mm
