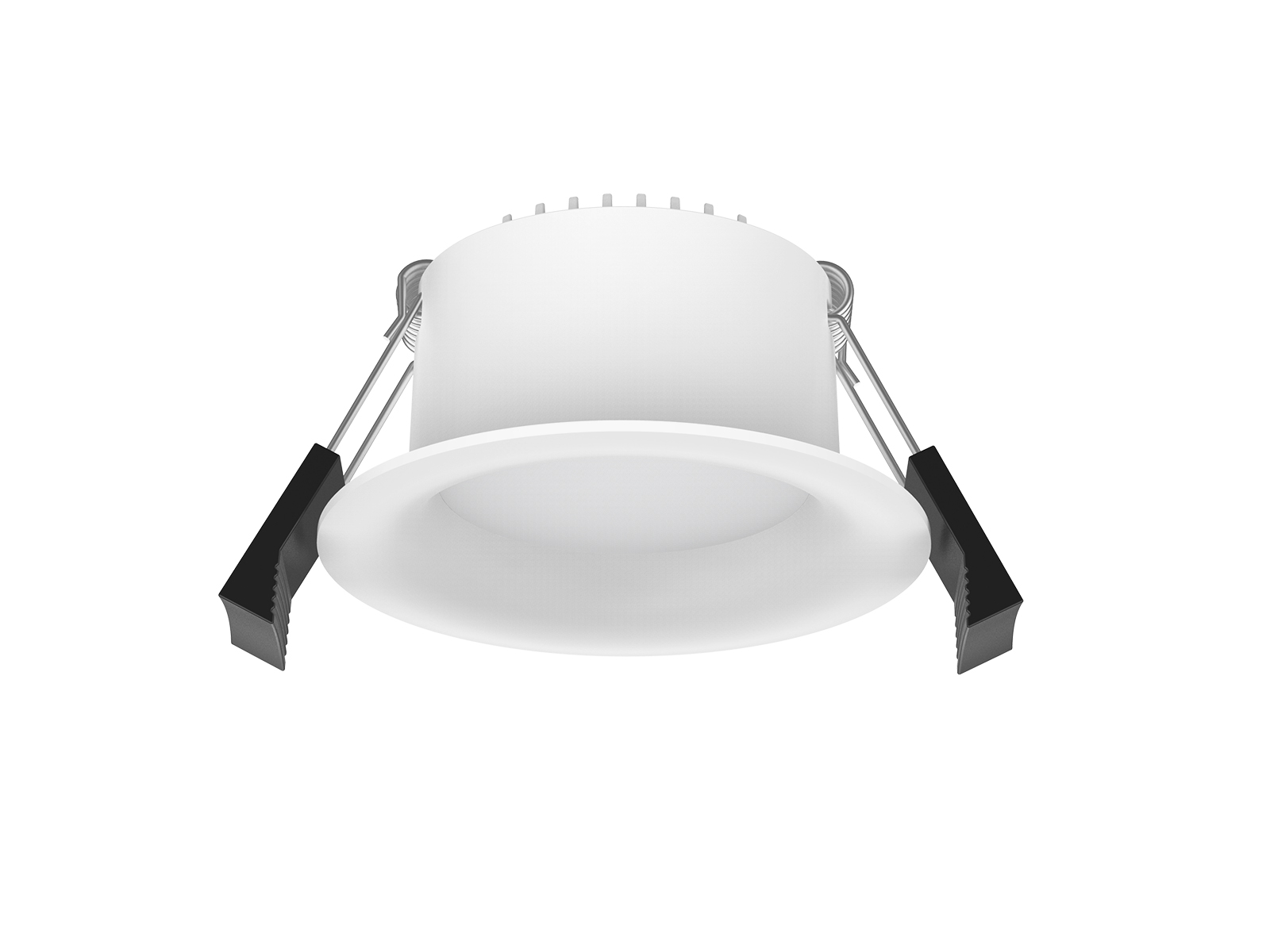

IP54 Waterproof LED Recessed Downlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 90° wide beam angle
  • 70mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofeasy installation

APPLICATION AREAS

bathroomsupermarket led lightingretail store lightinginterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

10w photometric data

DIMENSION

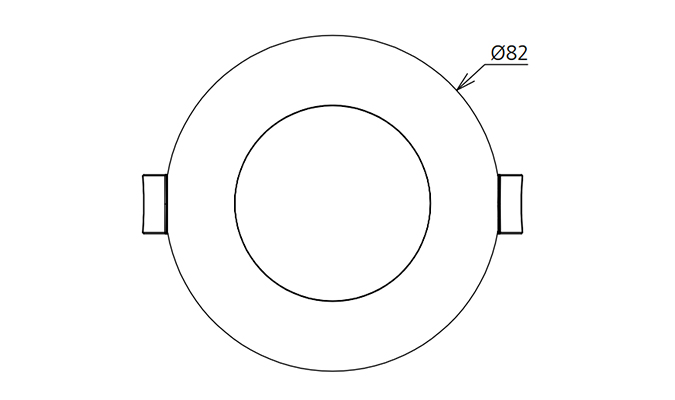

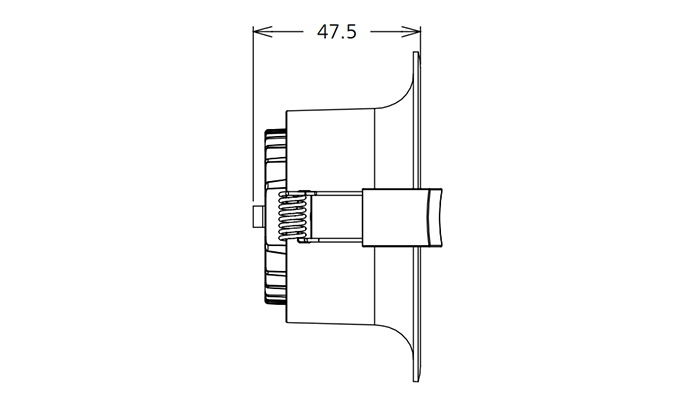

2.5inch Dimensions Diagram70mm cutout lamp size guide

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W 230V ≥0.9 740 90° 3000K 40000h ≥80 No Ø82*47.5mm cutout 70mm
10W 230V ≥0.9 820 90° 4000K 40000h ≥80 No Ø82*47.5mm cutout 70mm
10W 230V ≥0.9 810 90° 5000K 40000h ≥80 No Ø82*47.5mm cutout 70mm
10W 230V ≥0.9 820 90° 5700K 40000h ≥80 No Ø82*47.5mm cutout 70mm
10W 230V ≥0.9 720 90° 3000K 40000h ≥80 Yes Ø82*47.5mm cutout 70mm
10W 230V ≥0.9 810 90° 4000K 40000h ≥80 Yes Ø82*47.5mm cutout 70mm
10W 230V ≥0.9 790 90° 5000K 40000h ≥80 Yes Ø82*47.5mm cutout 70mm
10W 230V ≥0.9 810 90° 5700K 40000h ≥80 Yes Ø82*47.5mm cutout 70mm
