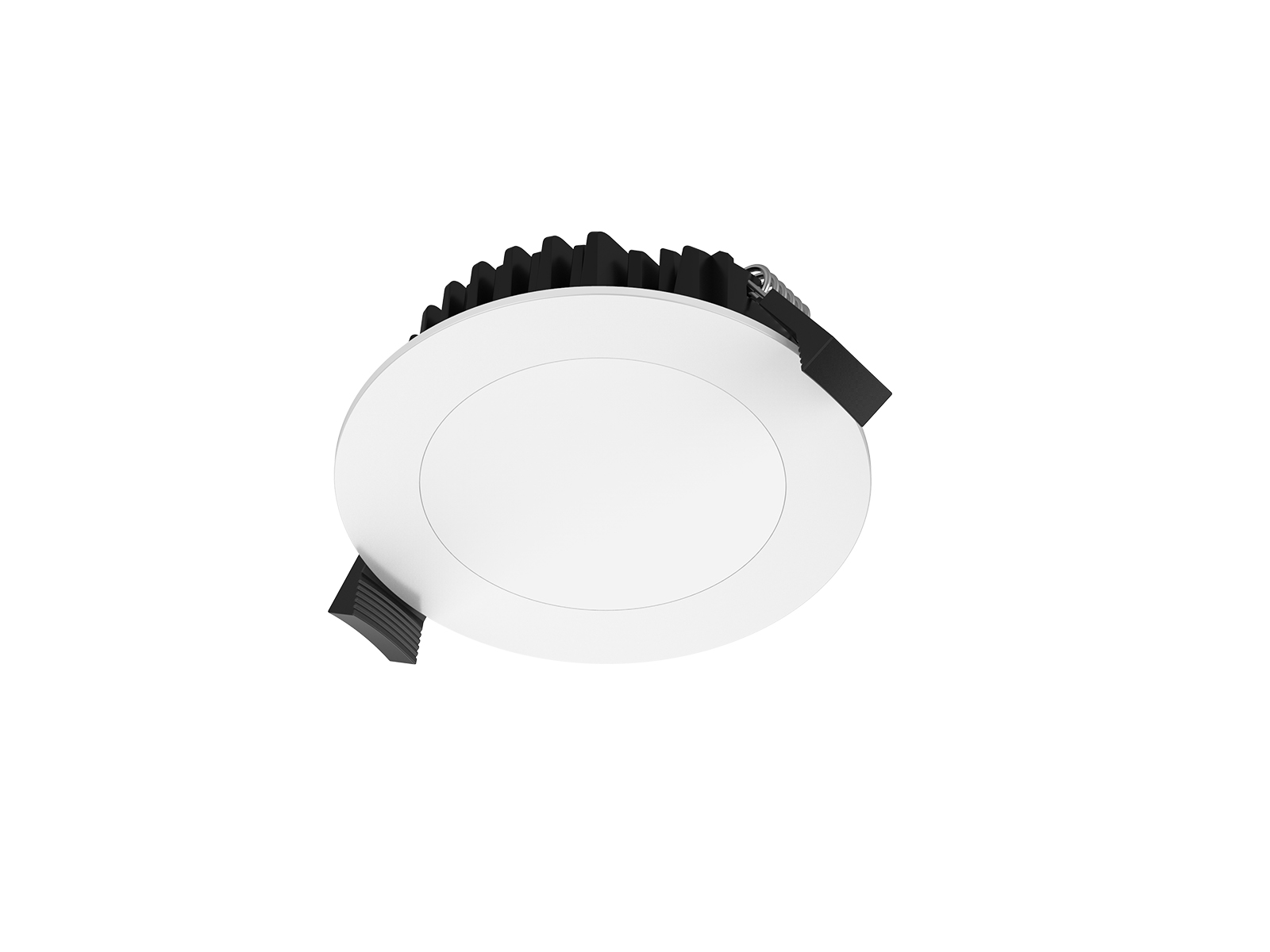

2.5 Inch Mini Downlight 7W

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim, 0-10V dim
  • 90° wide beam angle
  • 70-75mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degree ip20 ratingeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideasbedroombathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

90 degree angle led downlight polar curve

DIMENSION

75MM CUTOUT NON DIMMABLE DOWNLIGHT2.5inch LED Downlight with Diffuser

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
7W AC100-240V ≥0.9 430 90° 3000K 40000h ≥80 No Ø85*31mm cutout 70-75mm
7W AC100-240V ≥0.9 450 90° 4000K 40000h ≥80 No Ø85*31mm cutout 70-75mm
7W AC100-240V ≥0.9 460 90° 5000K 40000h ≥80 No Ø85*31mm cutout 70-75mm
7W AC100-240V ≥0.9 480 90° 5700K 40000h ≥80 No Ø85*31mm cutout 70-75mm
7W AC230V ≥0.9 400 90° 3000K 40000h ≥80 Yes Ø85*31mm cutout 70-75mm
7W AC230V ≥0.9 420 90° 4000K 40000h ≥80 Yes Ø85*31mm cutout 70-75mm
7W AC230V ≥0.9 440 90° 5000K 40000h ≥80 Yes Ø85*31mm cutout 70-75mm
7W AC230V ≥0.9 460 90° 5700K 40000h ≥80 Yes Ø85*31mm cutout 70-75mm
