2.5 Inch Mini LED Downlights 7W

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 15°/24°/38°/60° wide beam angle
  • 68-74mm cutout
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled 15 degree beam angleled beam angle 24 degree38 beam angleled beam angle 60 degreeip20 rating easy installation

APPLICATION AREAS

office lightingclassroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

2.5 inch Living room ceiling Downlights

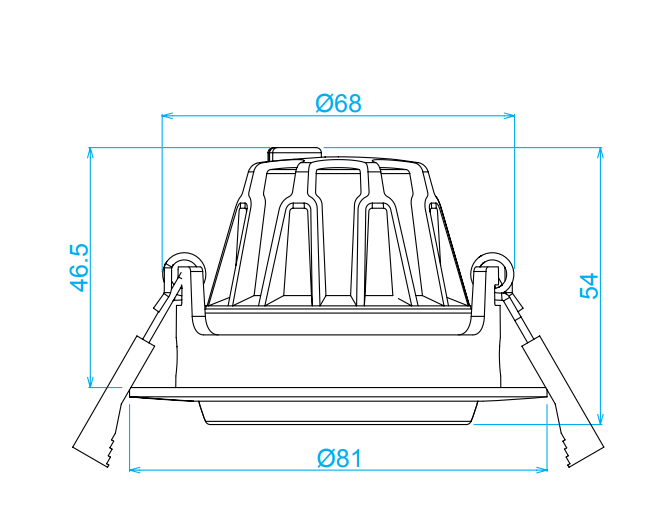

DIMENSION

70mm cutout Mini downlight

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
7W AC230V ≥0.85 455 15°/24°/38°/60° 2700K 40000h ≥80 No Ø81*54mm cutout 68-74mm
7W AC230V ≥0.85 470 15°/24°/38°/60° 3000K 40000h ≥80 No Ø81*54mm cutout 68-74mm
7W AC230V ≥0.85 530 15°/24°/38°/60° 4000K 40000h ≥80 No Ø81*54mm cutout 68-74mm
7W AC230V ≥0.85 540 15°/24°/38°/60° 5000K 40000h ≥80 No Ø81*54mm cutout 68-74mm
7W AC230V ≥0.85 430 15°/24°/38°/60° 2700K 40000h ≥80 Yes Ø81*54mm cutout 68-74mm
7W AC230V ≥0.85 440 15°/24°/38°/60° 3000K 40000h ≥80 Yes Ø81*54mm cutout 68-74mm
7W AC230V ≥0.85 500 15°/24°/38°/60° 4000K 40000h ≥80 Yes Ø81*54mm cutout 68-74mm
7W AC230V ≥0.85 510 15°/24°/38°/60° 5000K 40000h ≥80 Yes Ø81*54mm cutout 68-74mm
