2.5 Inch Recessed Adjustable Downlight 10W

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 36°/60° wide beam angle
  • Ø84mm cutout
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor36 degree beam angleled beam angle 60 degreeip40 rating easy installation

APPLICATION AREAS

office lightingclassroom lightinginterior lighting ideasbedroomkitchenretail store lightingbathroom



CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

high efficiency COB LED Downlight

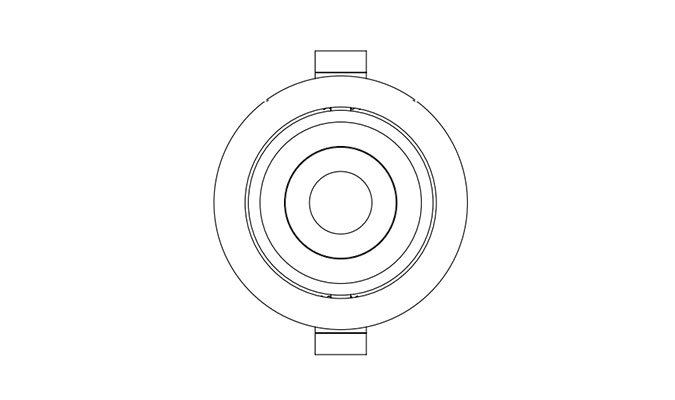

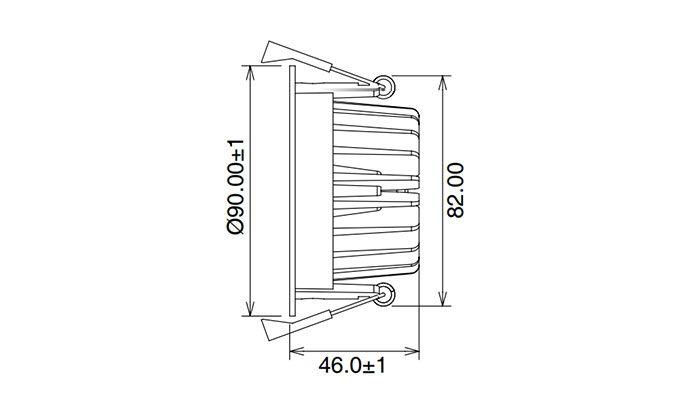

DIMENSION

2.5inch recessed downlight10w LED Recessed Down Light

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W 230V ≥0.85 870 36°/60° 2700K 40000h ≥80 No Ø90*46mm cutout 84mm
10W 230V ≥0.85 890 36°/60° 3000K 40000h ≥80 No Ø90*46mm cutout 84mm
10W 230V ≥0.85 980 36°/60° 4000K 40000h ≥80 No Ø90*46mm cutout 84mm
10W 230V ≥0.85 1010 36°/60° 5000K 40000h ≥80 No Ø90*46mm cutout 84mm
10W 230V ≥0.85 850 36°/60° 2700K 40000h ≥80 Yes Ø90*46mm cutout 84mm
10W 230V ≥0.85 860 36°/60° 3000K 40000h ≥80 Yes Ø90*46mm cutout 84mm
10W 230V ≥0.85 960 36°/60° 4000K 40000h ≥80 Yes Ø90*46mm cutout 84mm
10W 230V ≥0.85 970 36°/60° 5000K 40000h ≥80 Yes Ø90*46mm cutout 84mm
