Round Waterproof 10W LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable with triac dimmer
  • 100° wide beam angle
  • 90-100mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor100 degree beam angleip54 waterproofeasy installationDimmable

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lightingbathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certificationIC Rating

POLAR DIAGRAM COMPARISON

10 Watts waterproof downlight polar curve

DIMENSION

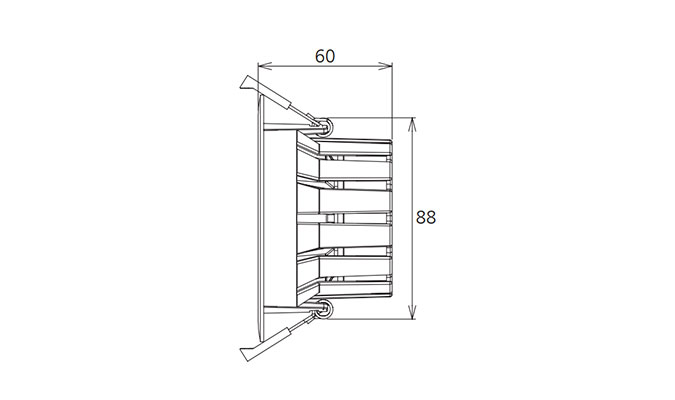

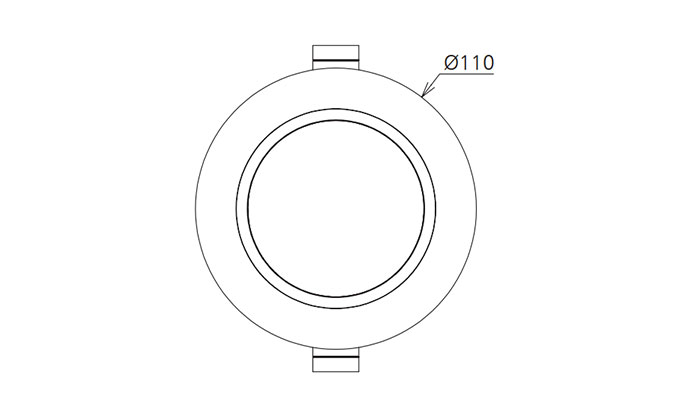

3 inch round led downlight Dimensions100mm recessed downlight

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC230V ≥0.9 770 100° 3000K 40000h ≥80 Yes Ø110*60mm cutout 90-100mm
10W AC230V ≥0.9 950 100° 4000K 40000h ≥80 Yes Ø110*60mm cutout 90-100mm
10W AC230V ≥0.9 890 100° 5000K 40000h ≥80 Yes Ø110*60mm cutout 90-100mm
10W AC230V ≥0.9 940 100° 5700K 40000h ≥80 Yes Ø110*60mm cutout 90-100mm
