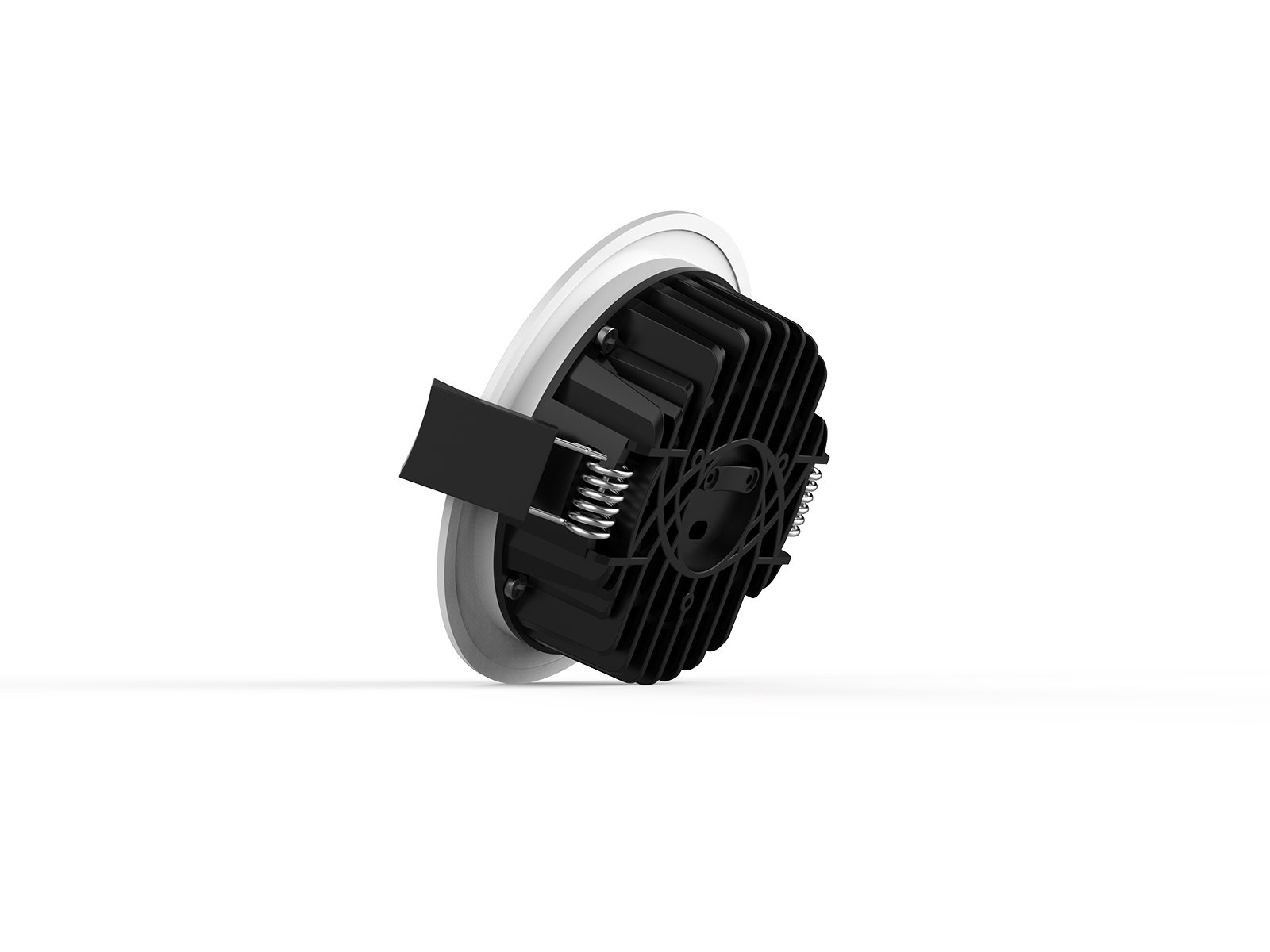

2.5 Inch Silver LED Downlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim, 0-10V dim
  • 90° wide beam angle
  • 70-75mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degree ip20 ratingeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideasbedroombathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

DALI dimmable LED Down light polar chart

DIMENSION

75MM CUTOUT NON DIMMABLE DOWNLIGHT2.5inch LED Downlight with Diffuser

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC100-240V ≥0.9 700 90° 3000K 40000h ≥80 No Ø85*31mm cutout 70-75mm
10W AC100-240V ≥0.9 720 90° 4000K 40000h ≥80 No Ø85*31mm cutout 70-75mm
10W AC100-240V ≥0.9 730 90° 5000K 40000h ≥80 No Ø85*31mm cutout 70-75mm
10W AC100-240V ≥0.9 740 90° 5700K 40000h ≥80 No Ø85*31mm cutout 70-75mm
10W AC230V ≥0.9 660 90° 3000K 40000h ≥80 Yes Ø85*31mm cutout 70-75mm
10W AC230V ≥0.9 680 90° 4000K 40000h ≥80 Yes Ø85*31mm cutout 70-75mm
10W AC230V ≥0.9 690 90° 5000K 40000h ≥80 Yes Ø85*31mm cutout 70-75mm
10W AC230V ≥0.9 700 90° 5700K 40000h ≥80 Yes Ø85*31mm cutout 70-75mm
