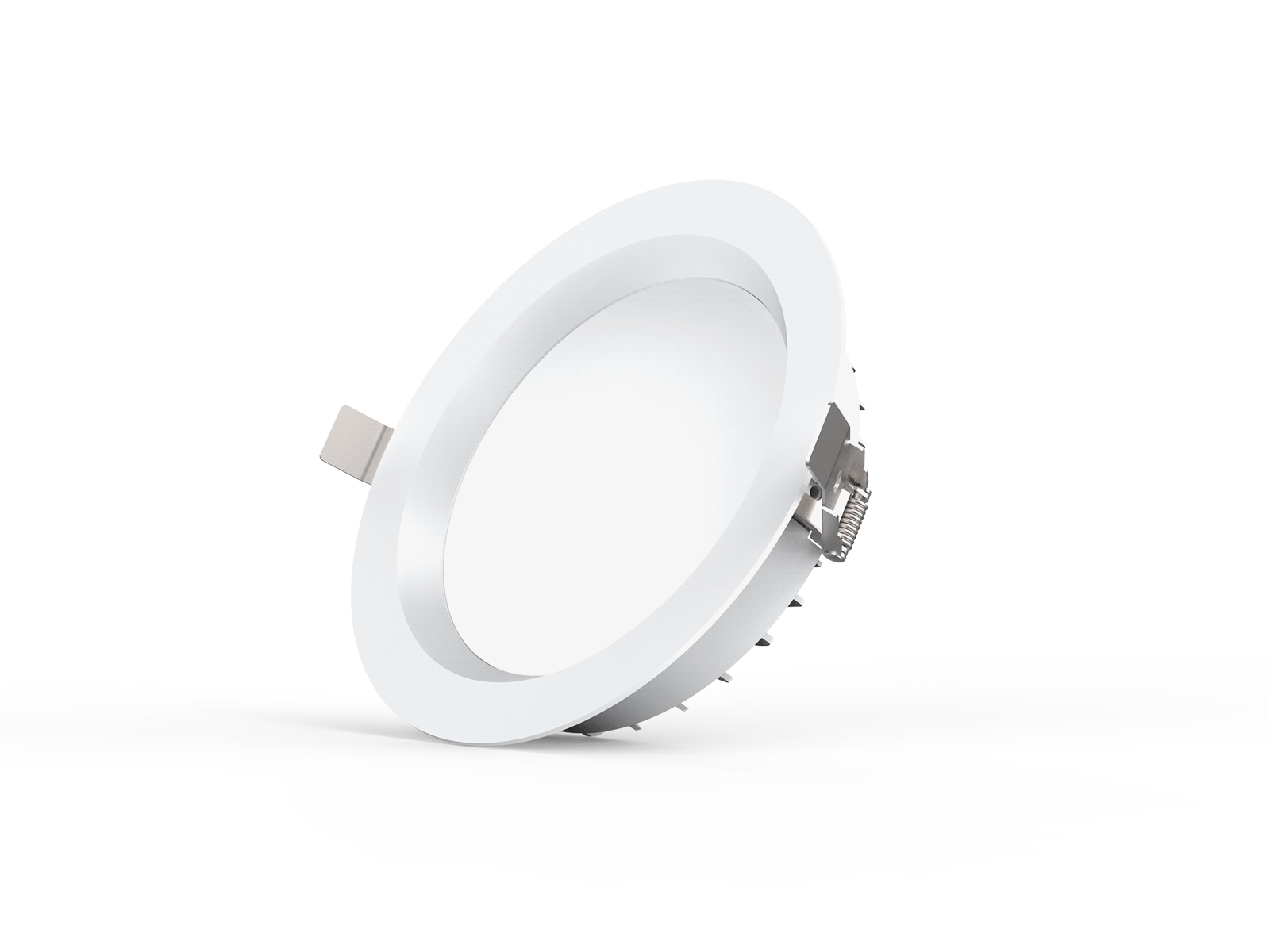

Six Inch 4000K LED Downlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø160-170mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofeasy installation

APPLICATION AREAS

bathroomliving roomclassroom lightingretail store lighting designsupermarket led lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

25w polar luminous intensity graph

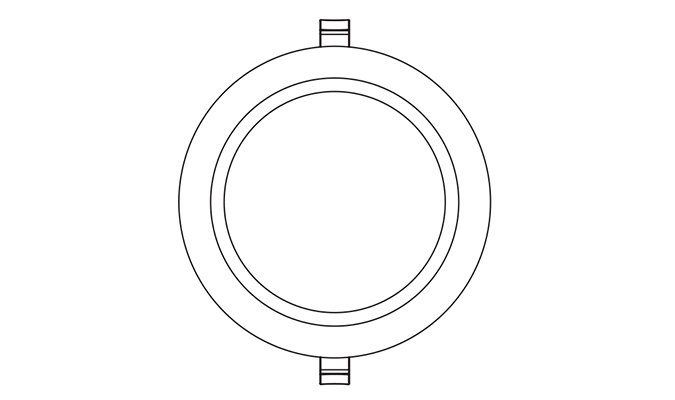

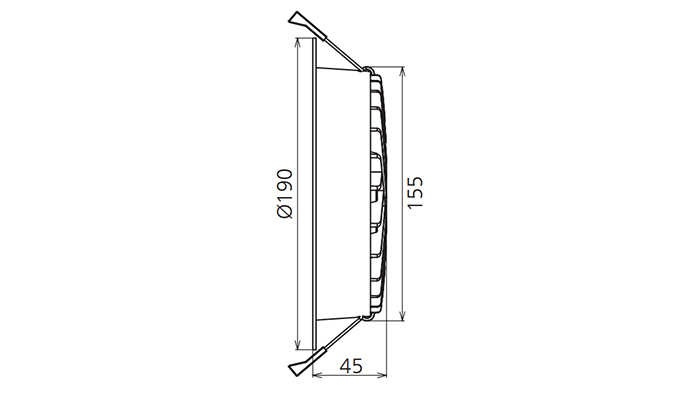

DIMENSION

Dimensions 170mm cut outDimensions 170mm

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
25W AC230V 25W 2420 90° 3000K 40000h ≥80 No Ø190*45mm cutout 160-170mm
25W AC230V 25W 2500 90° 4000K 40000h ≥80 No Ø190*45mm cutout 160-170mm
25W AC230V 25W 2540 90° 5000K 40000h ≥80 No Ø190*45mm cutout 160-170mm
25W AC230V 25W 2590 90° 5700K 40000h ≥80 No Ø190*45mm cutout 160-170mm
25W AC230V 25W 2370 90° 3000K 40000h ≥80 Yes Ø190*45mm cutout 160-170mm
25W AC230V 25W 2440 90° 4000K 40000h ≥80 Yes Ø190*45mm cutout 160-170mm
25W AC230V 25W 2500 90° 5000K 40000h ≥80 Yes Ø190*45mm cutout 160-170mm
25W AC230V 25W 2540 90° 5700K 40000h ≥80 Yes Ø190*45mm cutout 160-170mm
