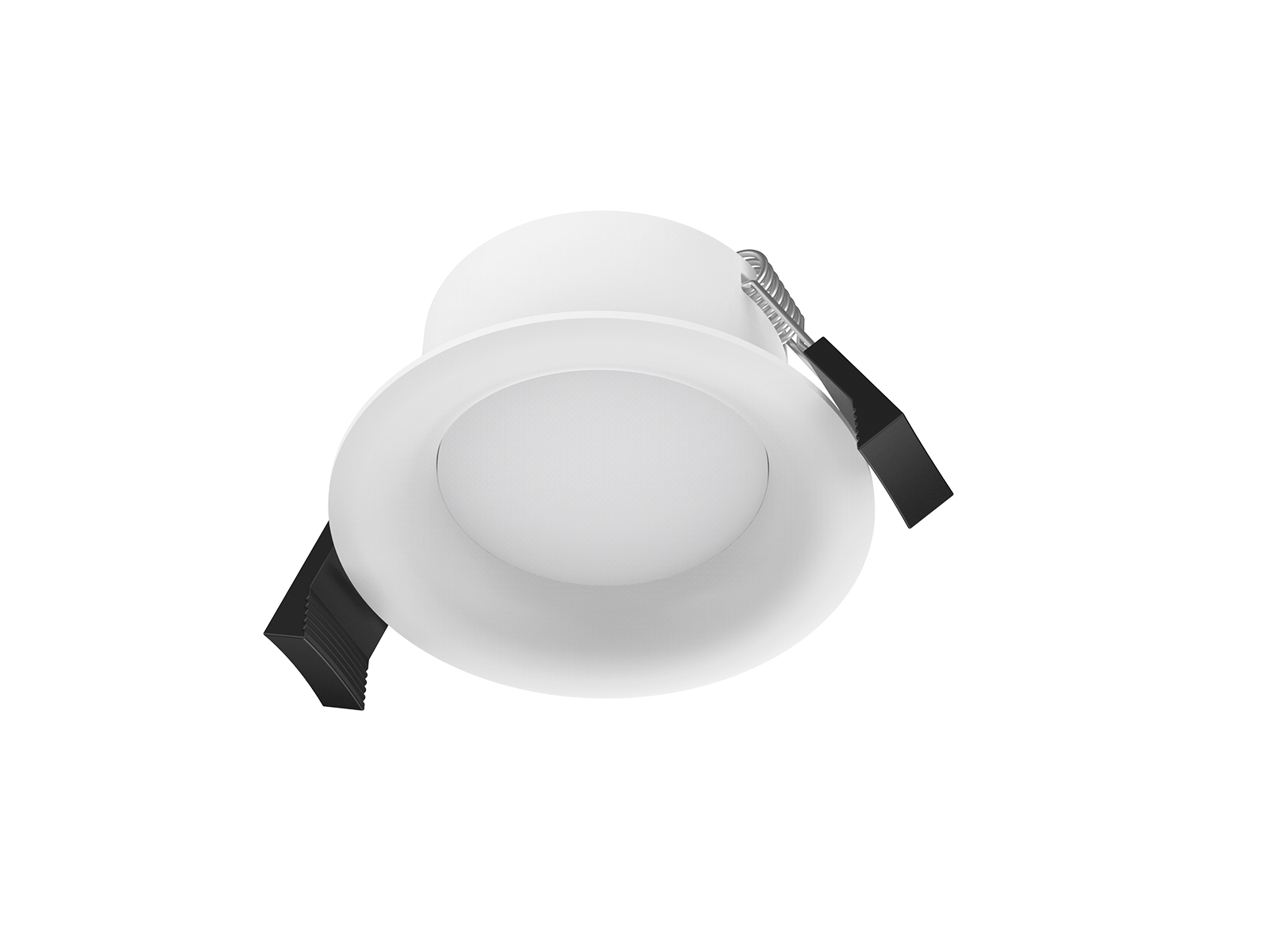

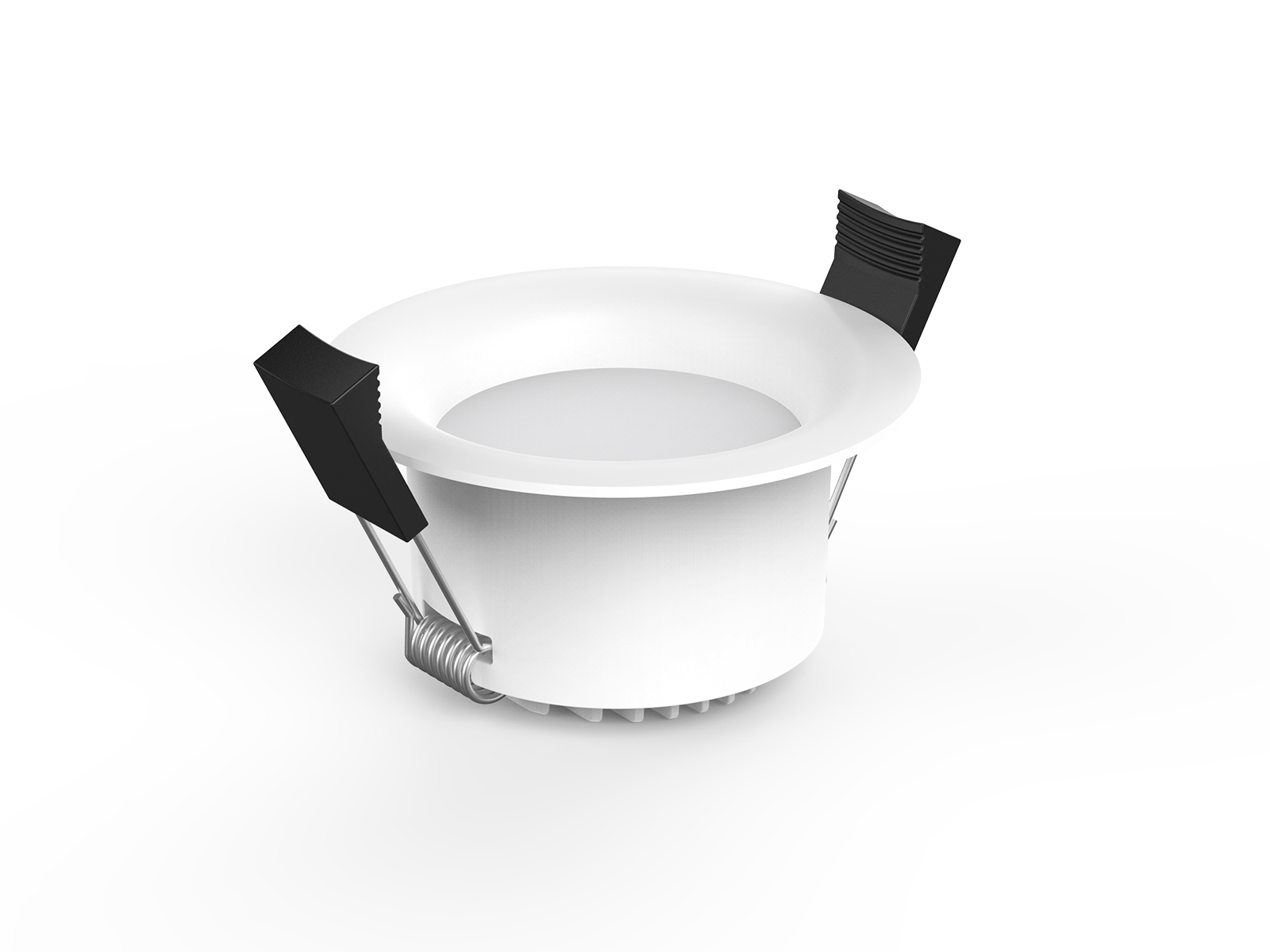

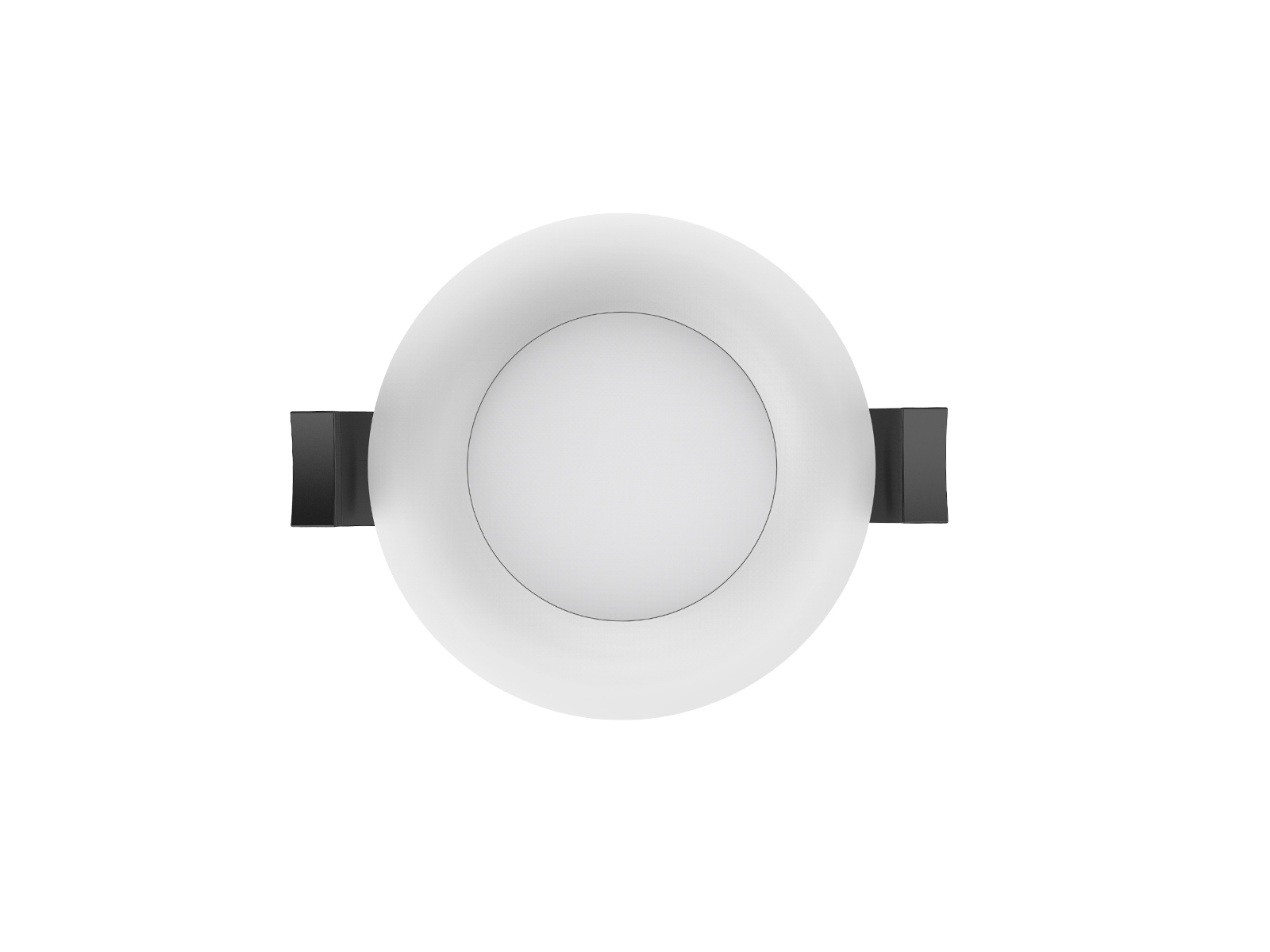

2.5 Inch SMD LED Down Light

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 90° wide beam angle
  • 70mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofeasy installation

APPLICATION AREAS

retail store lightingsupermarket led lightingretail store lighting designhotel lighting designbathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

5w photometric diagram

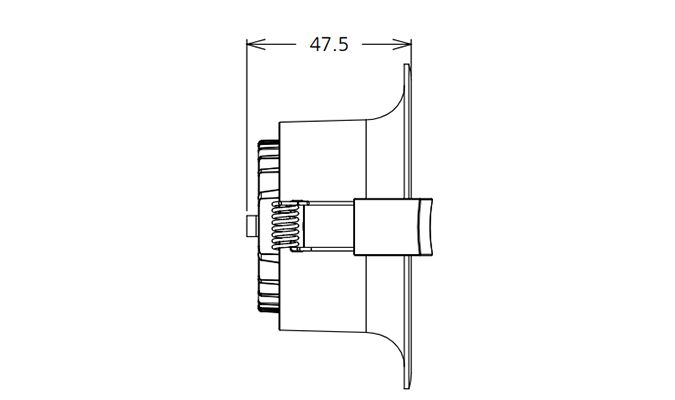

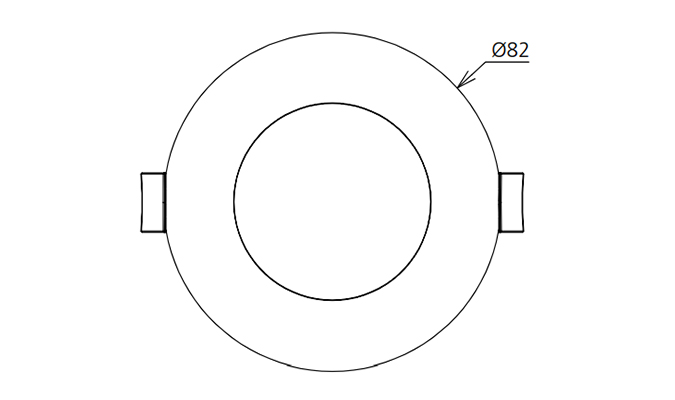

DIMENSION

Dimensions 70mm cut out2.5 inch led downlight sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimension Dimmable
5W 230V ≥0.9 340 90° 3000K 40000h ≥80 No Ø82*47.5mm cutout 70mm
5W 230V ≥0.9 390 90° 4000K 40000h ≥80 No Ø82*47.5mm cutout 70mm
5W 230V ≥0.9 375 90° 5000K 40000h ≥80 No Ø82*47.5mm cutout 70mm
5W 230V ≥0.9 385 90° 5700K 40000h ≥80 No Ø82*47.5mm cutout 70mm
5W 230V ≥0.9 340 90° 3000K 40000h ≥80 Yes Ø82*47.5mm cutout 70mm
5W 230V ≥0.9 390 90° 4000K 40000h ≥80 Yes Ø82*47.5mm cutout 70mm
5W 230V ≥0.9 375 90° 5000K 40000h ≥80 Yes Ø82*47.5mm cutout 70mm
5W 230V ≥0.9 385 90° 5700K 40000h ≥80 Yes Ø82*47.5mm cutout 70mm
