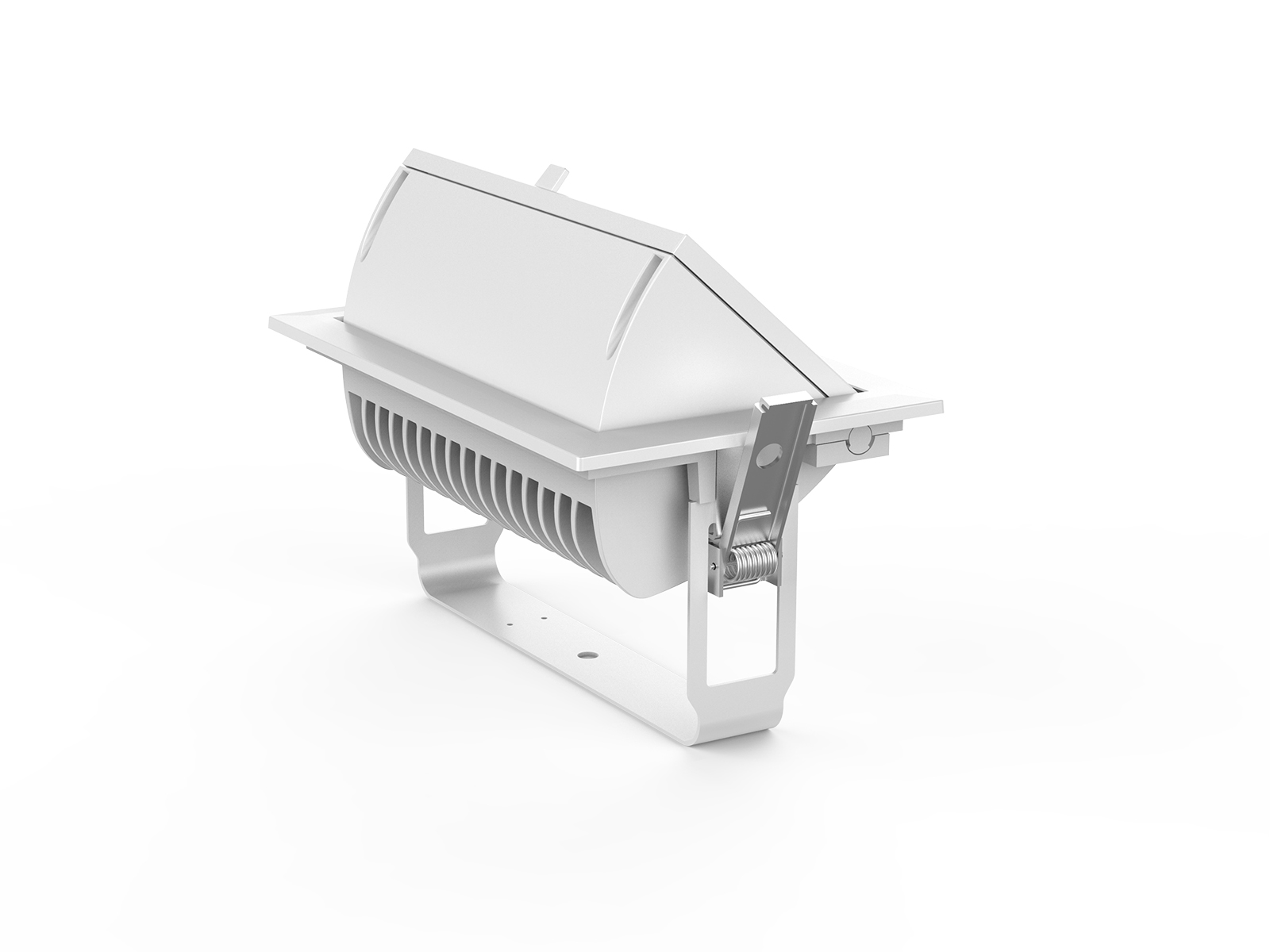

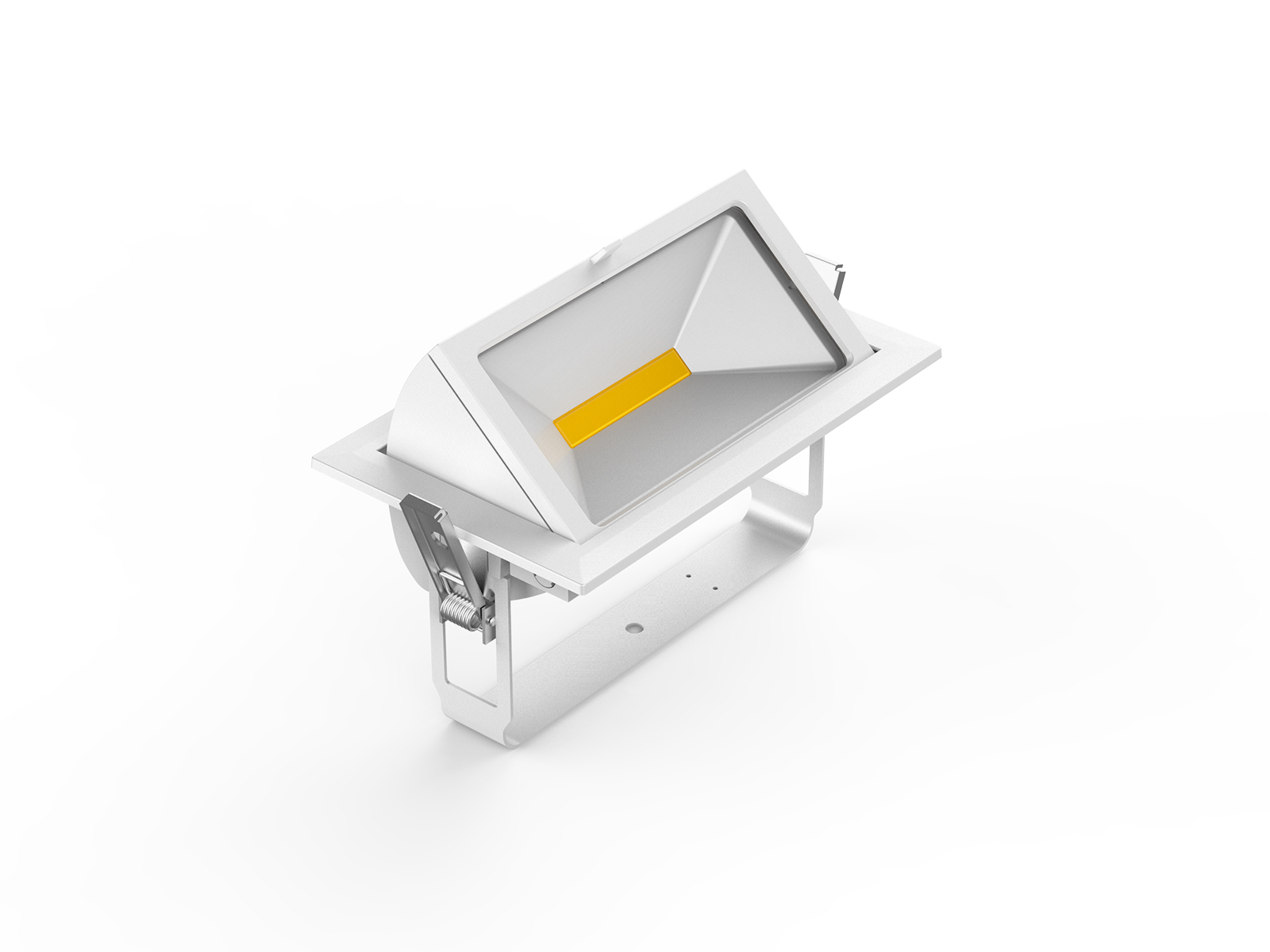

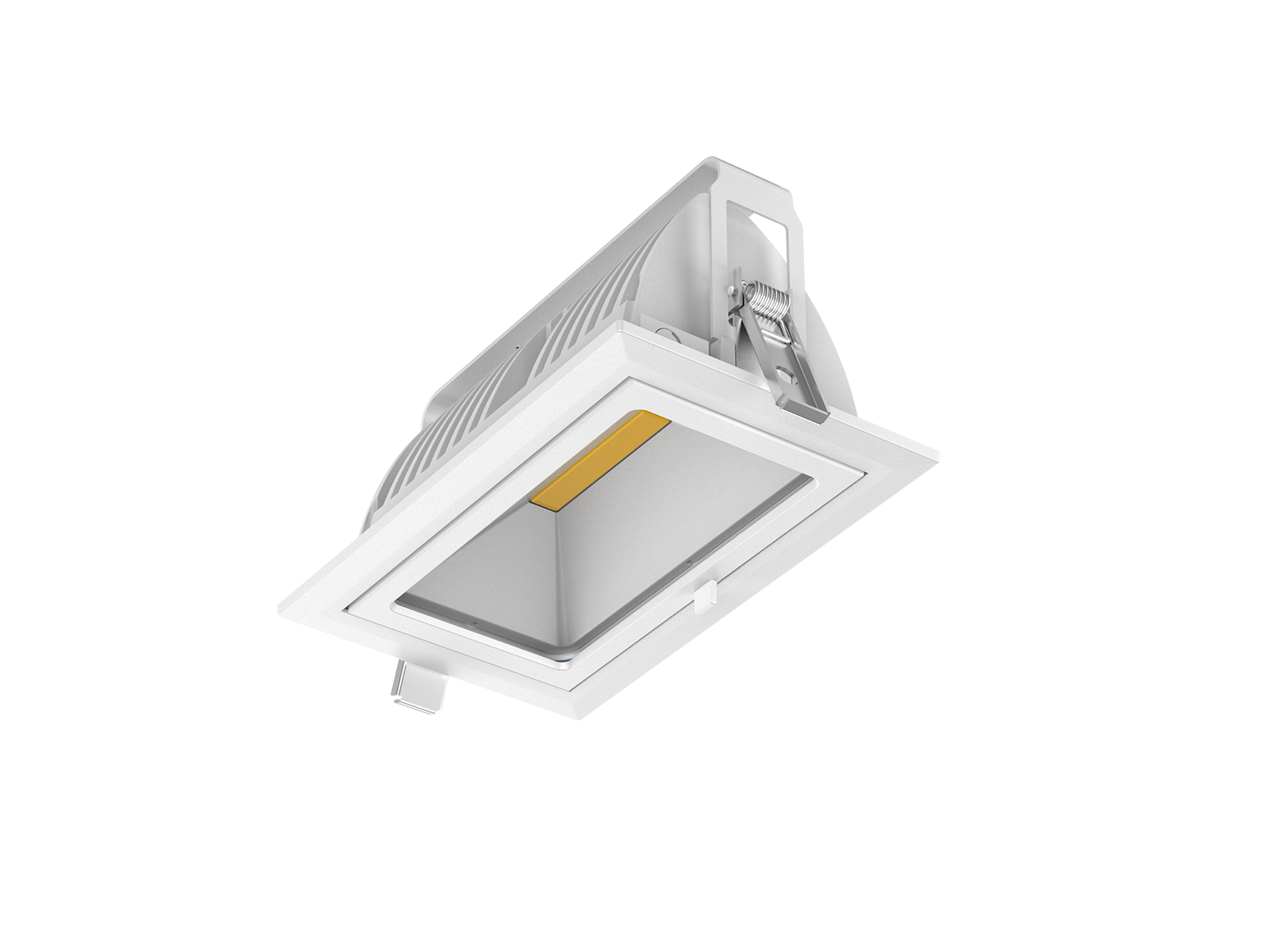

Waterproof 45W Rectangular Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 120° wide beam angle
  • L220XW130mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor120 degree beam angle ip20 ratingip65 waterproofeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideasbathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

45watts rectangular downlight photometric diagram

DIMENSION

Down light 130mm cut out sizesIP65 waterproof downlight Dimensions Diagram

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
45W AC100-240V ≥0.9 3550 120° 3000K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
45W AC100-240V ≥0.9 3750 120° 4000K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
45W AC100-240V ≥0.9 3850 120° 5000K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
45W AC100-240V ≥0.9 3700 120° 5700K 40000h ≥80 No L235*W145*H117.4mm cutout L220*W130mm
