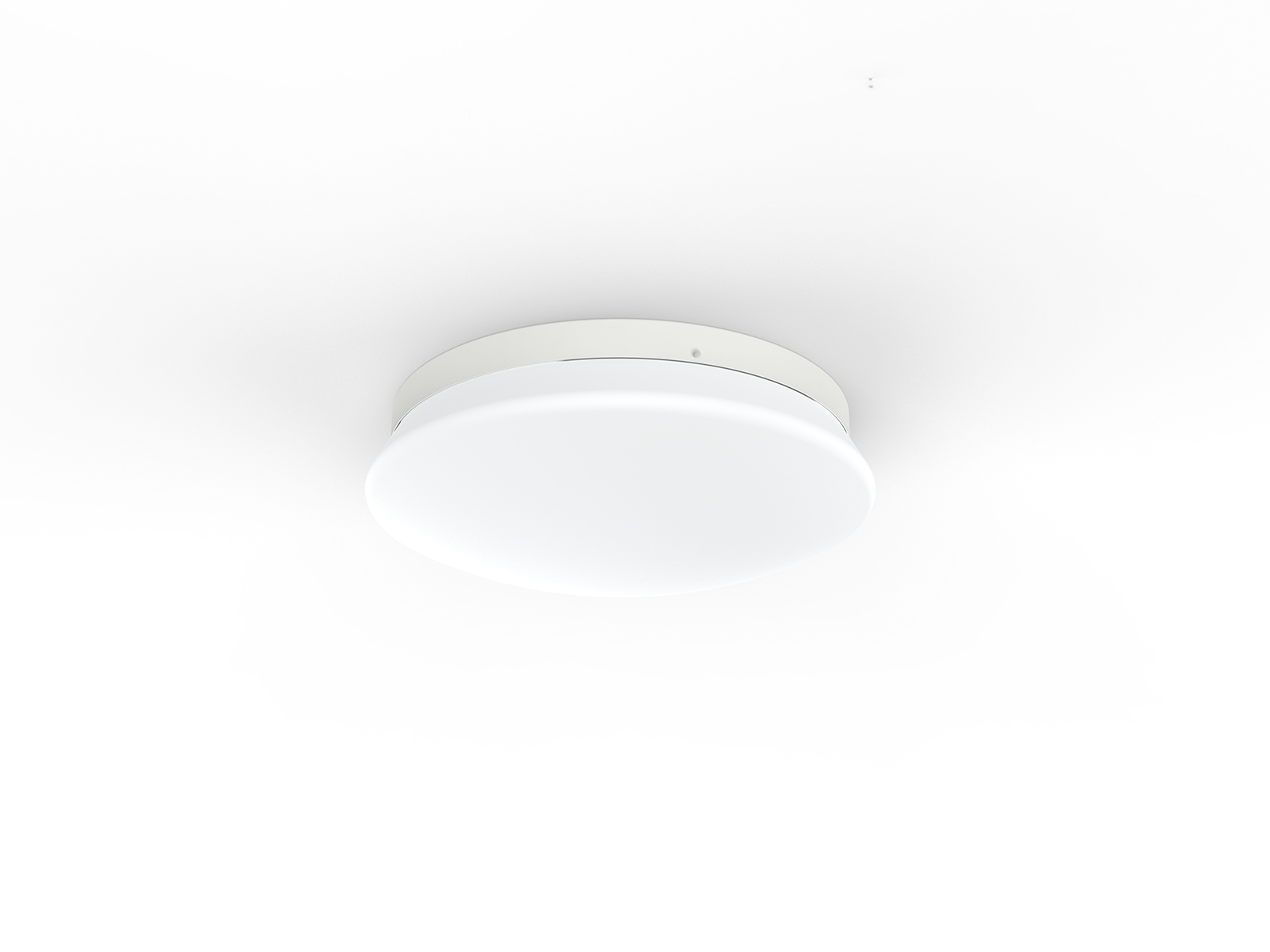

15Watts DOB Design Ceiling Light

FEATURES

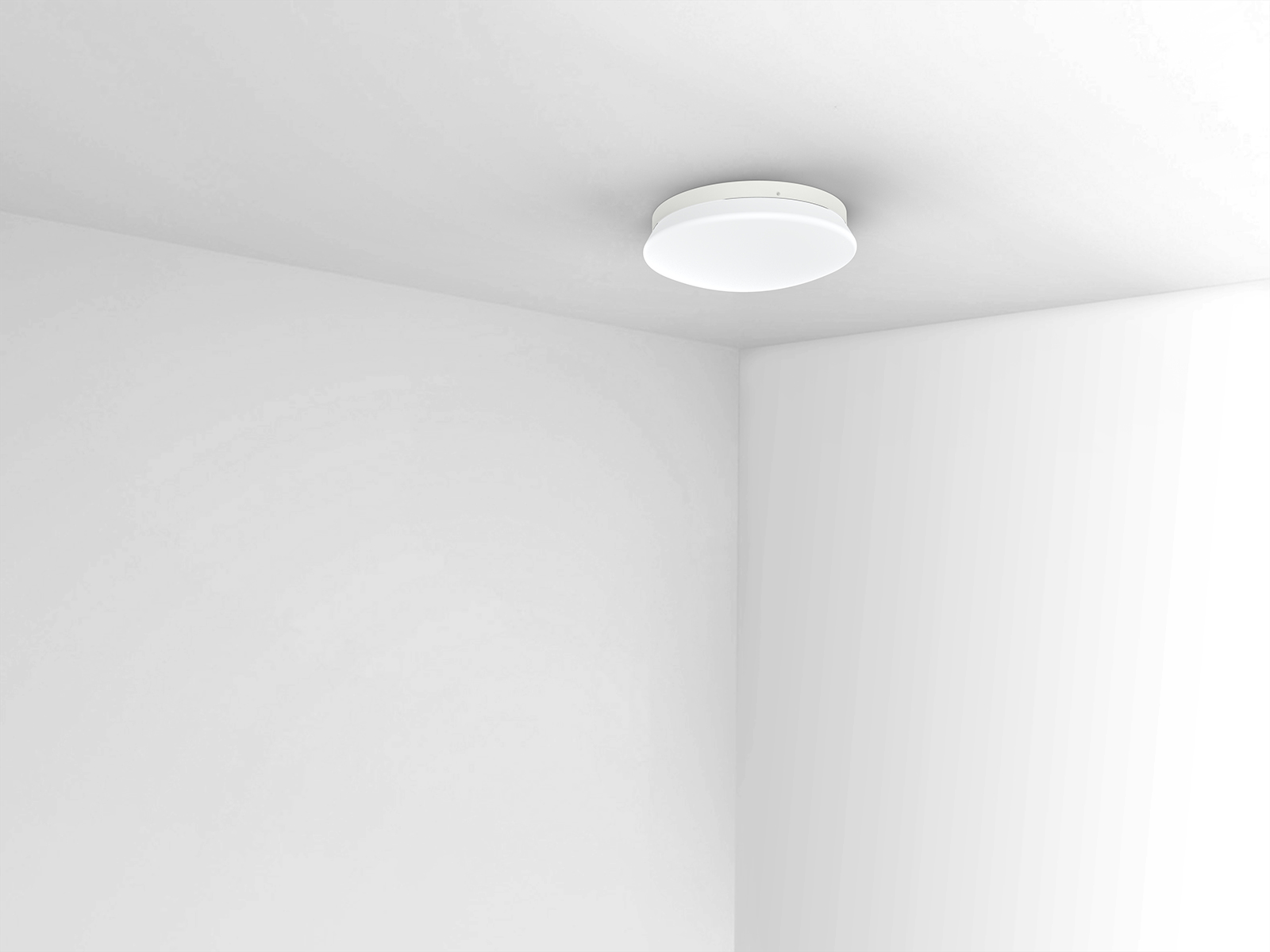

  • Widely used in indoor lighting places, such as house, office and mall etc;
  • It adopts traditional ceiling light shape structure, suitable for the public aesthetic;
  • Both flat and mushroom shape cover are optional;
  • With easy installation;
  • Special structure lens with 135°beam angle, makes uniform light distribution.
  • CCT: 3000K;3500K;4000K;5000K optional;
  • Adopts high efficiency LED chip;
  • Triac Dimmable;
  • Competitive and cost-effective.
  • DOB Design

CHARACTERISTIC

power factoreasy installationDimmable135 degree beam angle

APPLICATION AREAS

classroom lightinginterior lighting ideaskitchenretail store lightinghotel lighting design

CERTIFICATIONS

energy star approvedRoHs certificationetc approved

POLAR DIAGRAM COMPARISON

135°beam angle ceiling Light polar curve

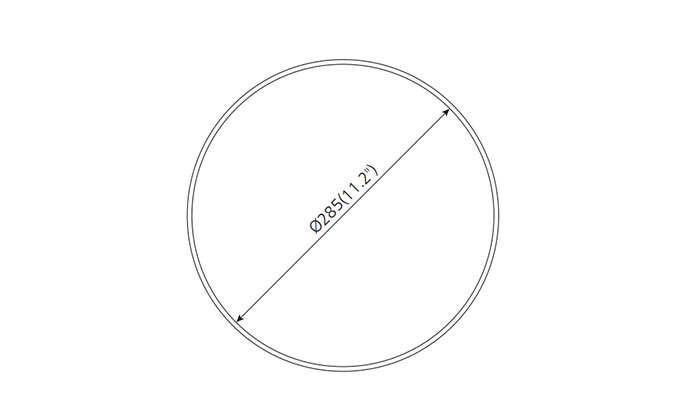

DIMENSION

11 inch Mushroom Ceiling Fixture

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
15W AC120V ≥0.9 950 120° 3000K 50000h ≥80 Yes Ø285*90mm (Ø11.2"*3.54"
15W AC120V ≥0.9 1000 120° 3500K 50000h ≥80 Yes Ø285*90mm (Ø11.2"*3.54"
15W AC120V ≥0.9 1050 120° 4000K 50000h ≥80 Yes Ø285*90mm (Ø11.2"*3.54")
15W AC120V ≥0.9 1100 120° 5000K 50000h ≥80 Yes Ø285*90mm (Ø11.2"*3.54")
