4 Inch Square Recessed Lighting Fixtures

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 50,000 hours
  • Triac dim
  • 110°wide beam angle
  • 90*90mm cutout
  • CCT: 3000K 3500K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factoreasy installation110 degree beam angleDimmable

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lightingbathroom

CERTIFICATIONS

POLAR DIAGRAM COMPARISON

10 watt led downlights polar curve

DIMENSION

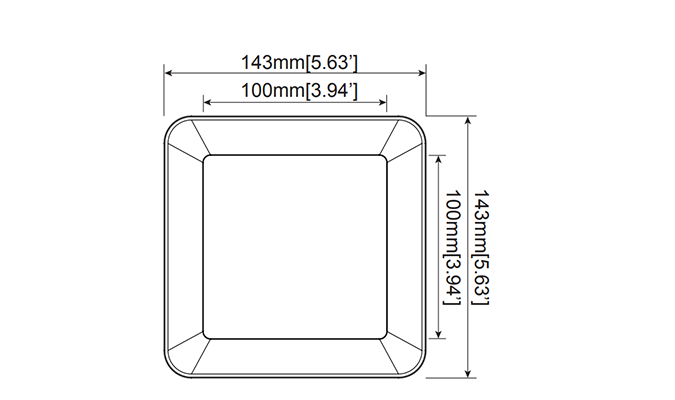

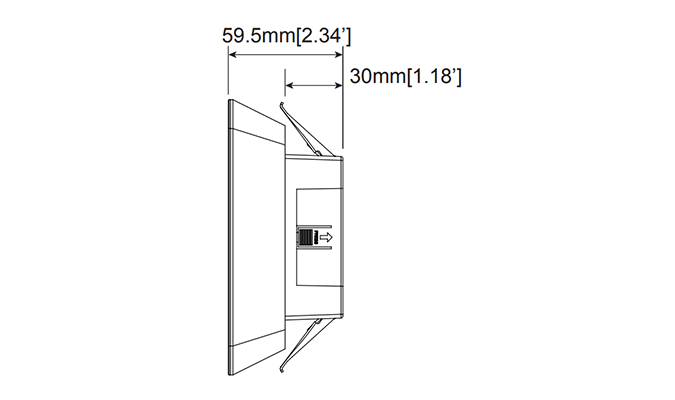

90mm cutout led downlight4 inch square led downlight

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC120V ≥0.9 970 110° 3000K 50000h ≥80 Yes 143*143*59.5mm cutout 90*90mm
10W AC120V ≥0.9 1020 110° 3500K 50000h ≥80 Yes 143*143*59.5mm cutout 90*90mm
10W AC120V ≥0.9 1050 110° 4000K 50000h ≥80 Yes 143*143*59.5mm cutout 90*90mm
10W AC120V ≥0.9 1050 110° 5000K 50000h ≥80 Yes 143*143*59.5mm cutout 90*90mm
