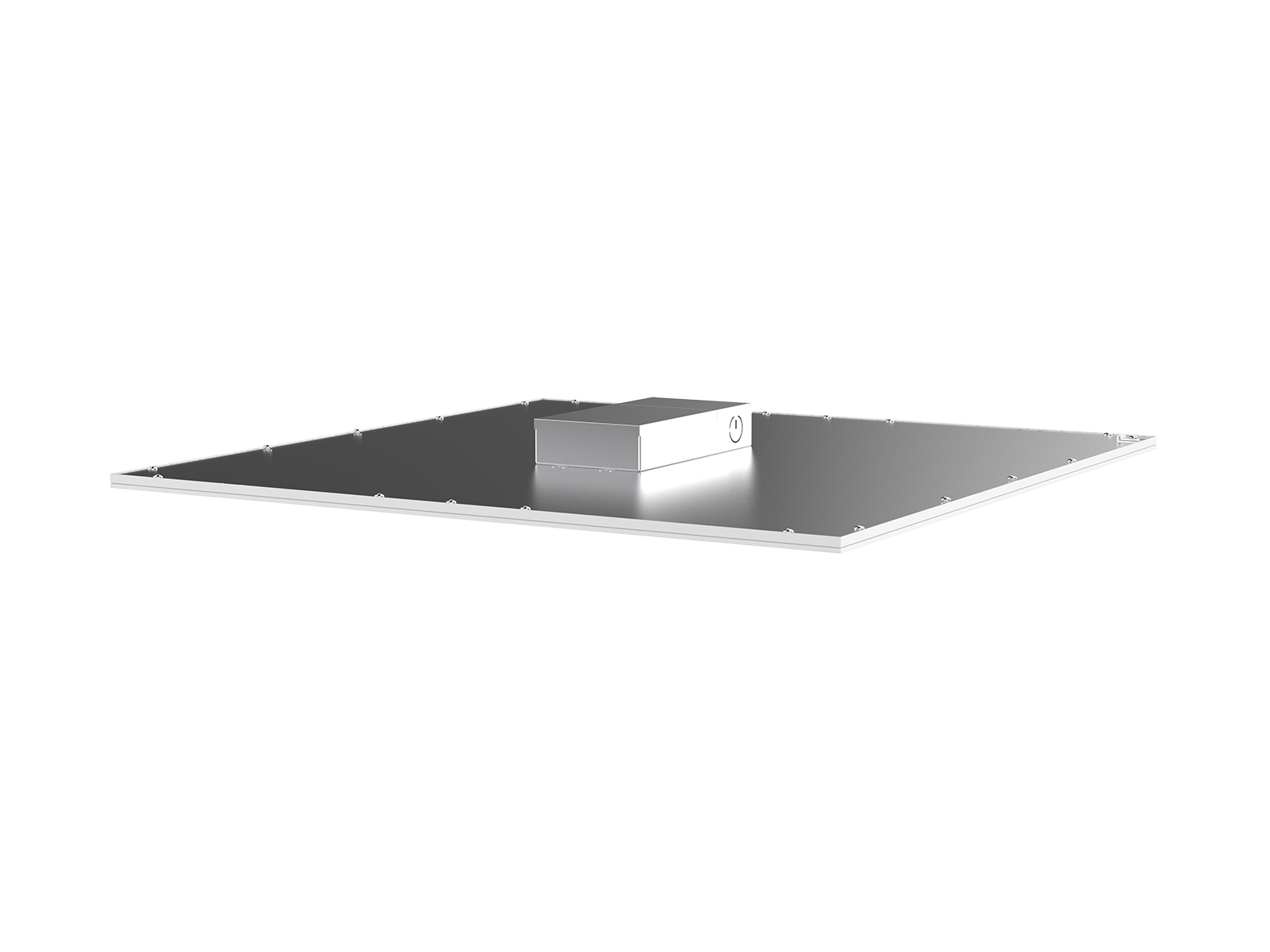

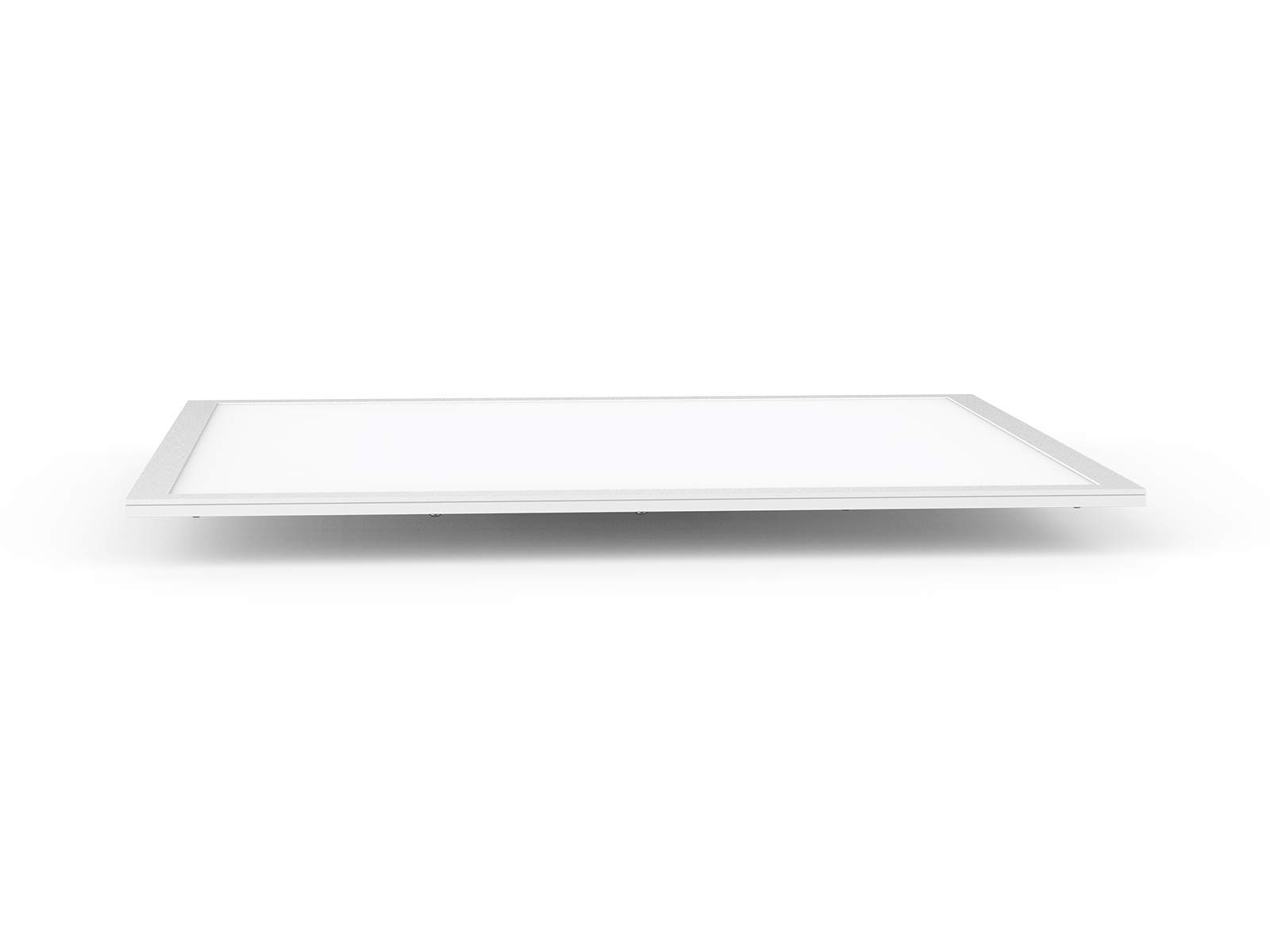

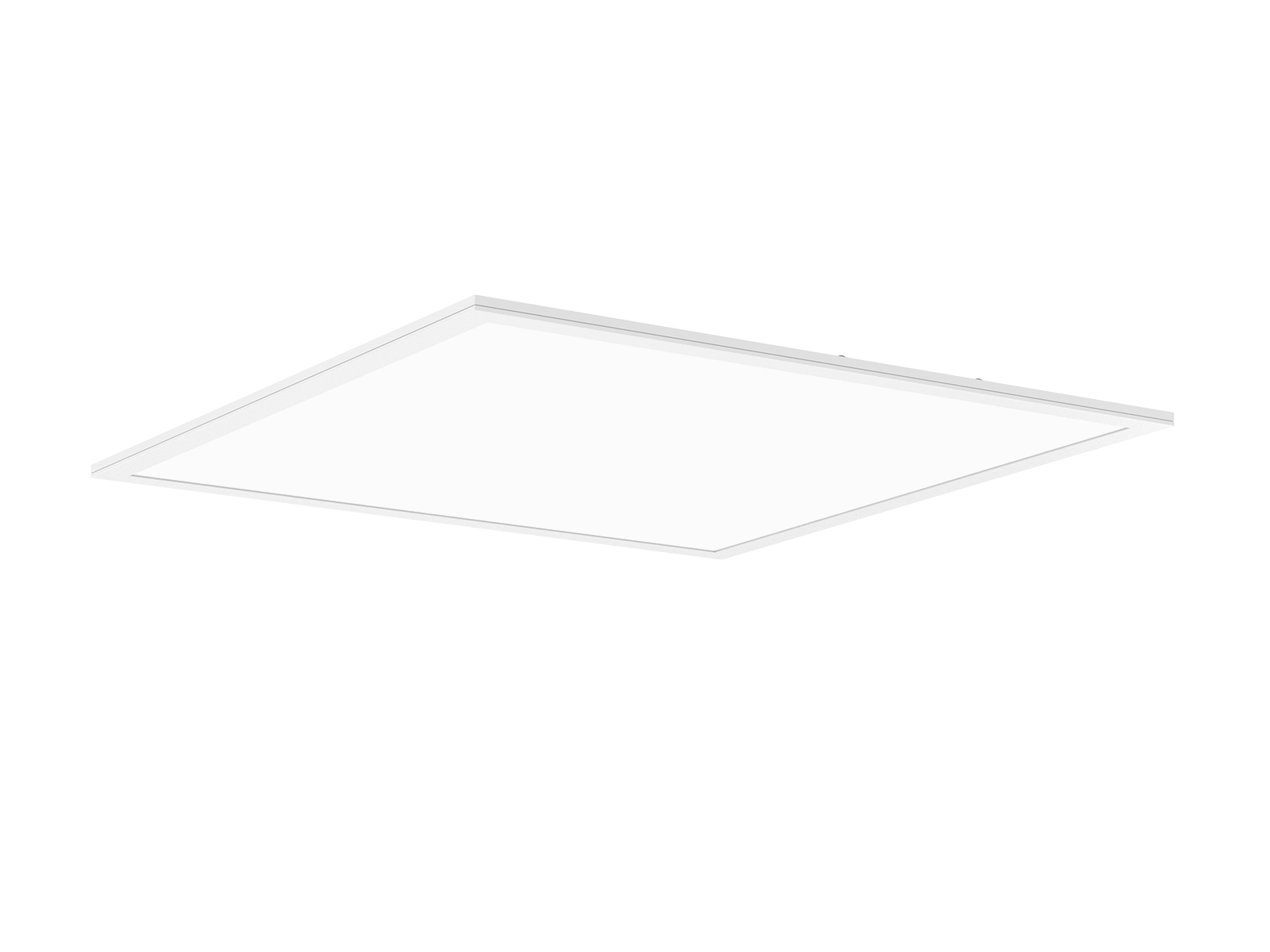

40W 2X2 LED Lighting For Suspended Ceilings

FEATURES

  • Up to 80% energy saving compared to standard CFL
  • Long lifetime of 50,000 hours
  • 0-10V dimmable
  • 120° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factoreasy installation120 degree beam angleip40 rating

APPLICATION AREAS

classroom lightinginterior lighting ideaskitchenretail store lightinghotel lighting design

CERTIFICATIONS

ul certificate

POLAR DIAGRAM COMPARISON

UL&cUL led panel 2x2 polar curve

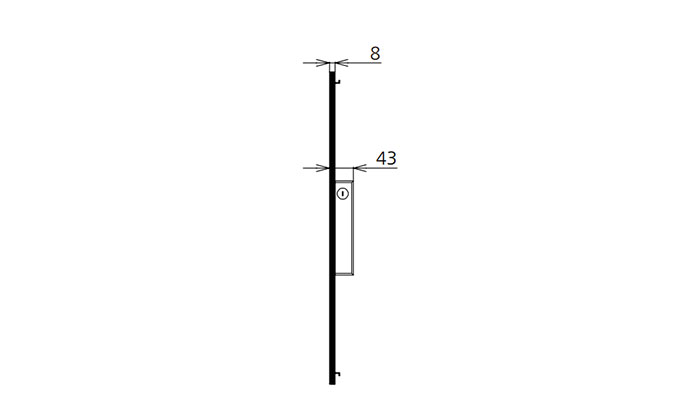

DIMENSION

2x2 Slim LED Panel Light 36w Dimensions2x2 Ultra Slim Led Panel Light

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
40W AC100-277V ≥0.9 3750 120° 2700K 50000h ≥80 No 603*603*8mm
40W AC100-277V ≥0.9 3800 120° 3000K 50000h ≥80 No 603*603*8mm
40W AC100-277V ≥0.9 4000 120° 4000K 50000h ≥80 No 603*603*8mm
40W AC100-277V ≥0.9 4050 120° 5000K 50000h ≥80 No 603*603*8mm
40W AC100-277V ≥0.9 3750 120° 2700K 50000h ≥80 Yes 603*603*8mm
40W AC100-277V ≥0.9 3800 120° 3000K 50000h ≥80 Yes 603*603*8mm
40W AC100-277V ≥0.9 4000 120° 4000K 50000h ≥80 Yes 603*603*8mm
40W AC100-277V ≥0.9 4050 120° 5000K 50000h ≥80 Yes 603*603*8mm
