6 Inch Square LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 50,000 hours
  • Triac dim
  • 110°wide beam angle
  • 142*142mm cutout
  • CCT: 3000K 3500K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factoreasy installation110 degree beam angleDimmable

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lightingbathroom

CERTIFICATIONS

POLAR DIAGRAM COMPARISON

15w led downlights photometric data

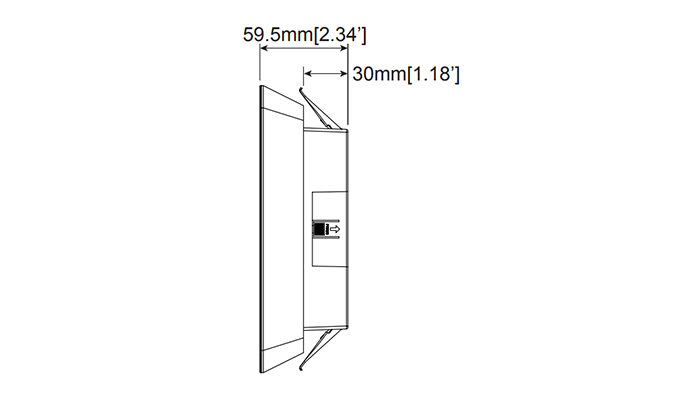

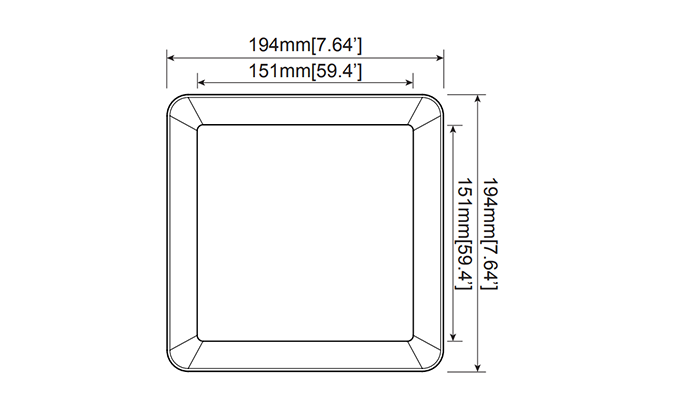

DIMENSION

sizes of 6 square led downlights142mm cut out led downlights

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
15W AC120V ≥0.9 1455 110° 3000K 50000h ≥80 Yes 194*194*59.5mm cutout 142*142mm
15W AC120V ≥0.9 1575 110° 3500K 50000h ≥80 Yes 194*194*59.5mm cutout 142*142mm
15W AC120V ≥0.9 1620 110° 4000K 50000h ≥80 Yes 194*194*59.5mm cutout 142*142mm
15W AC120V ≥0.9 1620 110° 5000K 50000h ≥80 Yes 194*194*59.5mm cutout 142*142mm
