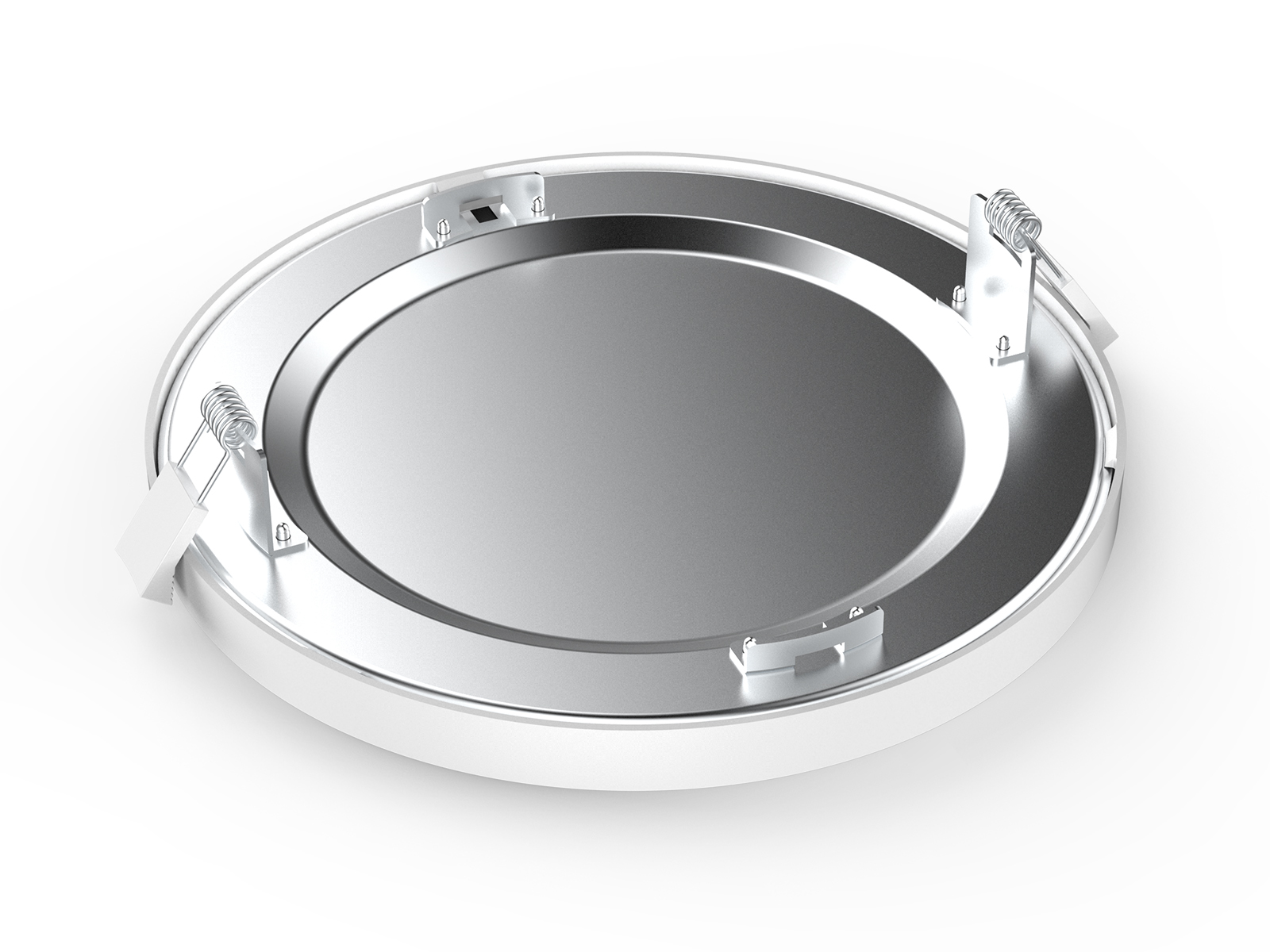

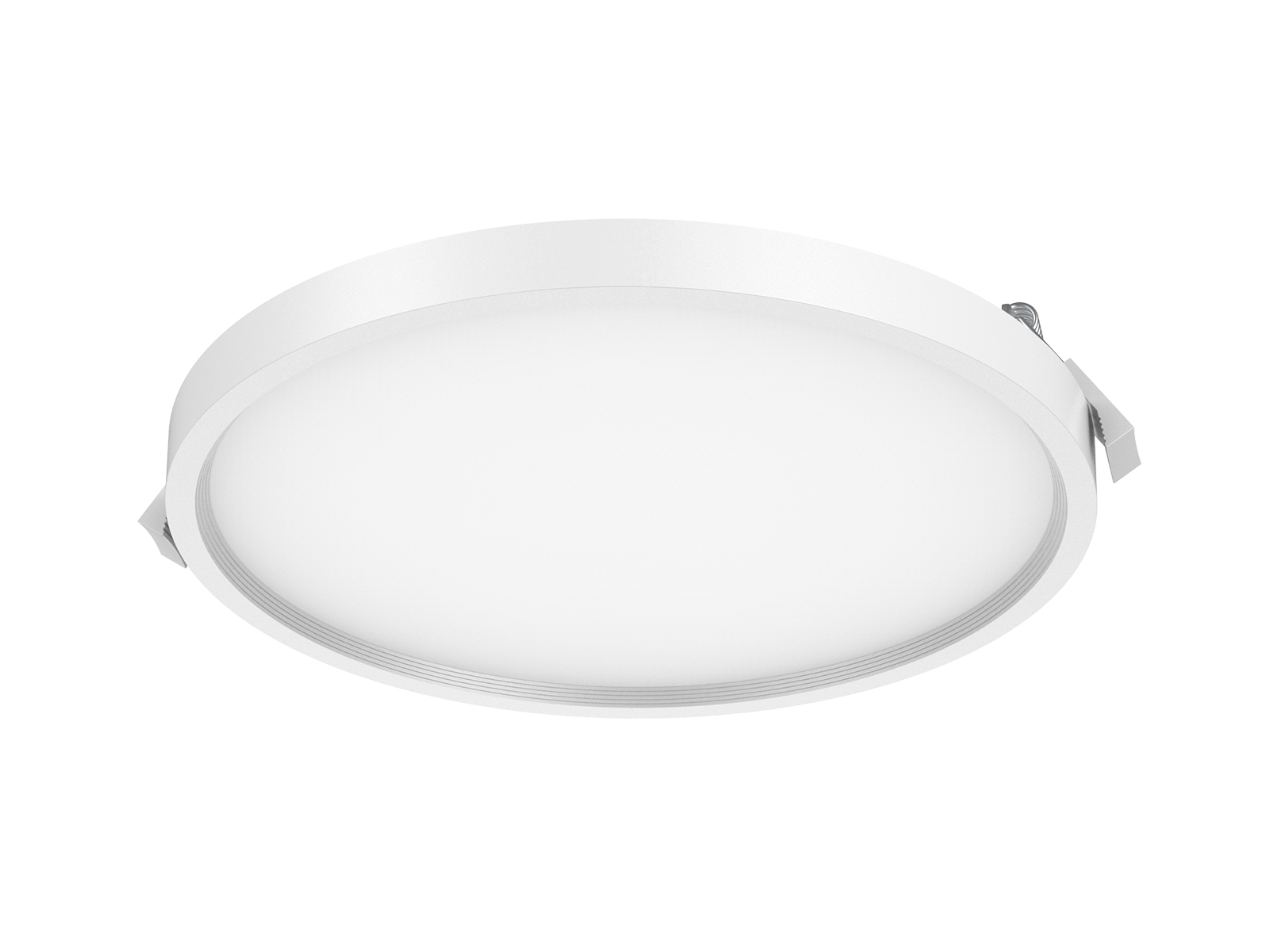

8 Inch 18W Ultra Slim LED Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 36,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • CCT: 2700K 3000K 3500K 4000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factoreasy installationled beam angle 90 degreeDimmable

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lightingbathroom

CERTIFICATIONS

POLAR DIAGRAM COMPARISON

18w junction box led downlight

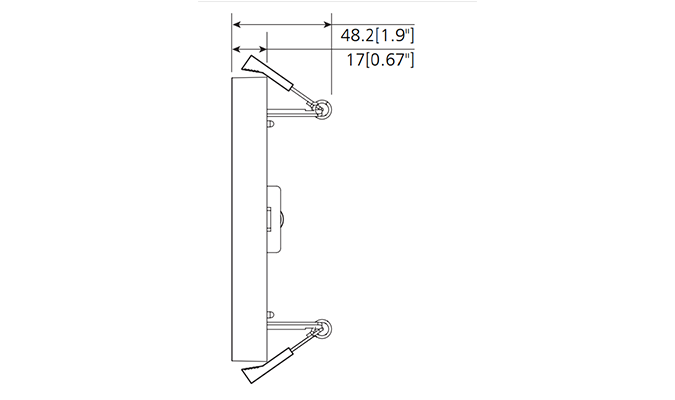

DIMENSION

8 led recessed downlight Junction box8 Ultra Thin LED Recessed Downlight

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
18W AC120V ≥0.9 1566 90° 2700K 36000h ≥80 Yes Ø223.6*48.2mm
18W AC120V ≥0.9 1566 90° 3000K 36000h ≥80 Yes Ø223.6*48.2mm
18W AC120V ≥0.9 1620 90° 3500K 36000h ≥80 Yes Ø223.6*48.2mm
18W AC120V ≥0.9 1620 90° 4000K 36000h ≥80 Yes Ø223.6*48.2mm
