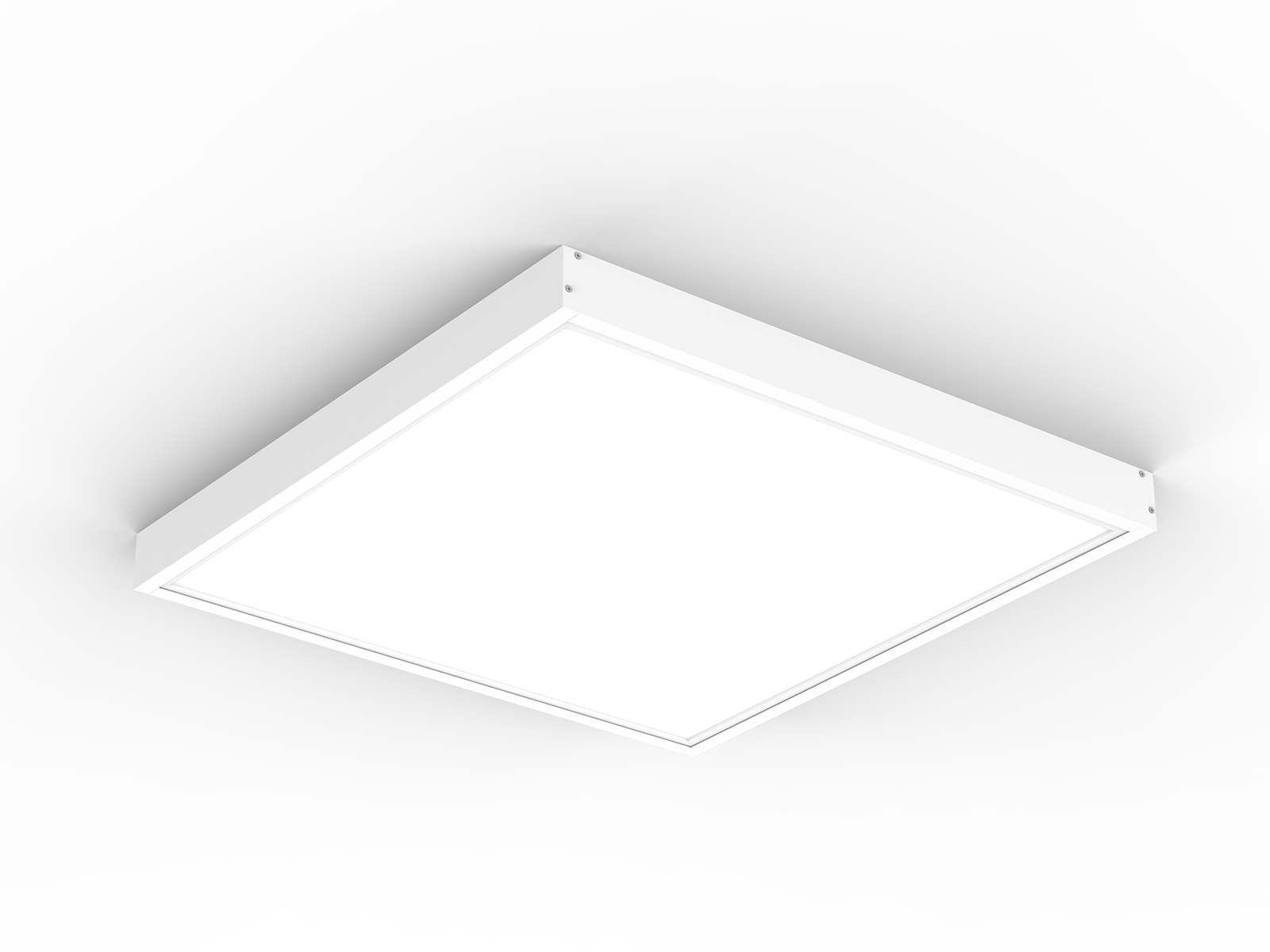

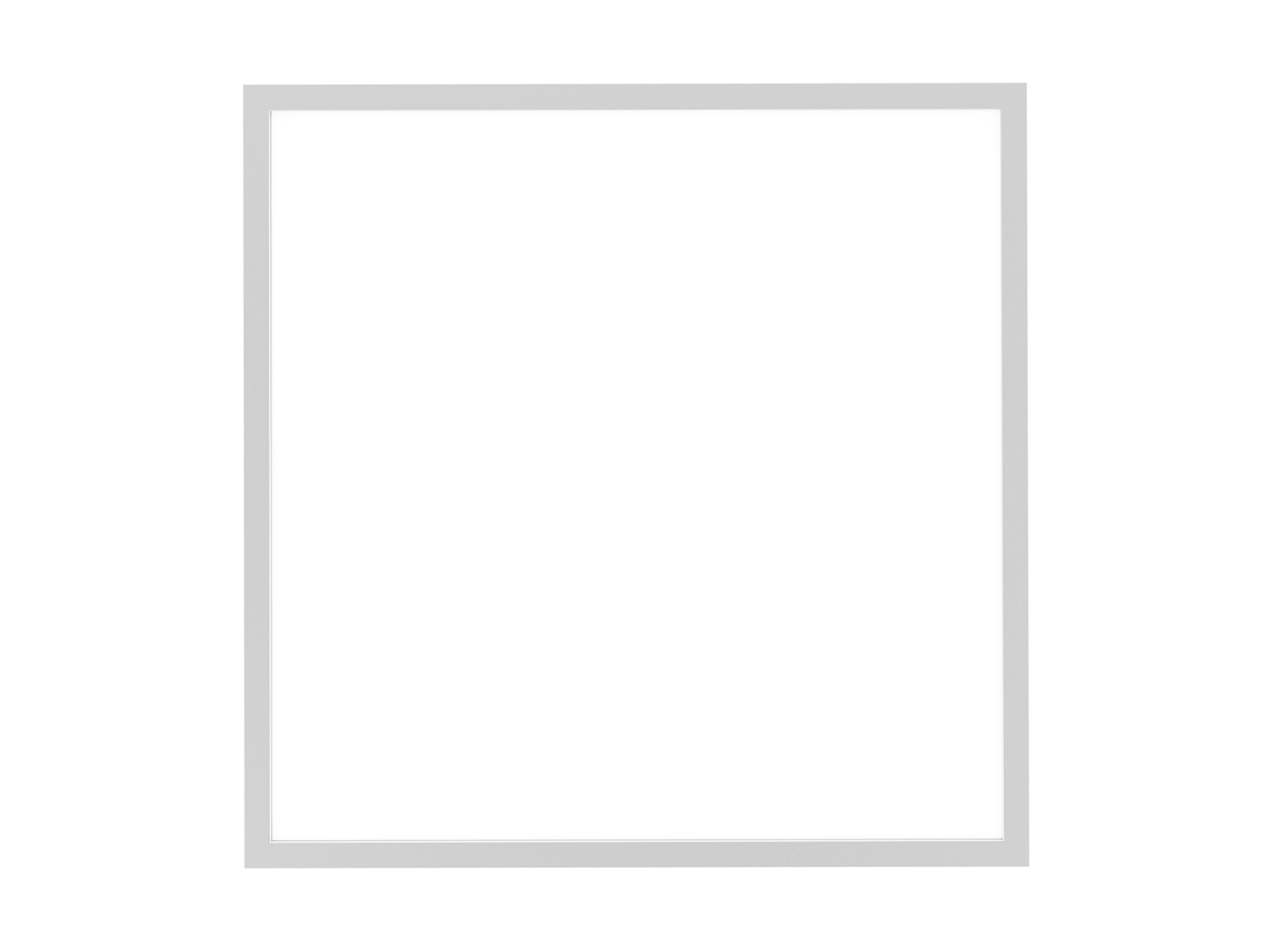

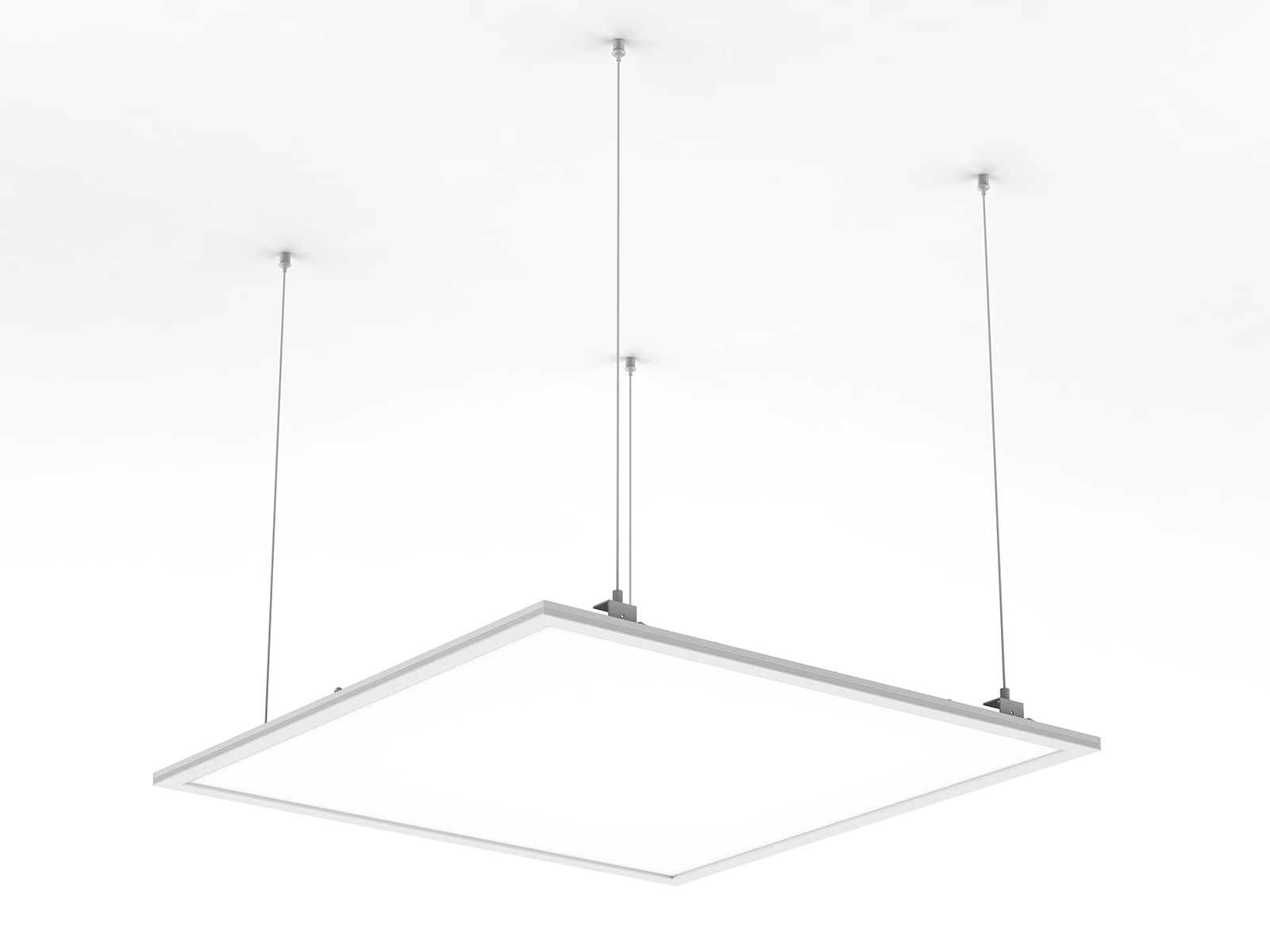

300x300mm 18W Waterproof LED Panel

FEATURES

  • Up to 80% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 120° wide beam angle
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor120 degree beam angleip54 waterproofeasy installation

APPLICATION AREAS

office lightingclassroom lightinginterior lighting ideasbedroomsupermarket led lightingbathroom

CERTIFICATIONS

ce certificationsaa certificationRoHs certification

POLAR DIAGRAM COMPARISON

18w square led panel light

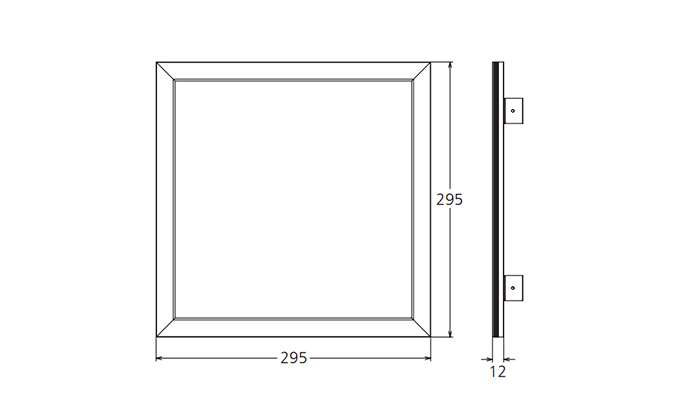

DIMENSION

IP54 waterproof panel light Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
18W AC230V ≥0.9 1220 120° 3000K 40000h ≥80 No  295*295*12mm
18W AC230V ≥0.9 1270 120° 4000K 40000h ≥80 No 295*295*12mm
18W AC230V ≥0.9 1350 120° 5000K 40000h ≥80 No 295*295*12mm
18W AC230V ≥0.9 1300 120° 5700K 40000h ≥80 No 295*295*12mm
