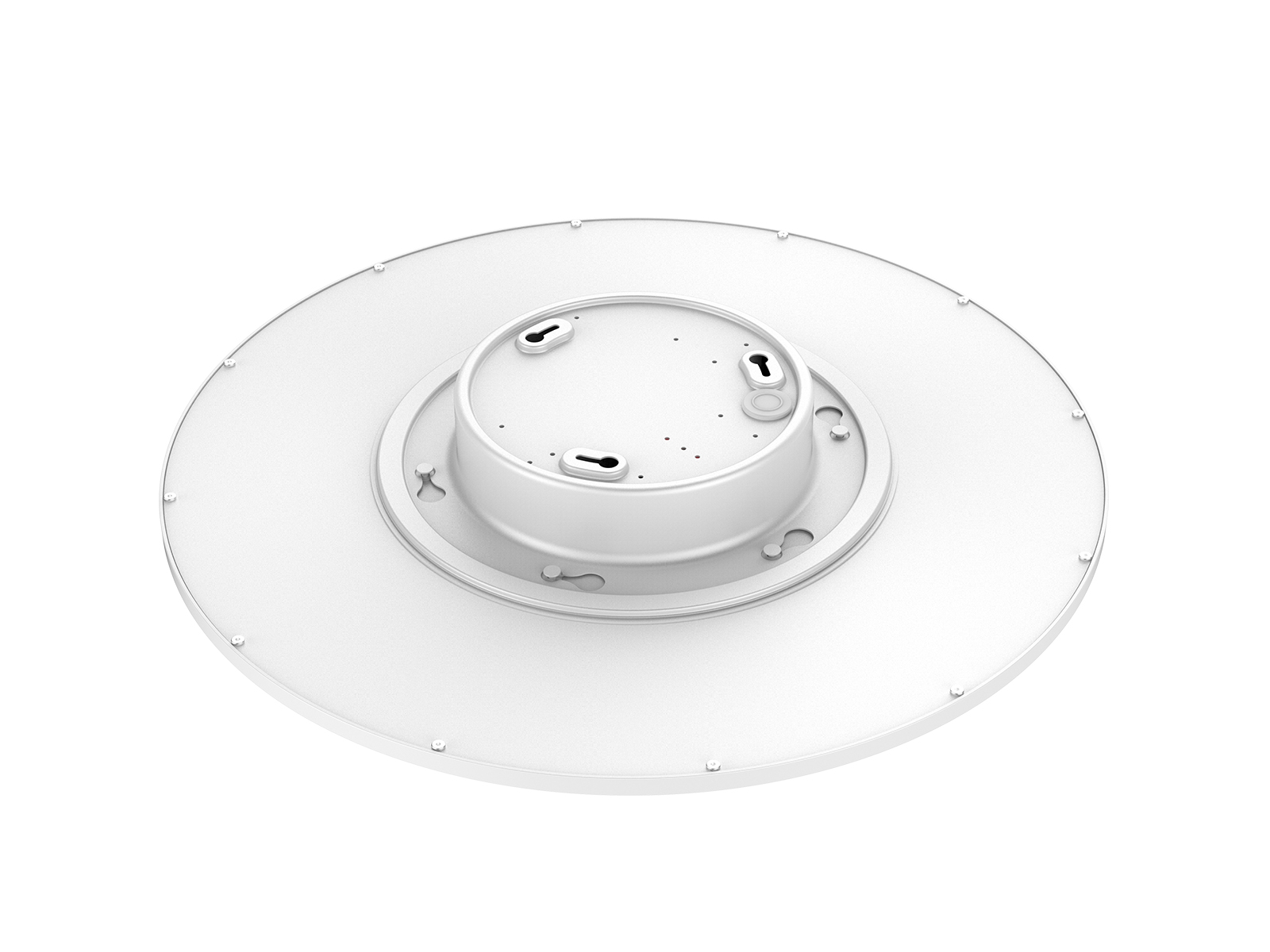

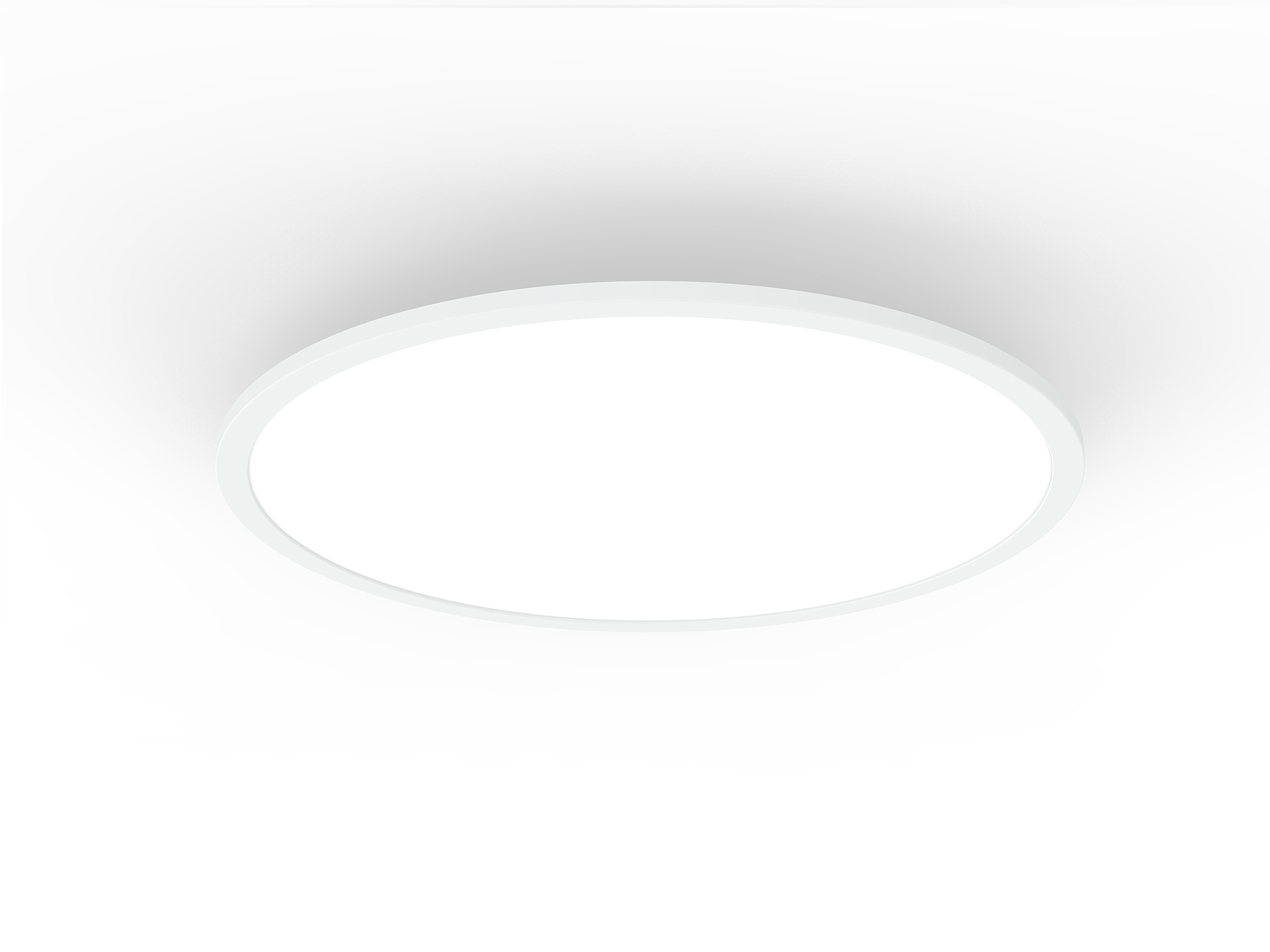

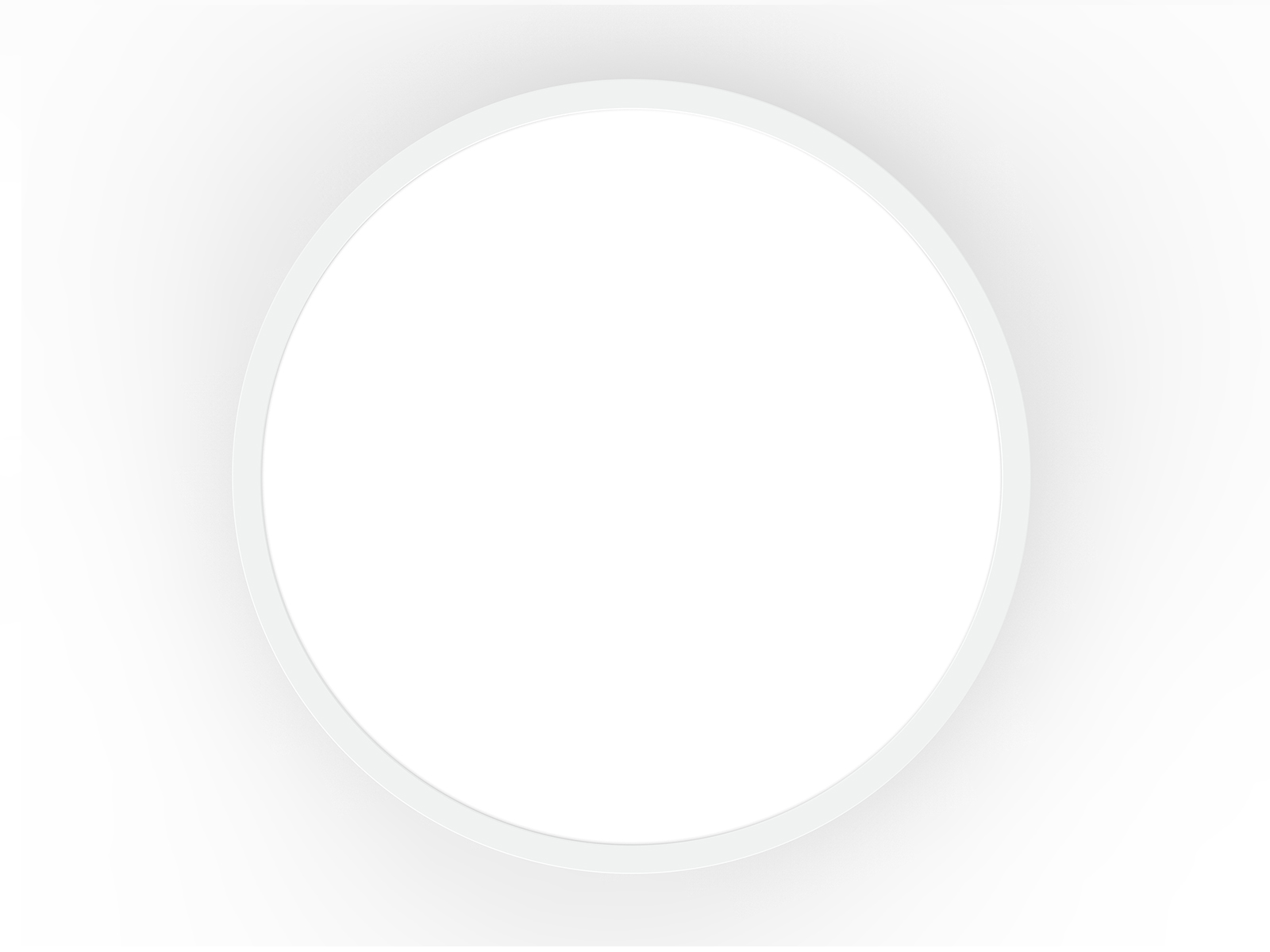

30W LED Hanging Panel Light

FEATURES

  • Up to 80% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 120° wide beam angle
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor120 degree beam angleip40 ratingeasy installation

APPLICATION AREAS

office lightingclassroom lightinginterior lighting ideasbedroomsupermarket led lighting

CERTIFICATIONS

ce certificationsaa certificationRoHs certification

POLAR DIAGRAM COMPARISON

30w round panel light polar curve

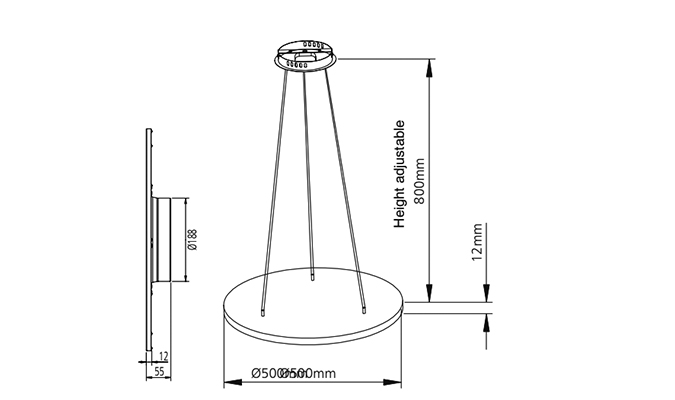

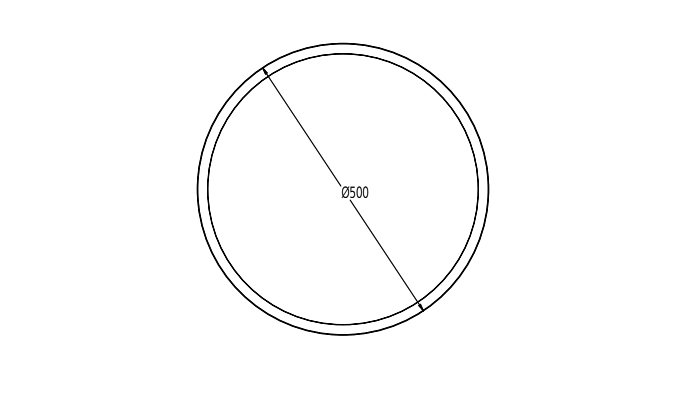

DIMENSION

led panel light with 500mm diameterled 500mm panel light sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable
30W AC230V ≥0.9 2140 120° 3000K 40000h ≥80 No
30W AC230V ≥0.9 2200 120° 4000K 40000h ≥80 No
30W AC230V ≥0.9 2340 120° 5000K 40000h ≥80 No
30W AC230V ≥0.9 2460 120° 5700K 40000h ≥80 No
30W AC230V ≥0.9 ≥0.9 120° 3000K 40000h ≥80 Yes
30W AC230V ≥0.9 1950 120° 4000K 40000h ≥80 Yes
30W AC230V ≥0.9 2000 120° 5000K 40000h ≥80 Yes
30W AC230V ≥0.9 2020 120° 5700K 40000h ≥80 Yes
