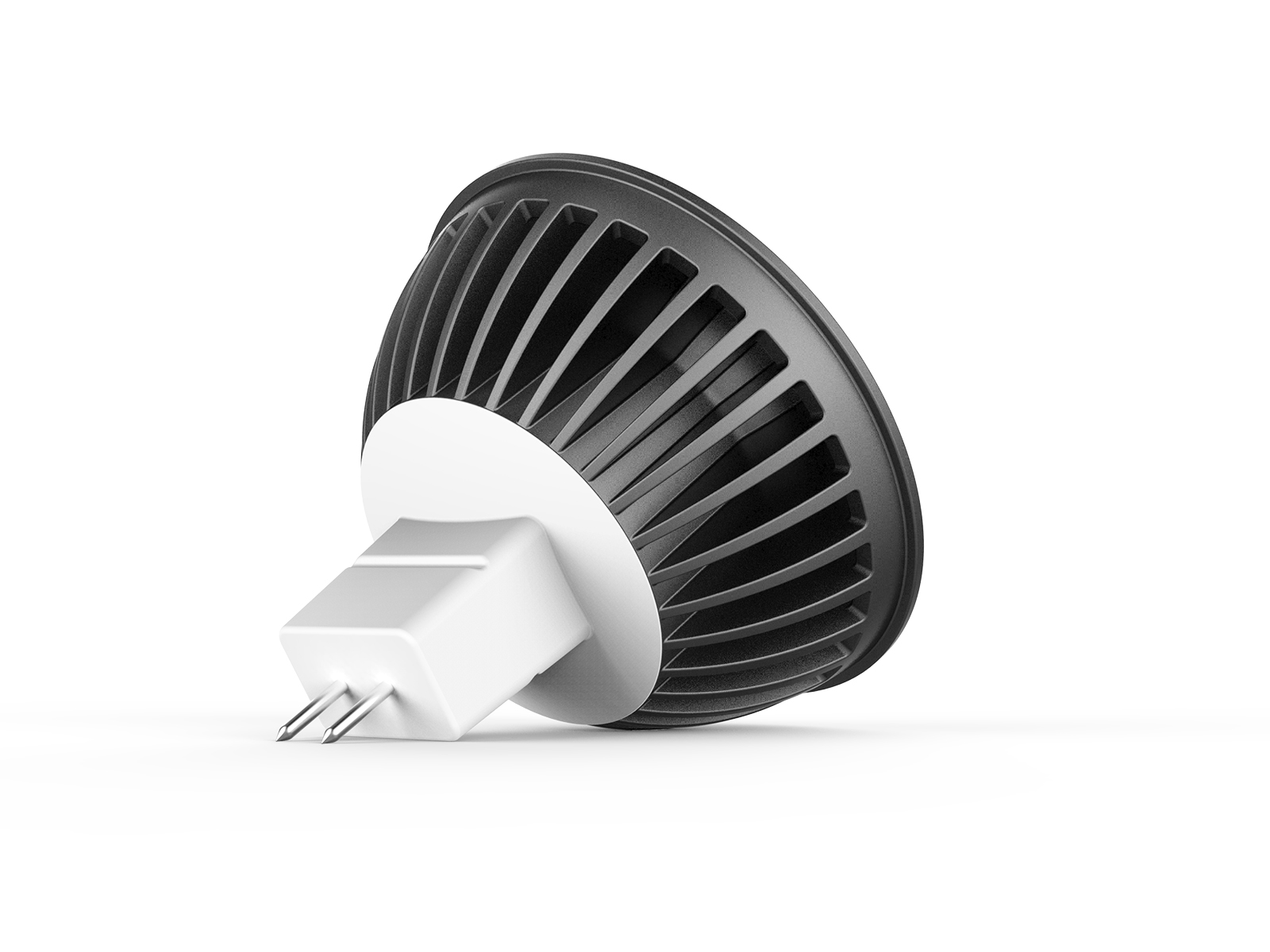

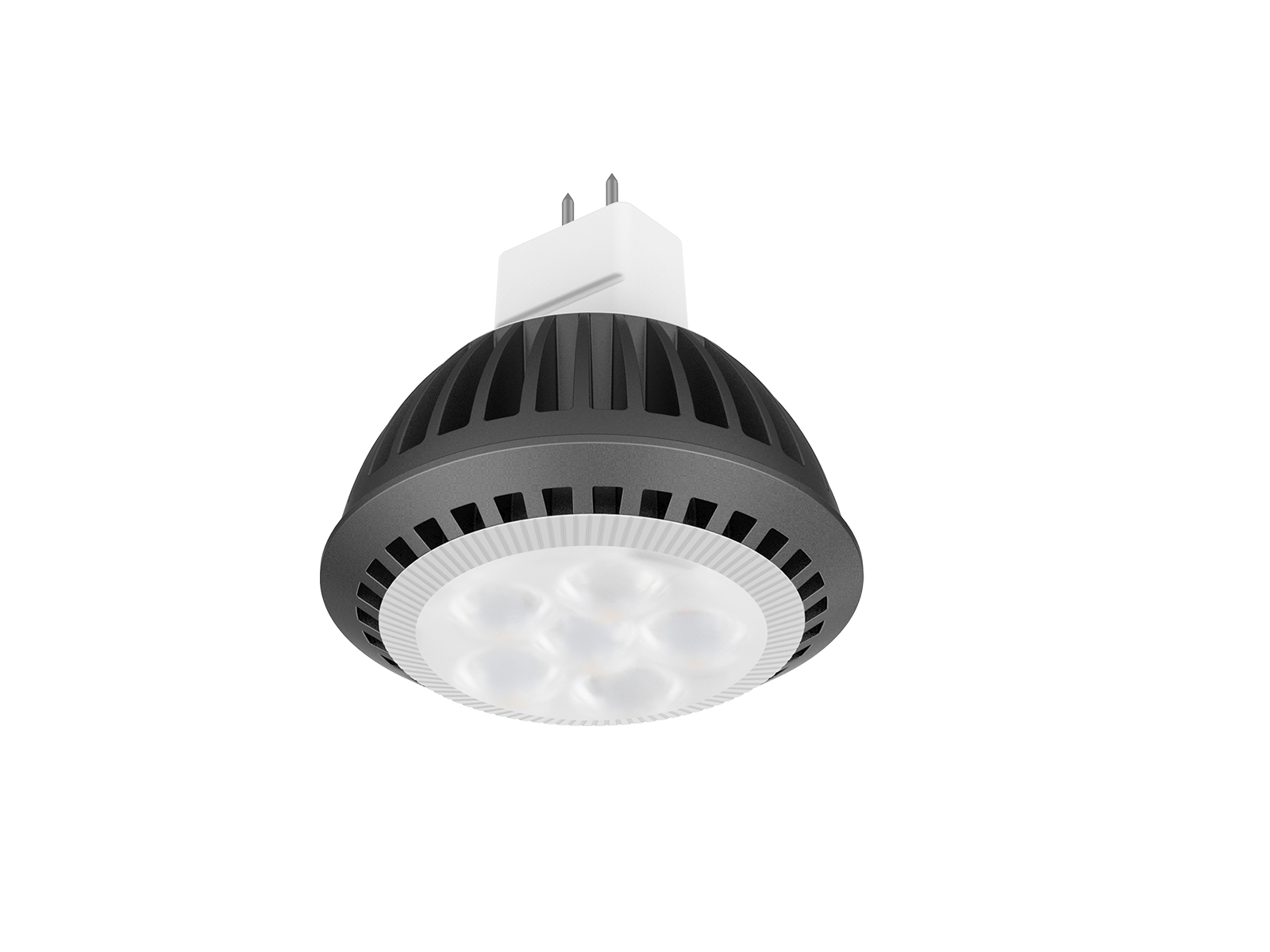

7W 3030 SMD LED MR16 Spotlight

FEATURES

  • Up to 70% energy saving compared to halogen lamp
  • Long lifetime of 40,000 hours
  • 30° beam angle
  • Standard 50mm diameter
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

Power Factor 1ip20 rating easy installation30 degree beam angle

APPLICATION AREAS

office lightinginterior lighting ideasworkshop lightingled warehouse lightingretail store lighting

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

small 12v led spotlight bulb polar curve

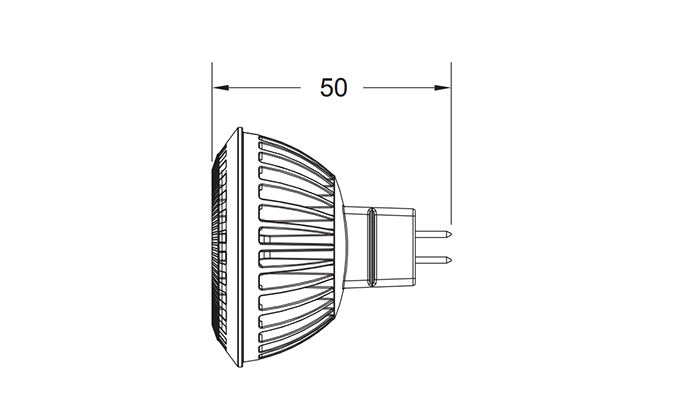

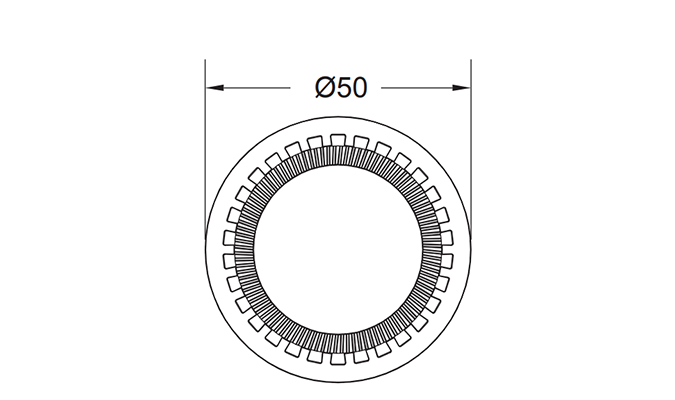

DIMENSION

7W MR16 LED Spotlight Dimensionsmr16 spotlight fixtures Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
7W AC/DC12V 1 430 36° 60° 2700K 40000h ≥80 No Ø50*50mm
7W AC/DC12V 1 450 36° 60° 3000K 40000h ≥80 No Ø50*50mm
7W AC/DC12V 1 470 36° 60° 4000K 40000h ≥80 No Ø50*50mm
7W AC/DC12V 1 480 36° 60° 5000K 40000h ≥80 No Ø50*50mm
