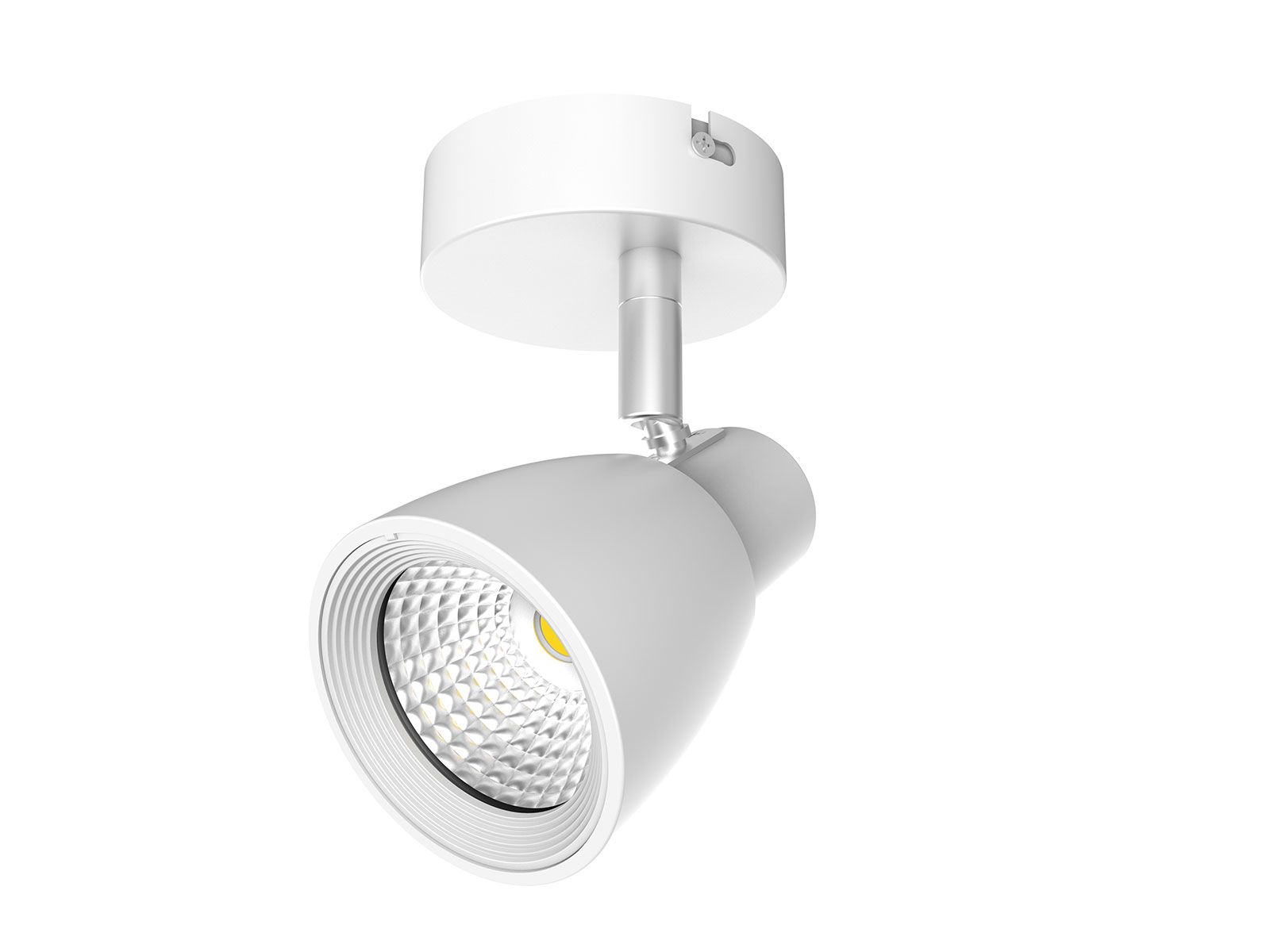

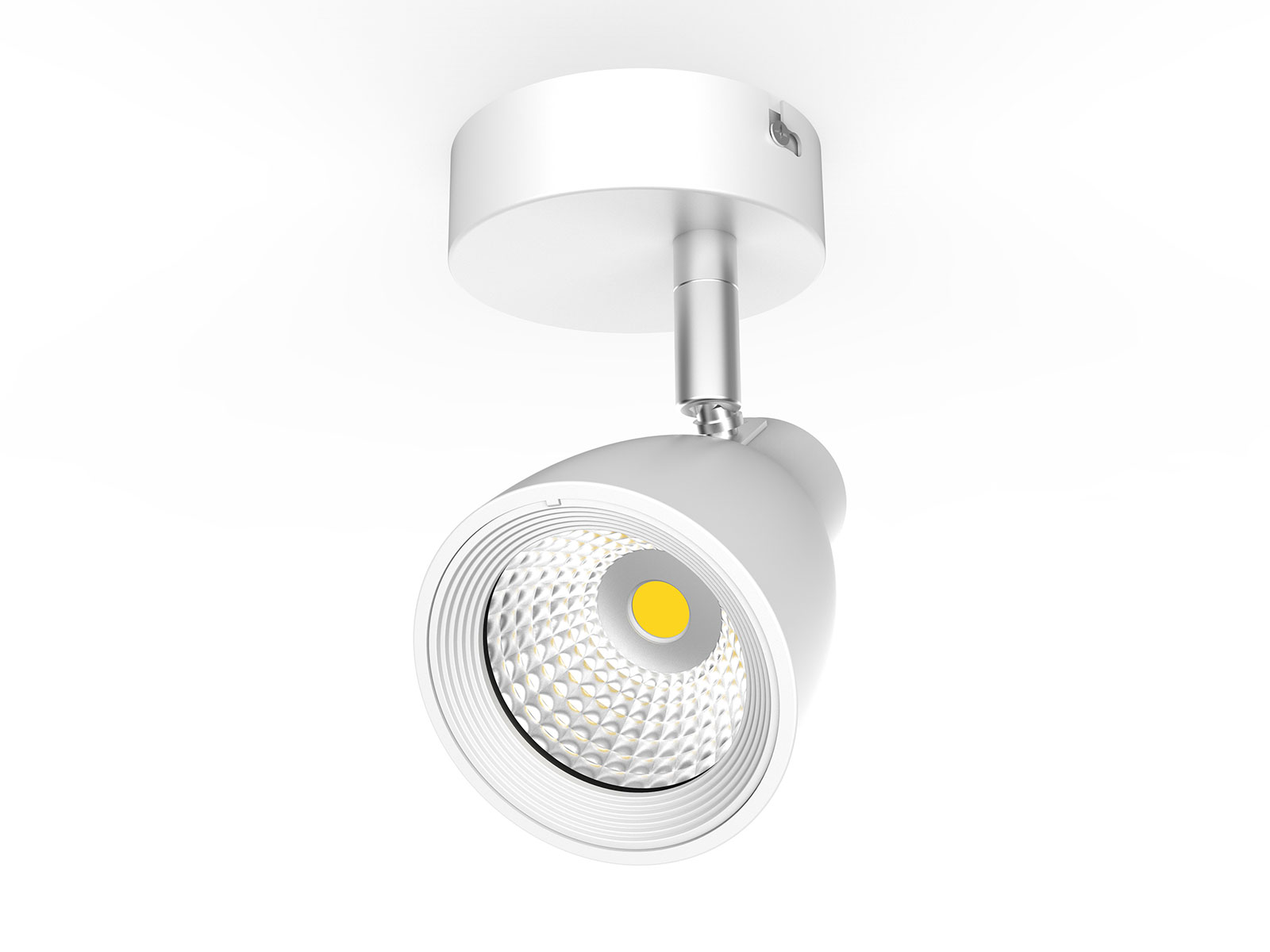

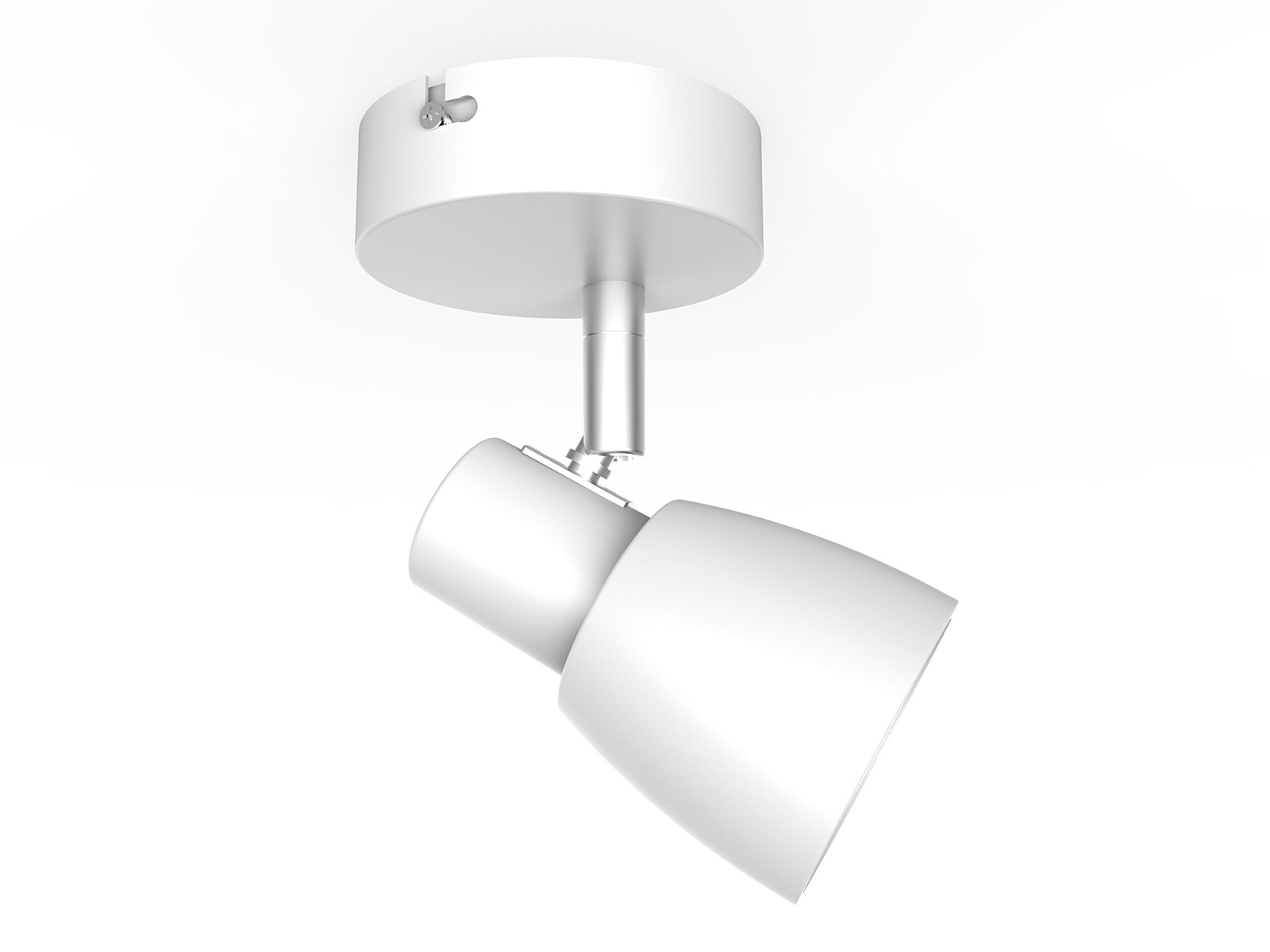

10W Ceiling Spotlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 24°/36°/45°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor350 degree in horizontal35 in vertical directionip20 ratingvoltage AC100 240Veasy installation

APPLICATION AREAS

retail store lightingsupermarket led lightingrestaurant lightingliving roominterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

10w spotlight photometric data

DIMENSION

standard lamp sizes of spotlights

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC100-240V ≥0.9 750 36°/60° 2700K 40000h ≥80 No Ø80*161mm
10W AC100-240V ≥0.9  760 36°/60° 3000K 40000h ≥80 No Ø80*161mm
10W AC100-240V ≥0.9 800 36°/60° 4000K 40000h ≥80 No Ø80*161mm
10W AC100-240V ≥0.9 780 36°/60° 5000K 40000h ≥80 No Ø80*161mm
10W AC230V ≥0.9 690 36°/60° 2700K 40000h ≥80 Yes Ø80*161mm
10W AC230V ≥0.9 700 36°/60° 3000K 40000h ≥80 Yes Ø80*161mm
10W AC230V ≥0.9 740 36°/60° 4000K 40000h ≥80 Yes Ø80*161mm
10W AC230V ≥0.9 720 36°/60° 5000K 40000h ≥80 Yes Ø80*161mm
