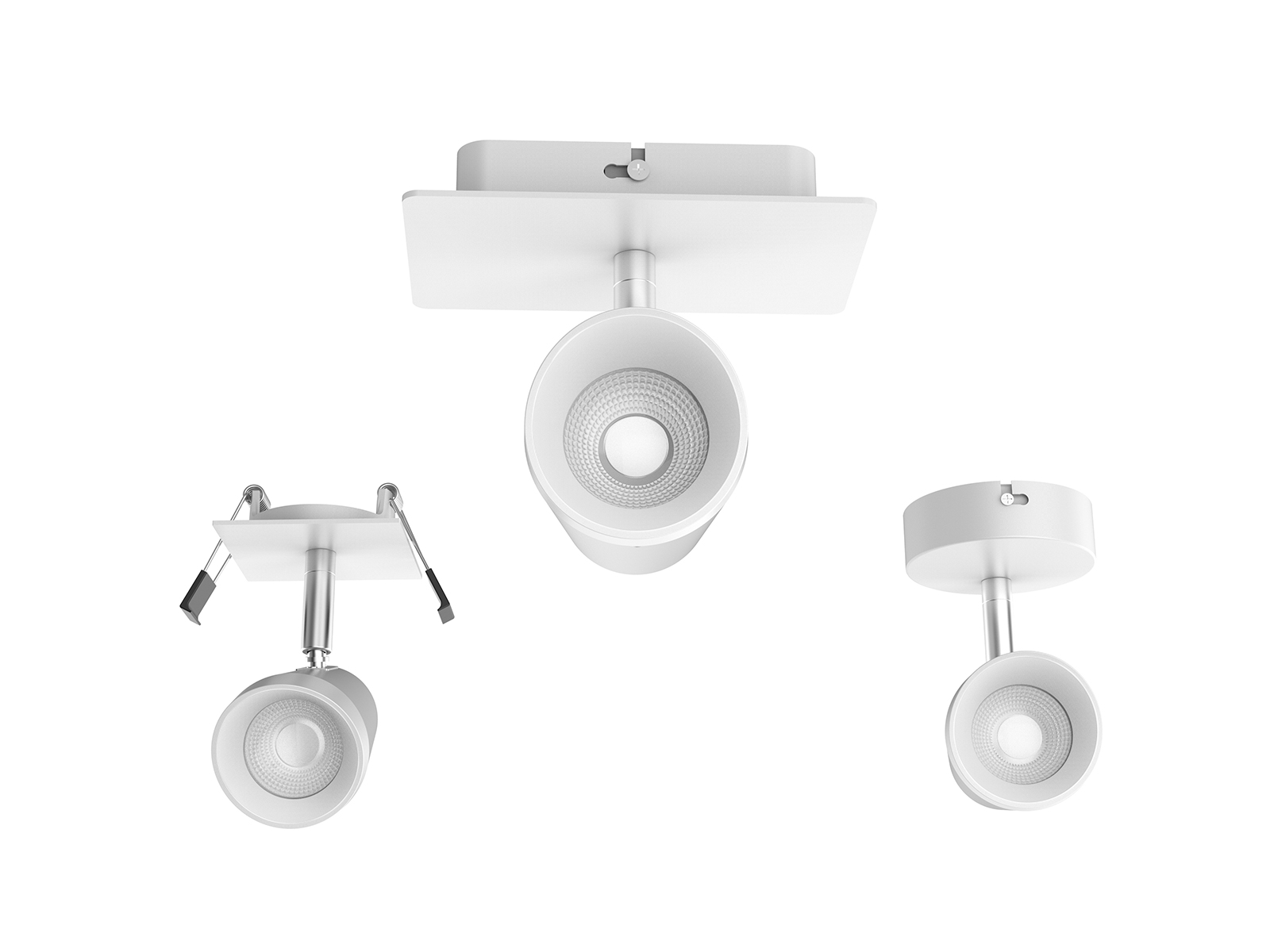

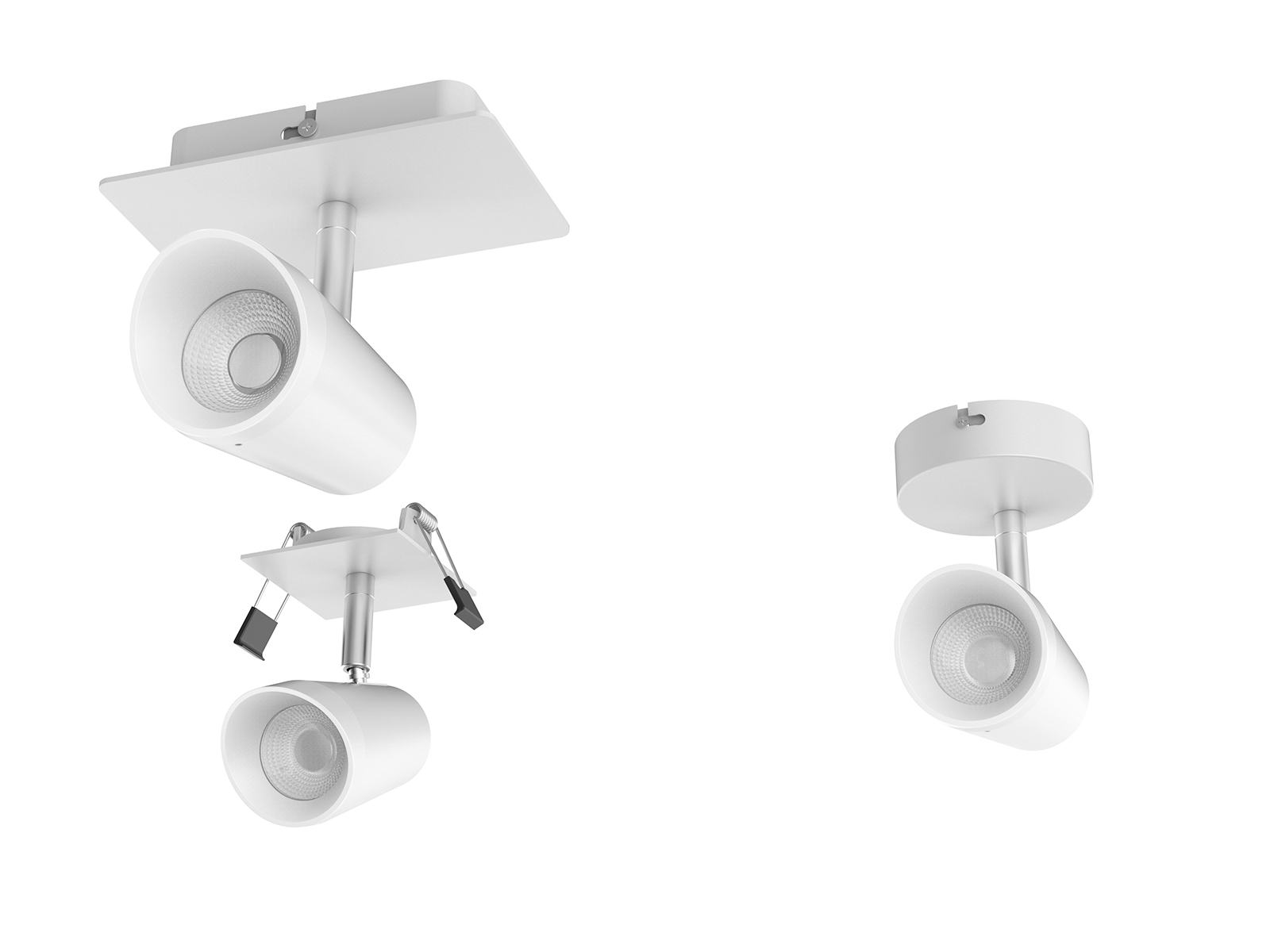

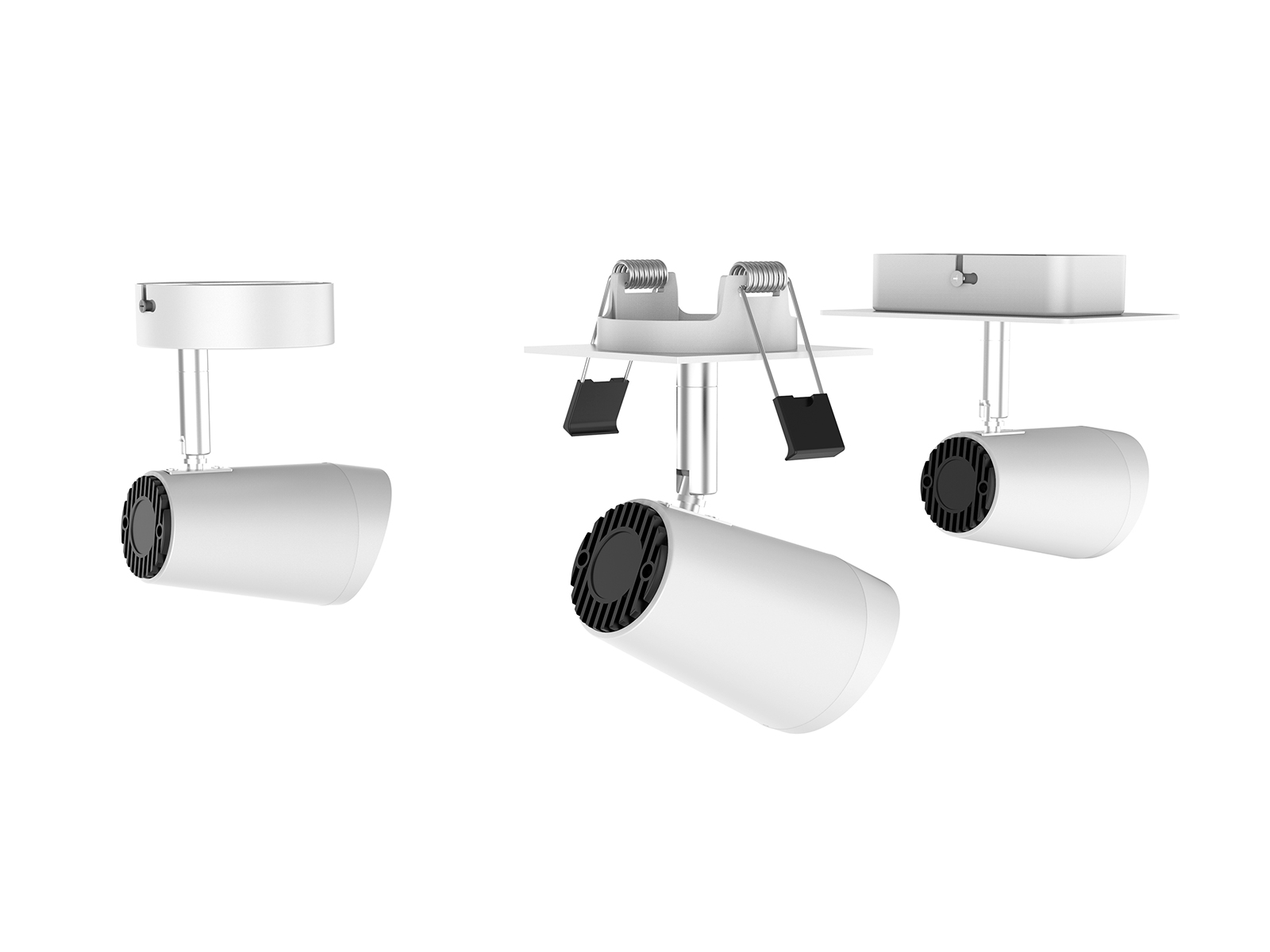

10W COB LED Track Light

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 36°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor36 degree beam angleled beam angle 60 degreeip20 rating340 degree adjustable lighting orientation90 degree adjustable lighting orientationDimmable

APPLICATION AREAS

retail store lightingsupermarket led lightingrestaurant lightingliving roominterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

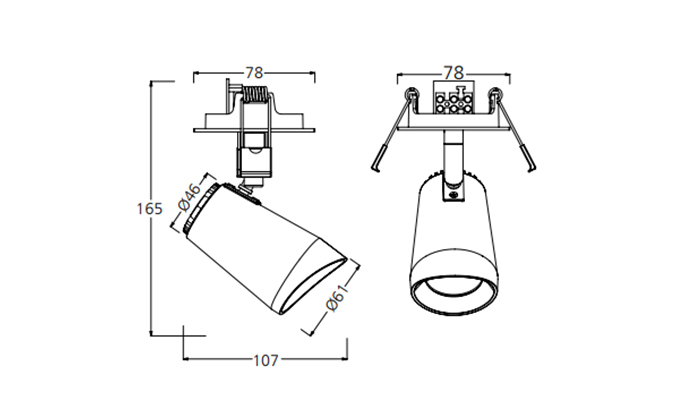

track light Dimensions Diagram

DIMENSION

Commercial led track light Dimensions10w track spotlight polar charttrack lamp size guide

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable
10W AC100-240V ≥0.9 920 36°/60° 2700K 40000h ≥80 No
10W AC100-240V ≥0.9  990 36°/60° 3000K 40000h ≥80 No
10W AC100-240V ≥0.9 1040 36°/60° 4000K 40000h ≥80 No
10W AC100-240V ≥0.9 1050 36°/60° 5000K 40000h ≥80 No
10W AC230V ≥0.9 950 36°/60° 2700K 40000h ≥80 Yes
10W AC230V ≥0.9 955 36°/60° 3000K 40000h ≥80 Yes
10W AC230V ≥0.9 1010 36°/60° 4000K 40000h ≥80 Yes
10W AC230V ≥0.9 1050 36°/60° 5000K 40000h ≥80 Yes
