10W CRI80 Indoor Spotlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 36°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor36 degree beam angleled beam angle 60 degree340 degree adjustable lighting orientation90 degree adjustable lighting orientationvoltage AC100 240Vip20 rating

APPLICATION AREAS

retail store lightingrestaurant lightingoffice lightingsupermarket led lightinginterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

polar curve in 10w illumination

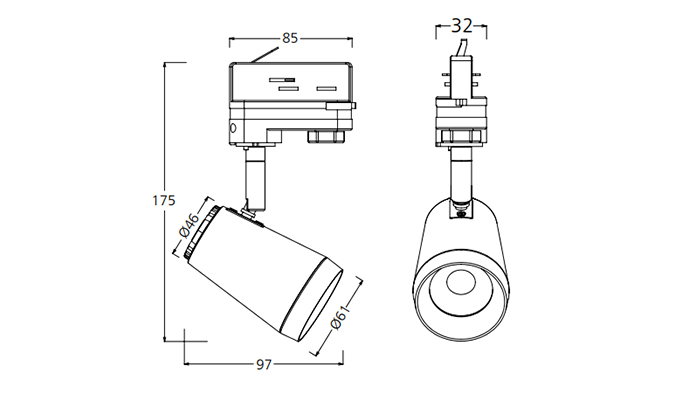

DIMENSION

10w Track Light sizes chart

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable
10W AC100-240V ≥0.9 920 36°/60° 2700K 40000h ≥80 No
10W AC100-240V ≥0.9  990 36°/60° 3000K 40000h ≥80 No
10W AC100-240V ≥0.9 1040 36°/60° 4000K 40000h ≥80 No
10W AC100-240V ≥0.9 1050 36°/60° 5000K 40000h ≥80 No
10W AC230V ≥0.9 950 36°/60° 2700K 40000h ≥80 Yes
10W AC230V ≥0.9 955 36°/60° 3000K 40000h ≥80 Yes
10W AC230V ≥0.9 1010 36°/60° 4000K 40000h ≥80 Yes
10W AC230V ≥0.9 1055 36°/60° 5000K 40000h ≥80 Yes
