10W Wall Mounted Track Lighting

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 24°/36°/45°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 24 degree36 degree beam angle45 degree beam angleled beam angle 60 degree350 degree in horizontal35 in vertical direction

APPLICATION AREAS

living roomkitchenbedroomretail store lightingclassroom lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

10w cob ceiling spotlight polar curve

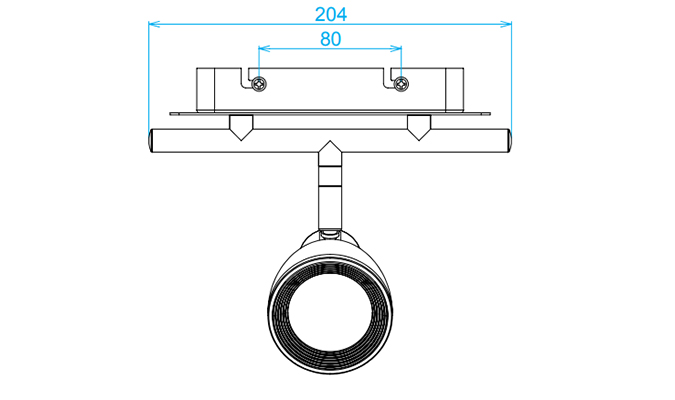

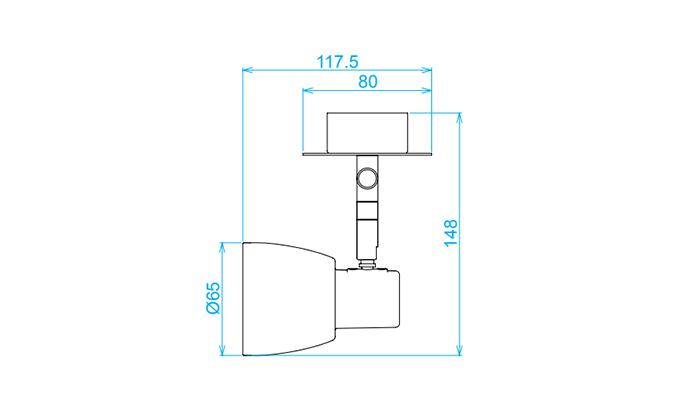

DIMENSION

ceiling track lighting led Dimensionsceiling track lighting fixtures sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC100-240V ≥0.9 750 24°/36°/45°/60° 2700K 40000h ≥80 No 204*117.5*148mm
10W AC100-240V ≥0.9 760 24°/36°/45°/60° 3000K 40000h ≥80 No 204*117.5*148mm
10W AC100-240V ≥0.9 800 24°/36°/45°/60° 4000K 40000h ≥80 No 204*117.5*148mm
10W AC100-240V ≥0.9 780 24°/36°/45°/60° 5000K 40000h ≥80 No 204*117.5*148mm
10W AC230V ≥0.9 690 24°/36°/45°/60° 2700K 40000h ≥80 Yes 204*117.5*148mm
10W AC230V ≥0.9 700 24°/36°/45°/60° 3000K 40000h ≥80 Yes 204*117.5*148mm
10W AC230V ≥0.9 740 24°/36°/45°/60° 4000K 40000h ≥80 Yes 204*117.5*148mm
10W AC230V ≥0.9 720 24°/36°/45°/60° 5000K 40000h ≥80 Yes 204*117.5*148mm
