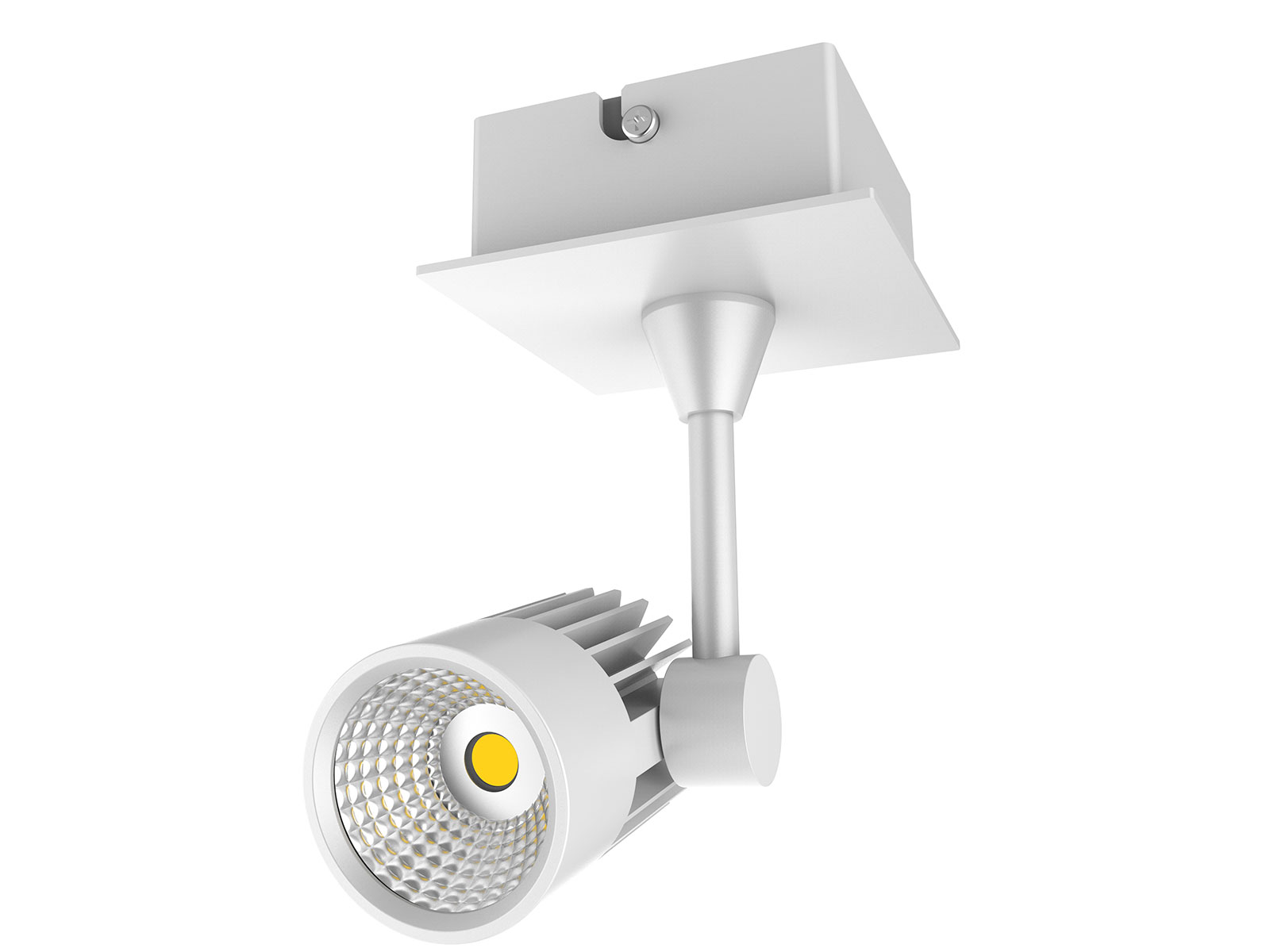

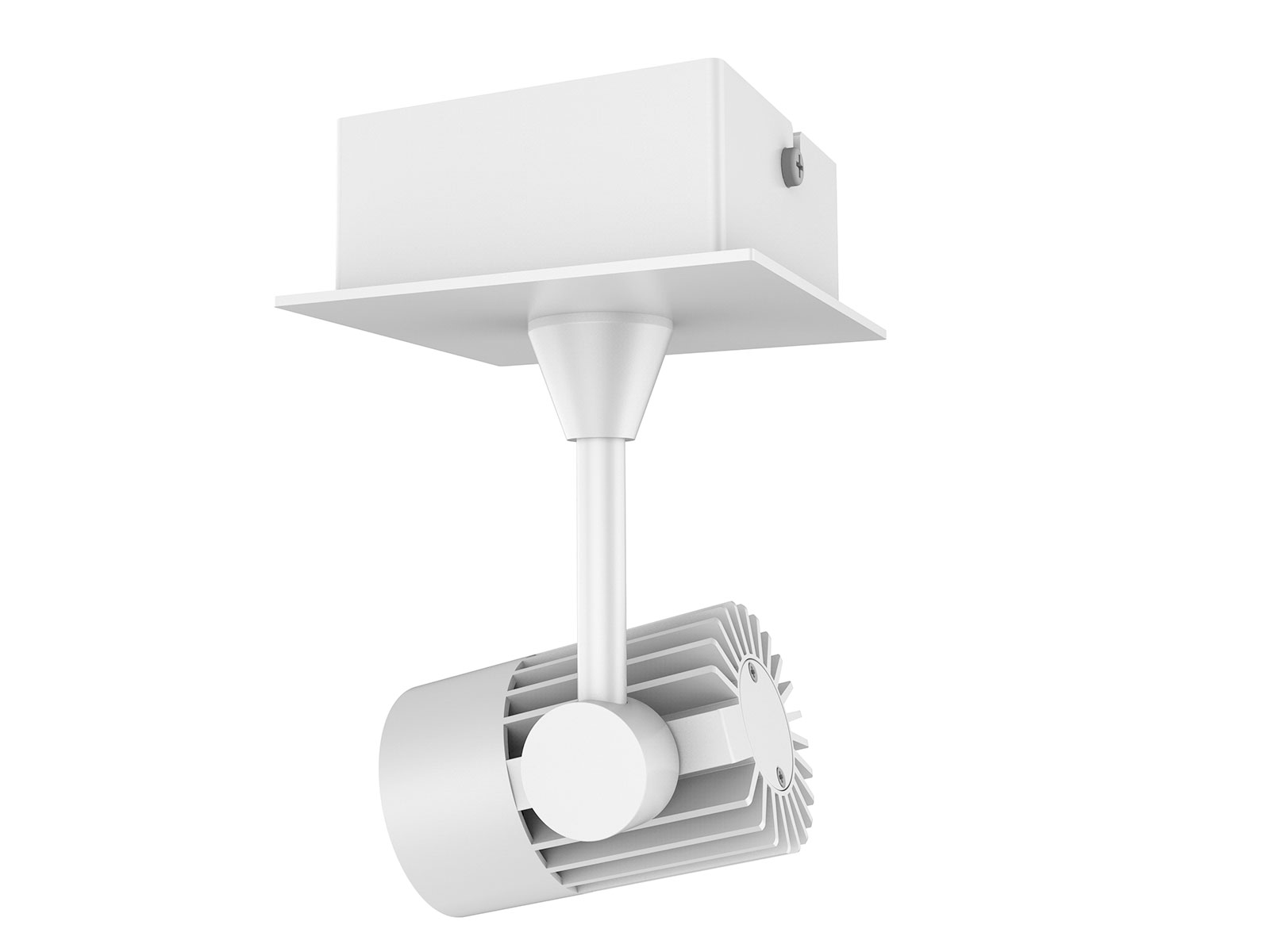

10Watts White Track Lighting

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 24° 36° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 24 degree36 degree beam angleeasy installation

APPLICATION AREAS

living roomsupermarket led lightingoffice lightingrestaurant lightinghotel lighting design

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

surface mounted track light polar chart

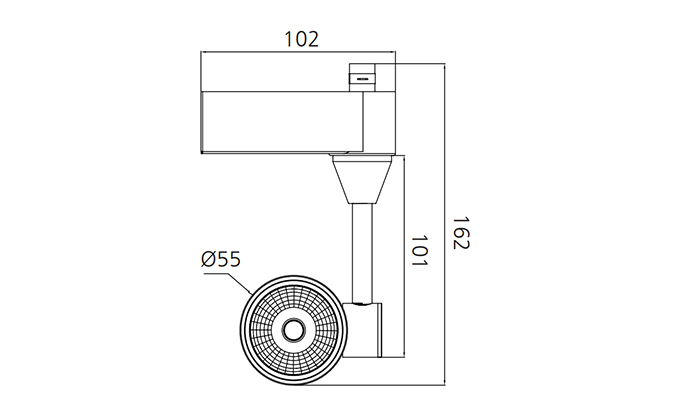

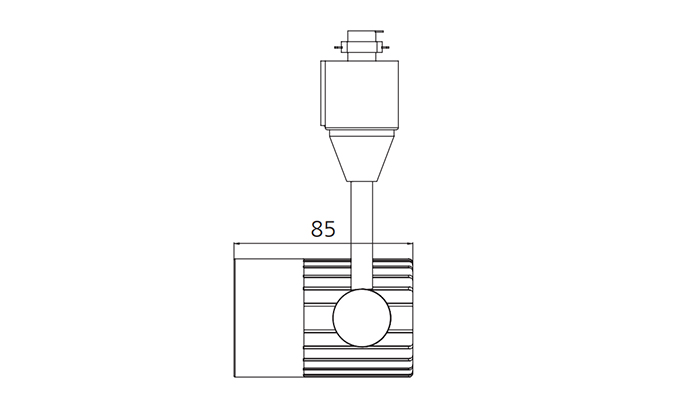

DIMENSION

recessed led track lightembedded led track lighting sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC230V ≥0.9 770 24°/36° 2700K 50,000h ≥80 Yes 162*102*85mm
10W AC230V ≥0.9 810 24°/36° 3000K 50,000h ≥80 Yes 162*102*85mm
10W AC230V ≥0.9 860 24°/36° 4000K 50,000h ≥80 Yes 162*102*85mm
10W AC230V ≥0.9 860 24°/36° 5000K 50,000h ≥80 Yes 162*102*85mm
