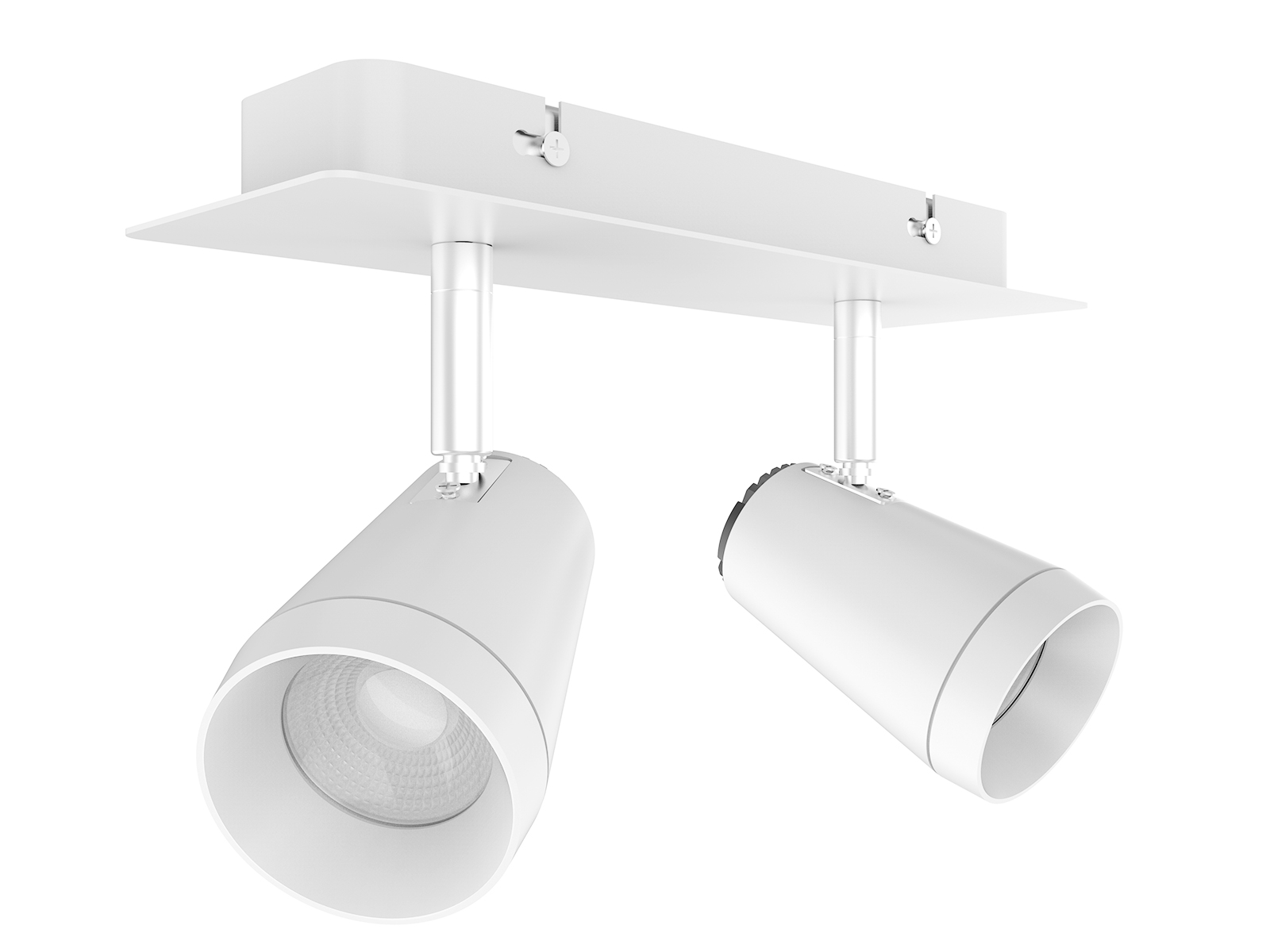

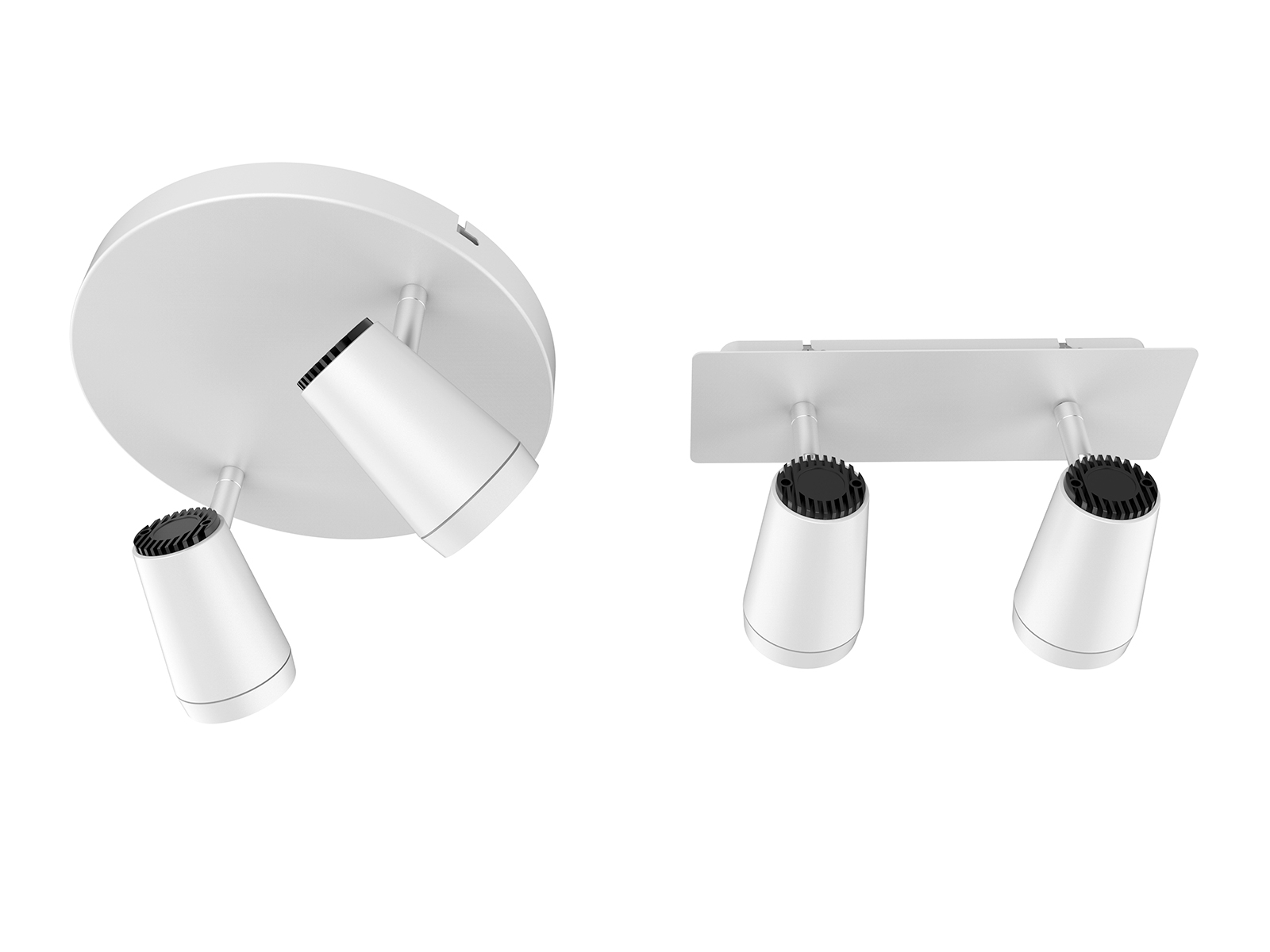

20W COB LED Track Rail Spotlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 36°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor36 degree beam angleled beam angle 60 degree340 degree adjustable lighting orientation90 degree adjustable lighting orientationvoltage AC100 240Vip20 rating

APPLICATION AREAS

retail store lightingrestaurant lightingoffice lightingsupermarket led lightinginterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

ceiling spotlight photometric data

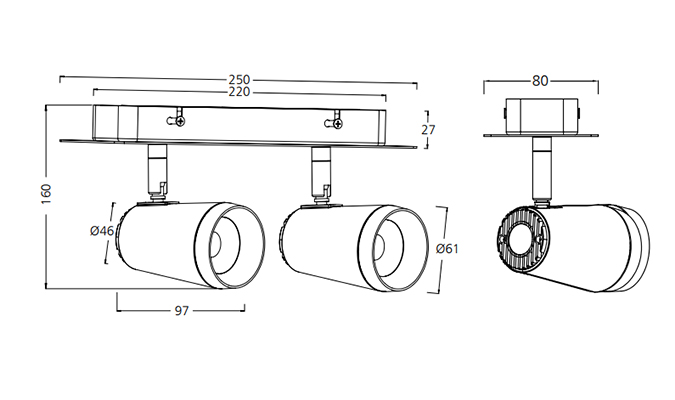

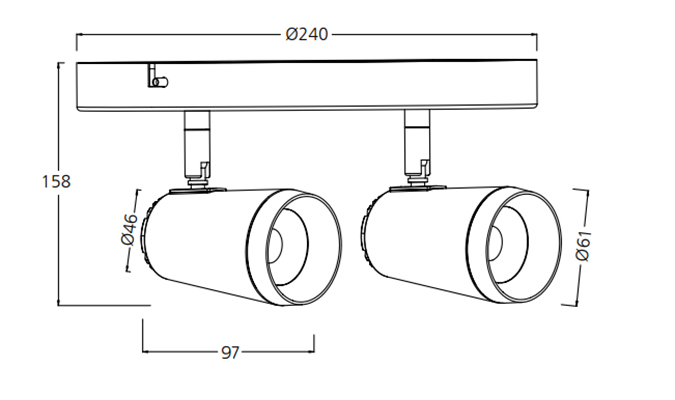

DIMENSION

ceiling spotlight Technical Specification20watts Dimensions Diagram

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable
20W AC100-240V ≥0.9 1840 36°/60° 2700K 40000h ≥80 No
20W AC100-240V ≥0.9  1980 36°/60° 3000K 40000h ≥80 No
20W AC100-240V ≥0.9 2080 36°/60° 4000K 40000h ≥80 No
20W AC100-240V ≥0.9 2100 36°/60° 5000K 40000h ≥80 No
20W AC230V ≥0.9 1900 36°/60° 2700K 40000h ≥80 Yes
20W AC230V ≥0.9 1910 36°/60° 3000K 40000h ≥80 Yes
20W AC230V ≥0.9 2020 36°/60° 4000K 40000h ≥80 Yes
20W AC230V ≥0.9 2110 36°/60° 5000K 40000h ≥80 Yes
