20W Commercial LED Track Spotlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 24°/36°/45°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 24 degree36 degree beam angle45 degree beam angleled beam angle 60 degree350 degree in horizontal35 in vertical direction

APPLICATION AREAS

living roomkitchenbedroomretail store lightingclassroom lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

20watts track spotlight polar curve

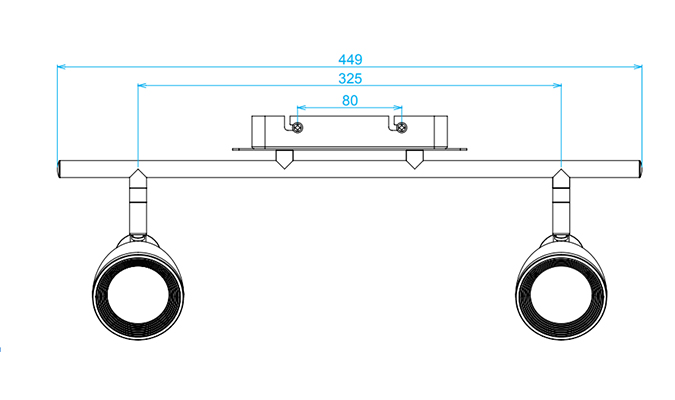

DIMENSION

led indoor spotlight fixture Dimensionsceiling mounted spot light sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
20W AC100-240V ≥0.9 1500 24°/36°/45°/60° 2700K 40000h ≥80 No 449*117.5*148mm
20W AC100-240V ≥0.9 1540 24°/36°/45°/60° 3000K 40000h ≥80 No 449*117.5*148mm
20W AC100-240V ≥0.9 1600 24°/36°/45°/60° 4000K 40000h ≥80 No 449*117.5*148mm
20W AC100-240V ≥0.9 1560 24°/36°/45°/60° 5000K 40000h ≥80 No 449*117.5*148mm
20W AC230V ≥0.9 1365 24°/36°/45°/60° 2700K 40000h ≥80 Yes 449*117.5*148mm
20W AC230V ≥0.9 1420 24°/36°/45°/60° 3000K 40000h ≥80 Yes 449*117.5*148mm
20W AC230V ≥0.9 1470 24°/36°/45°/60° 4000K 40000h ≥80 Yes 449*117.5*148mm
20W AC230V ≥0.9 1435 24°/36°/45°/60° 5000K 40000h ≥80 Yes 449*117.5*148mm
