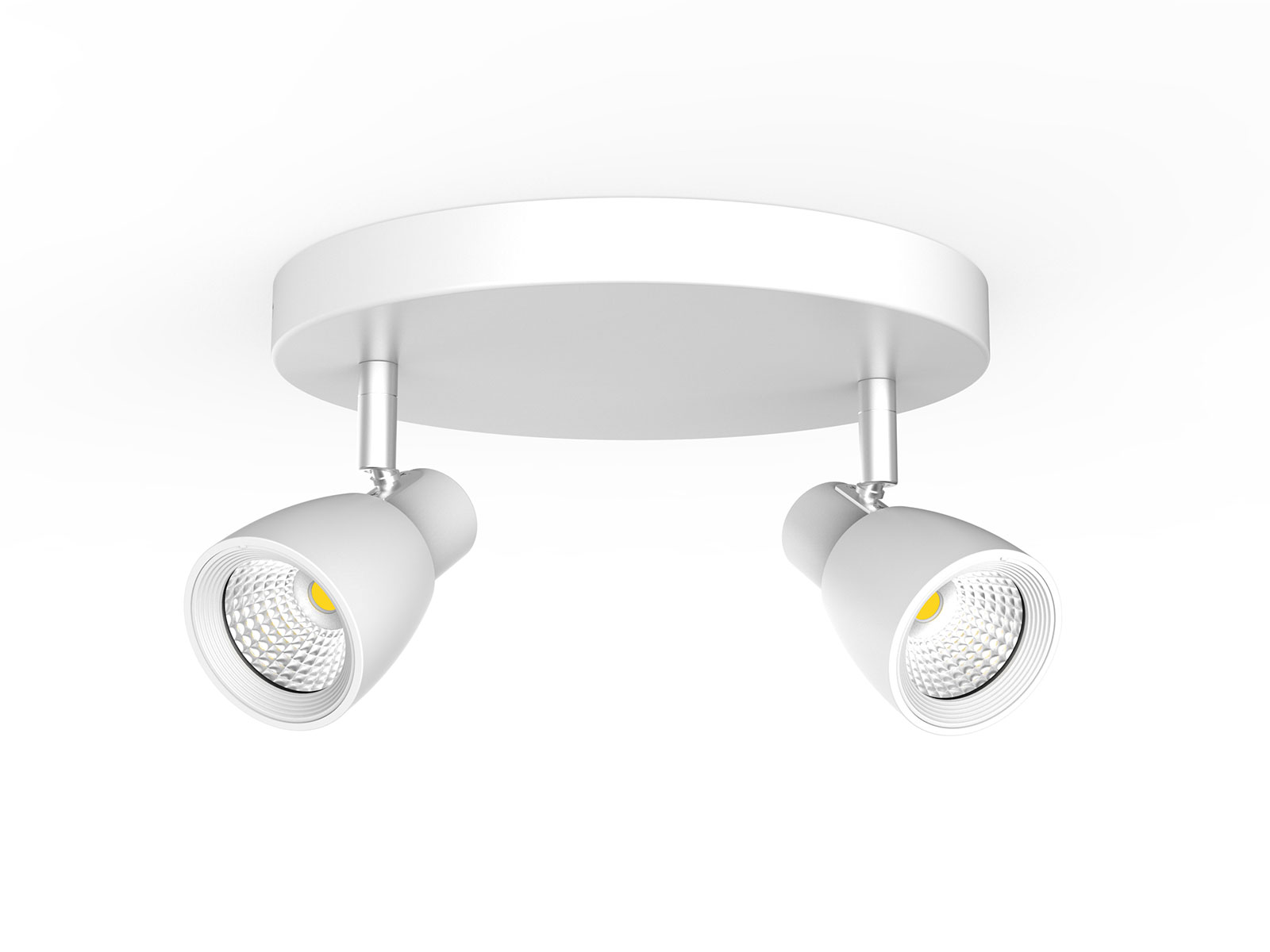

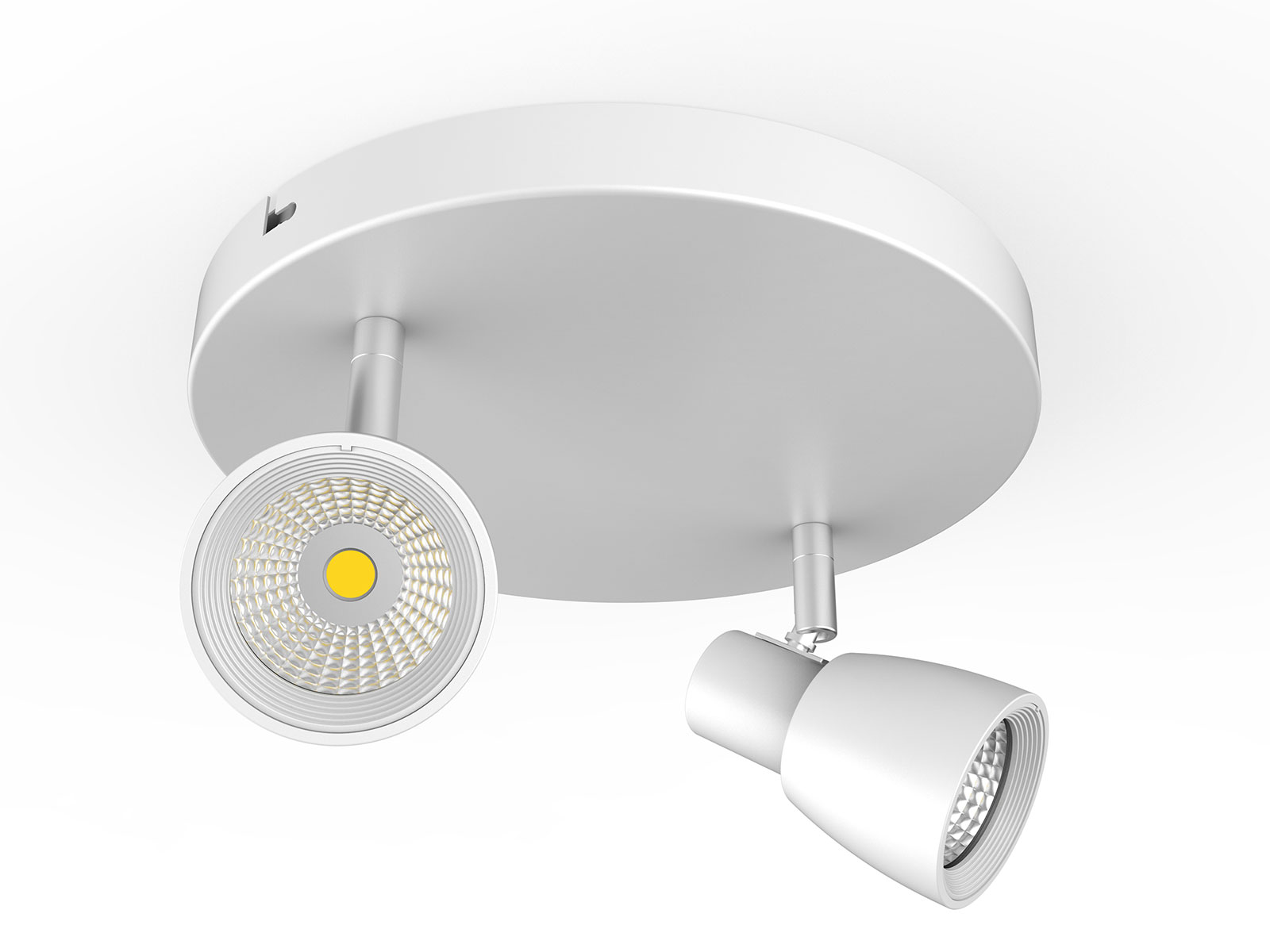

20W Two Head Track Spotlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 24°/36°/45°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor350 degree in horizontal35 in vertical directionip20 ratingvoltage AC100 240Veasy installation

APPLICATION AREAS

retail store lightingsupermarket led lightingrestaurant lightingliving roominterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

20watts photometric data

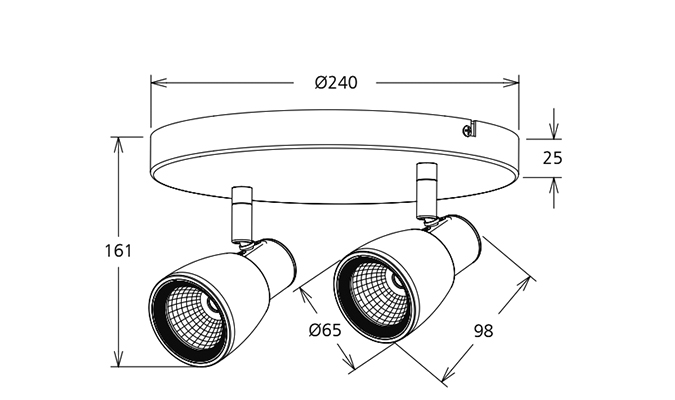

DIMENSION

20w Dimensions Diagram

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
20W AC100-240V ≥0.9 1500 36°/60° 2700K 40000h ≥80 No Ø240*161mm
20W AC100-240V ≥0.9  1540 36°/60° 3000K 40000h ≥80 No Ø240*161mm
20W AC100-240V ≥0.9 1600 36°/60° 4000K 40000h ≥80 No Ø240*161mm
20W AC100-240V ≥0.9 1560 36°/60° 5000K 40000h ≥80 No Ø240*161mm
20W AC230V ≥0.9 1365 36°/60° 2700K 40000h ≥80 Yes Ø240*161mm
20W AC230V ≥0.9 1420 36°/60° 3000K 40000h ≥80 Yes Ø240*161mm
20W AC230V ≥0.9 1470 36°/60° 4000K 40000h ≥80 Yes Ø240*161mm
20W AC230V ≥0.9 1435 36°/60° 5000K 40000h ≥80 Yes Ø240*161mm
