30W LED Track Light CE Rohs SAA

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 24°/36°/45°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor350 degree in horizontal35 in vertical directionip20 ratingvoltage AC100 240Veasy installation

APPLICATION AREAS

retail store lightingsupermarket led lightingrestaurant lightingliving roominterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

30w isolux diagram explanation

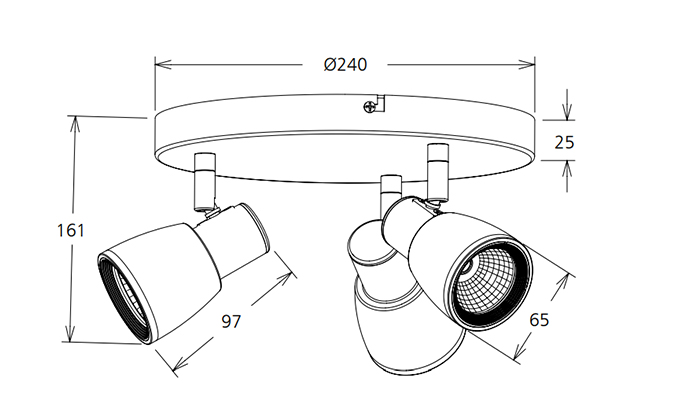

DIMENSION

led track light sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
30W AC100-240V ≥0.9 2250 36°/60° 2700K 40000h ≥80 No Ø240*161mm
30W AC100-240V ≥0.9  2300 36°/60° 3000K 40000h ≥80 No Ø240*161mm
30W AC100-240V ≥0.9 2400 36°/60° 4000K 40000h ≥80 No Ø240*161mm
30W AC100-240V ≥0.9 2350 36°/60° 5000K 40000h ≥80 No Ø240*161mm
30W AC230V ≥0.9 2070 36°/60° 2700K 40000h ≥80 Yes Ø240*161mm
30W AC230V ≥0.9 2115 36°/60° 3000K 40000h ≥80 Yes Ø240*161mm
30W AC230V ≥0.9 2200 36°/60° 4000K 40000h ≥80 Yes Ø240*161mm
30W AC230V ≥0.9 2160 36°/60° 5000K 40000h ≥80 Yes Ø240*161mm
