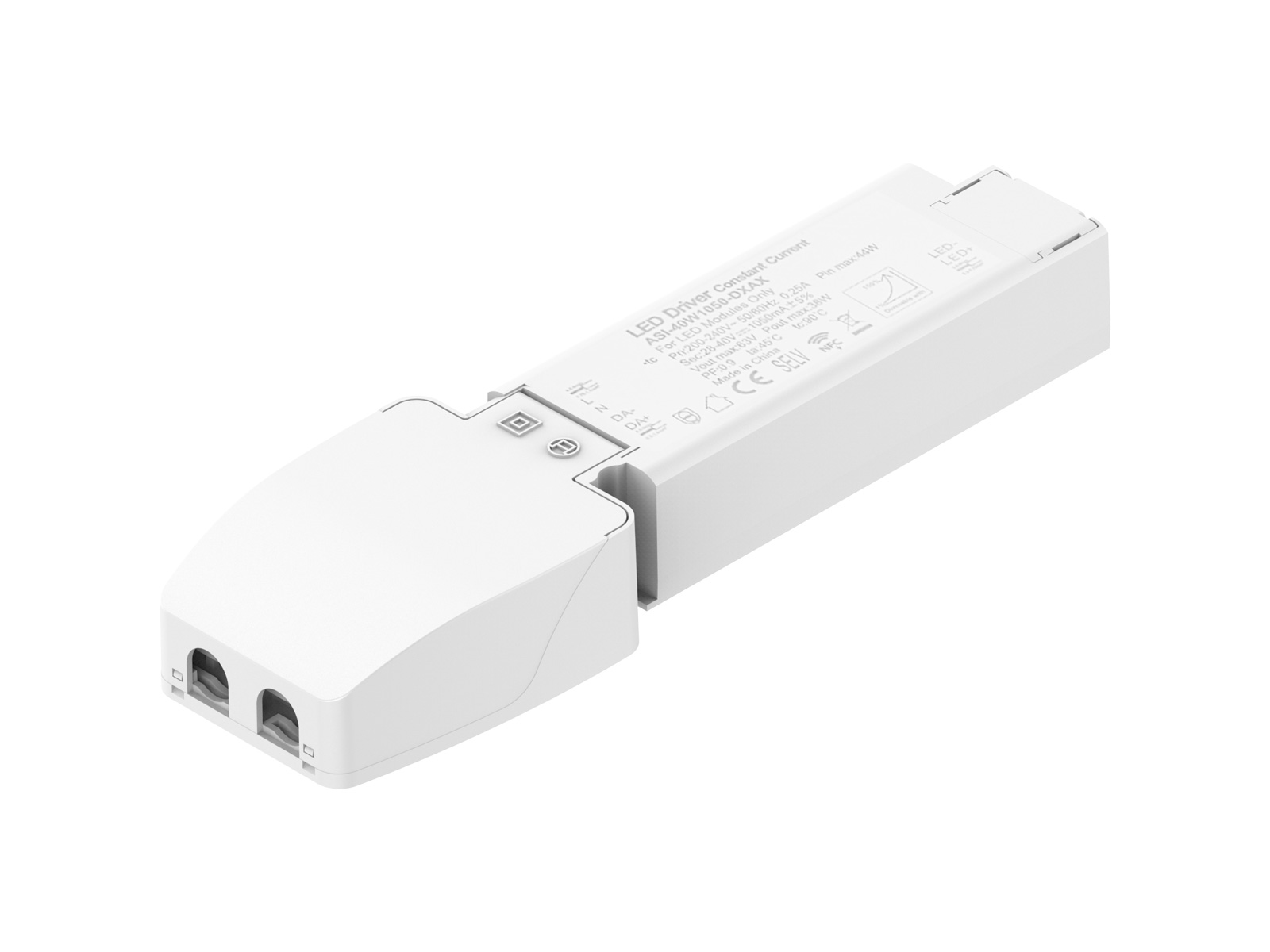

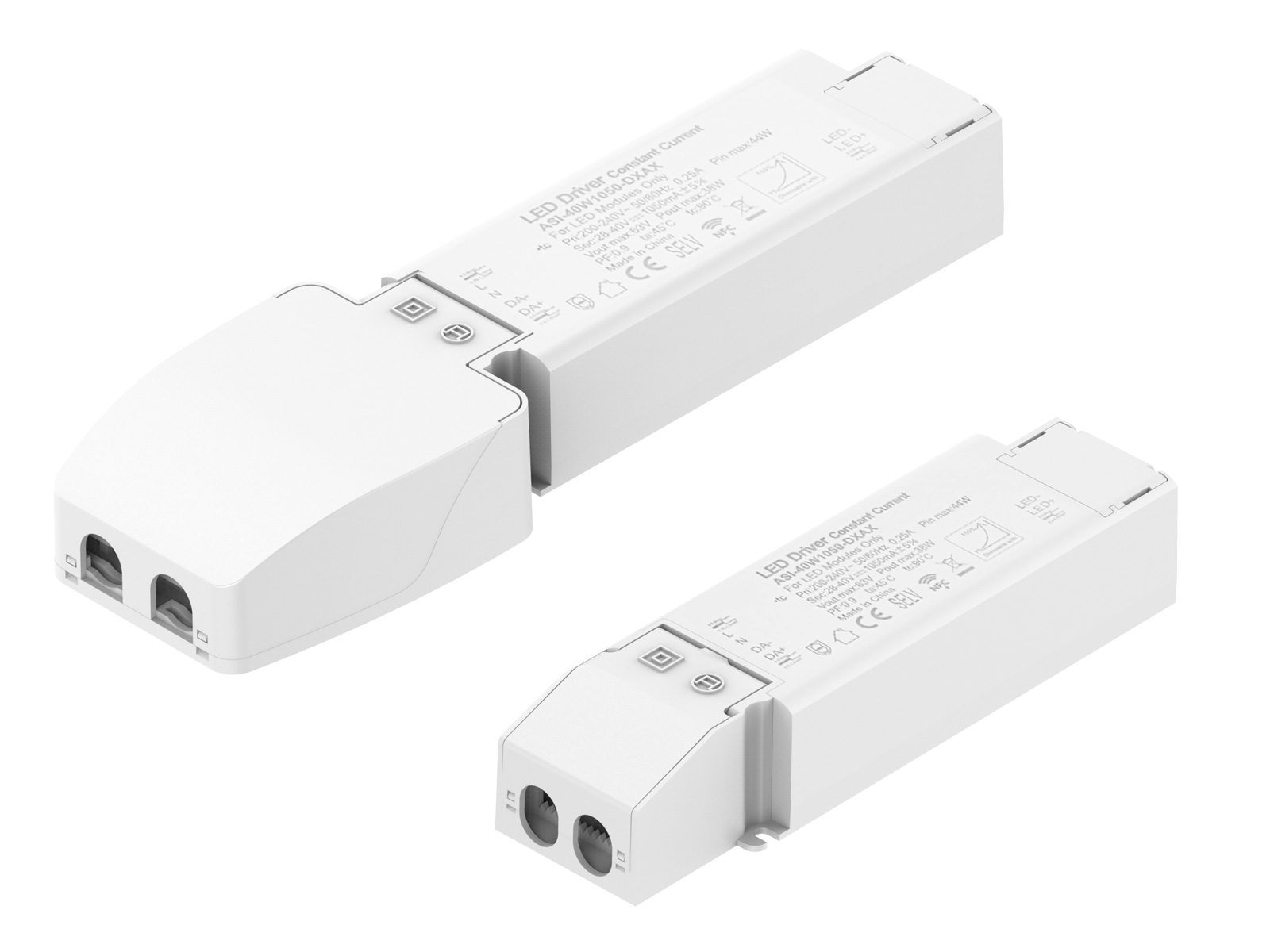

The DALI series led driver is with D4I and NFC function, which provides the best compromise between an attractive price and qualified performance. With a focus on application-related functions, the LED Driver range offers good quality and performance that ensures reliable operation of LED module.
Flicker free
External LED Driver, high PF, low THD
Specific, optimized output current and voltage
Idea circuit design resist luminarie flickering with voltage fluctuation.
Temperature protection as per EN / IEC61347
Nominal life-time up to 50,000h
DALI signal:16 bit Manchester Code Speed 1 % to 100 %
Support DALI-2+D4i dimming
Support EL emergency function
Supports NFC current regulation
Supports Constant light output (CLO)
Supports corridorDIM
Support luminaire data reading (DALI Part251)
Support energy data function and energy-reporting reading (DALI Part 252)
Support diagnostics-maintenance reading (DALI Part253)
| Driver Datasheet | ||
|---|---|---|
| Code | ASI-40W-1050-DXAX | |
| Input | Input POWER | 12-40W |
| Rated Input Voltage(V) | AC200-240V / DC200-240V | |
| Input Voltage(V) | AC180-264V / DC180-264V | |
| Frequency | 50/60Hz | |
| Input Current | ≤0.25A(AC) / ≤0.23A(DC) | |
| Rated Input Current | ≤0.23A(AC) / ≤0.2A(DC) | |
| Power Factor (typ) | 0.9 | |
| Total harmonic distortion(THD) | <10% @230Vfull load | |
| Efficiency (typ) | ≥86%(@230VAC full load) | |
| Inrush current (Typ.) | 26.1A | |
| Max circuit breaker | Please refer to" Circuit breaker Speicification" | |
| Leakage current | <0.5mA | |
| No load wattage | <1W @230V | |
| Output | Output Voltage range | 28-40V |
| Rated output current | 300-1050mA | |
| Line Regulation | ±5% | |
| Open circuit voltage (max) | 63V | |
| Setup time(note1) | <0.5s @230V | |
| Flickering Index(IEEEStd 1789) | 1%(NO RISK) | |
| IEC-PST | ≤1 | |
| CIE (SVM) | ≤0.4 | |
| Protection | Short circuit protection | Constant current limiting, recovers automatically after fault condition is removed |
| Over voltage protection | Shut down o/p voltage | |
| Over temperature protection | Shut down o/p voltage, recovers automatically after temperature goes down | |
| Environment | Ambient temperature range ta | -20…+55 °C |
| Maximum case temperature tc | 85°C (Measured on tc point indicated of the product label, tc not exceeded) | |
| Operating temperature | -20…+55 °C | |
| Storage temperature/humidity | -25…+85 °C; 5-95% RH | |
| Relative humidity | 5…85% | |
| Environmental rating | Indoor | |
| IP rating | IP20 | |
| Life time | >50,000H @25°C | |
| SAFFTY & EMC | Safety standards | IEC/EN61347-1, IEC/EN61347-2-13, IEC/EN62384 independent,GB19510.14,GB19510.1 approved |
| Withstand voltage | I/P-O/P:3.75KVac,<5mA 60S | |
| Isolation Resistance | I/P-FG: 500VDC, ≥4M Ω | |
| surge | IEC/EN61000-4-5(L-N:1KV) | |
| EMC Emission | IEC/EN55015, IEC/EN61000-3-2 | |
| EMC Immunity | IEC/EN61000-4-2,3,4,5,6,8,11; IEC/EN61547 | |
| Other | Dimension(L*W*H) | 153.4*42.9*30.5mm |
| Weight | 151g | |
